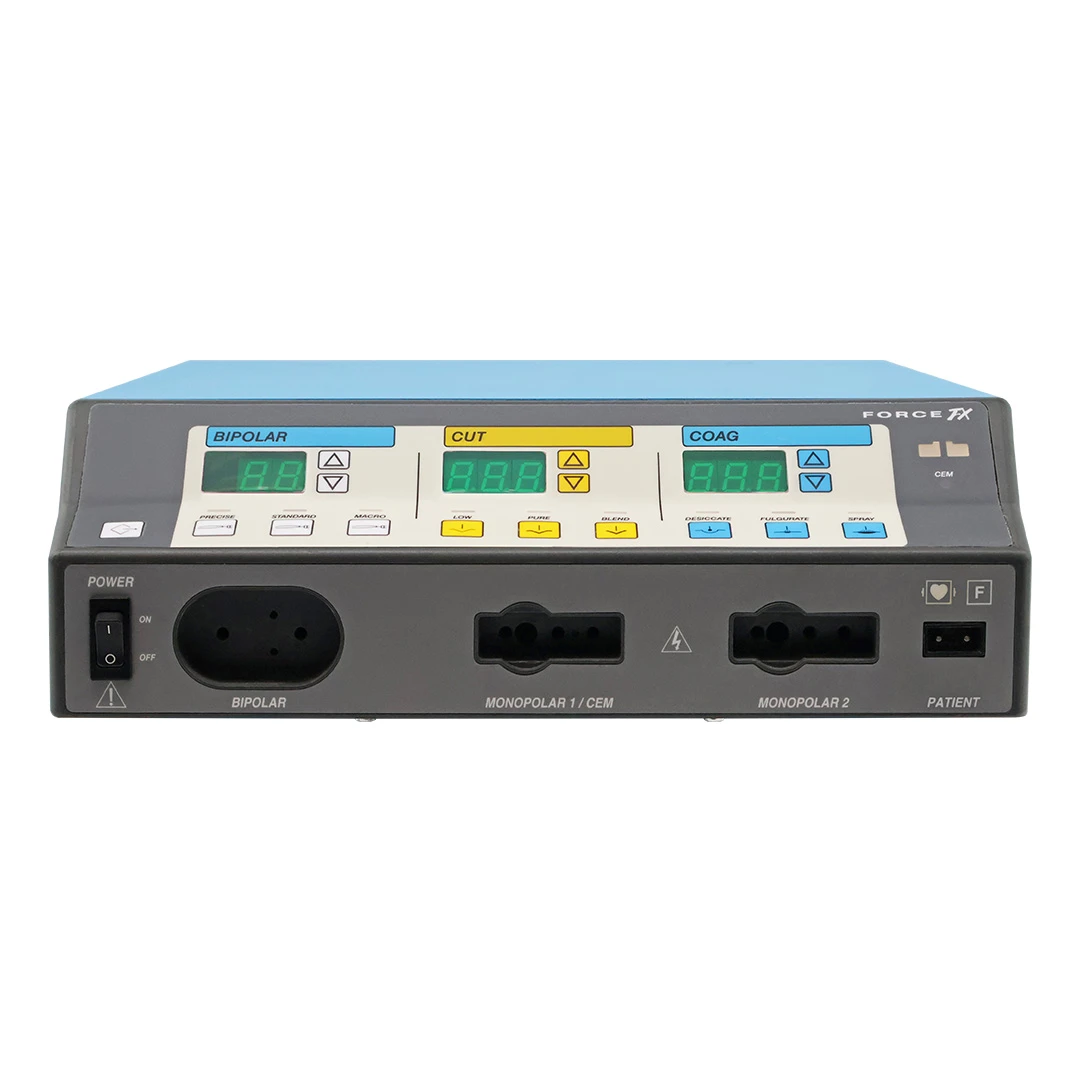

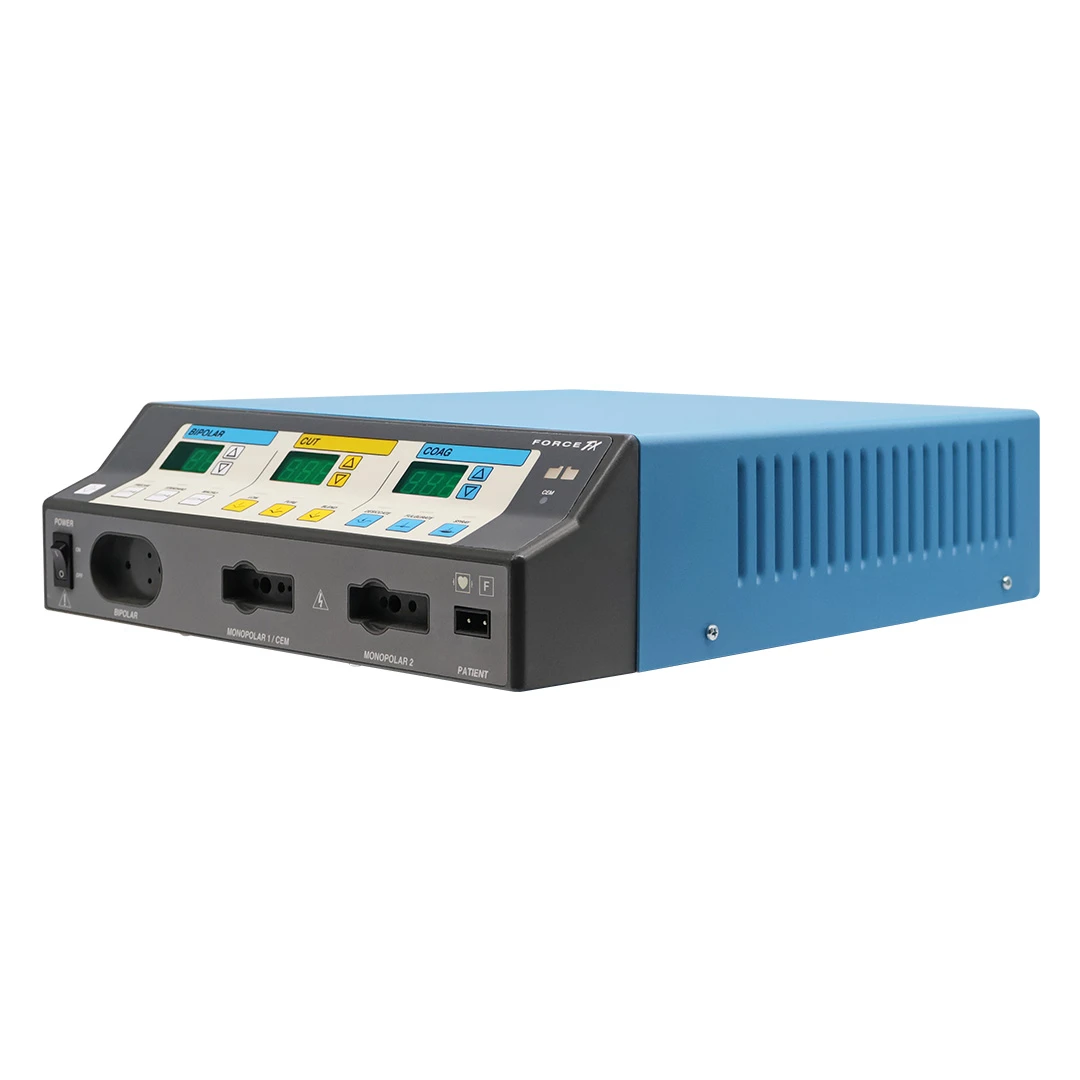

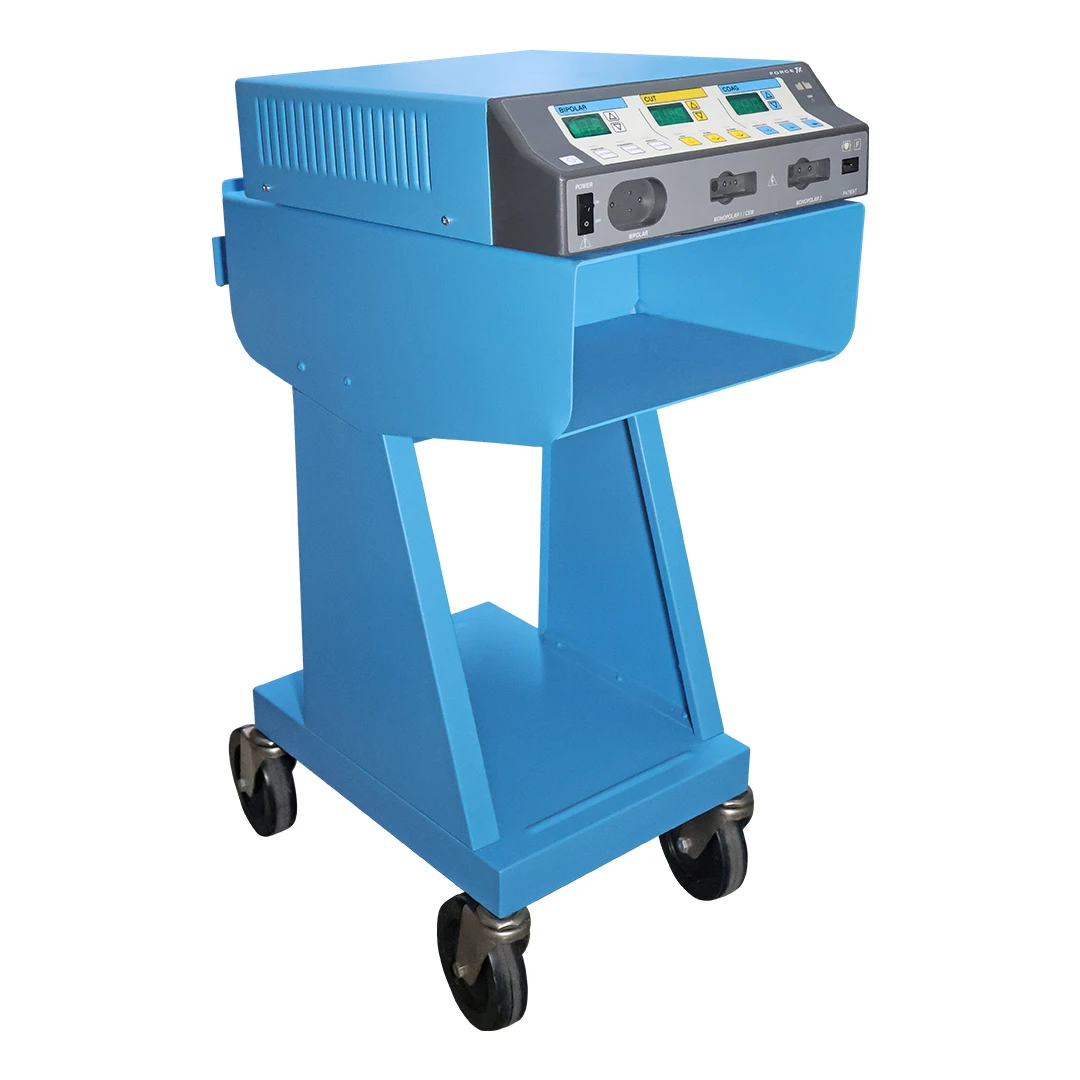

Covidien ValleyLab Force FX-C

Covidien Valleylab Force FX-C Specifications

Dimensions

• Height: 4.4 in ( 11.1 cm)
• Width: 14 in (35.6 cm)
• Depth: 18 in (45.7 cm)
• Weight: <18 lb. (<8.2 kg)

Maximum Output for Bipolar and Monopolar Modes

• Bipolar
  • Precise
    • Open Circuit P-P: 450 V
    • Rated Load: 100 Ω
    • Power: 70 W
    • Crest Factor: 1.5
  • Standard
    • Open Circuit P-P: 320 V
    • Rated Load: 100 Ω
    • Power: 70 W
    • Crest Factor: 1.5
  • Macro
    • Open Circuit P-P: 750 V
    • Rated Load: 100 Ω
    • Power: 70 W
    • Crest Factor: 1.5
• Monopolar Cut
  • Low
    • Open Circuit P-P: 1350 V
    • Rated Load: 300 Ω
    • Power: 300 W
    • Crest Factor: 1.5
  • Pure
    • Open Circuit P-P: 2300 V
    • Rated Load: 300 Ω
    • Power: 300 W
    • Crest Factor: 1.5
  • Blend
    • Open Circuit P-P: 3300 V
    • Rated Load: 300 Ω
    • Power: 200 W
    • Crest Factor: 2.5
• Monopolar Coag
  • Desiccate
    • Open Circuit P-P: 3500 V
    • Rated Load: 500 Ω
    • Power: 120 W
    • Crest Factor: 5
  • Fulgurate
    • Open Circuit P-P: 8500 V
    • Rated Load: 500 Ω
    • Power: 120 W
    • Crest Factor: 7
  • LCF Fulgurate
    • Open Circuit P-P: 6900 V
    • Rated Load: 500 Ω
    • Power: 120 W
    • Crest Factor: 5.5
  • Spray
    • Open Circuit P-P: 9000 V
    • Rated Load: 500 Ω
    • Power: 120 W
    • Crest Factor: 8

Maximum Output for Ultrasonic Electrosurgery

• Monopolar Cut
  • Low
    • Open Circuit P-P: 1000 V
    • Rated Load: 300 Ω
    • Power: 100 W
    • Crest Factor: 1.5
• Monopolar Coag
  • Desiccate
    • Open Circuit P-P: 3500 V
    • Rated Load: 500 Ω
    • Power: 70 W
    • Crest Factor: 5

Output Waveforms

• Bipolar
  • Precise: 470 kHz sinusoid
  • Standard: 470 kHz sinusoid
  • Macro: 470 kHz sinusoid
• Monopolar Cut
  • Low: 390 kHz sinusoid. Similar to the Pure cut mode except the maximum voltage is limited to a lower value.
  • Pure: 390 kHz sinusoid
  • Blend: 390 kHz bursts of sinusoid recurring at 27 k intervals; 50% duty cycle.
• Monopolar Coag
  • Desiccate: 240 kHz sinusoid repeated at 39 kHz; 8% duty cycle.
  • Fulgurate: 390 kHz damped sinusoidal bursts with a repetition frequency of 30 kHz into 500 ohms.
  • LCF Fulgurate: 390 kHz damped sinusoidal bursts with a repetition frequency of 57 kHz into 500 ohms.
  • Spray: 390 kHz damped sinusoidal bursts with a randomized repetition centered at 28 kHz. Frequencies include 21 kHz < f < 35 kHz. Output is further modulated by a random 250 Hz envelope with a variable duty cycle.

Low Frequency (50-60 Hz) Leakage Current

• Enclosure source current, ground open: <300 µA
• Source current, patient leads, all outputs
  • Normal polarity, intact ground: < 10 µA
  • Normal polarity, ground open: < 50 µA
  • Reverse polarity, ground open: < 50 µA
• Sink current at high line, all inputs: < 50µA

High Frequency (RF) Leakage Current

• Bipolar RF leakage current: <59.2 mA rms
• Monopolar RF leakage current (additional tolerance): <150 mA rms
• CEM output modes: < 150 mA rms at ð 50 W

REM Contact Quality Monitor

• Measurement Frequency: 80 kHz ± 10 kHz
• Measurement Current: <10 µA
• Acceptable Resistance Range
  • REM resistance measurements are ± 10% during RF activation and ± 5% when RF output is not activated.
  • REM patient return electrode: 5 to 135 ohms or up to a 40% increase in the initial measured contact resistance (whichever is less)
  • Patient return electrode without the REM safety feature (single section electrode): 0 to 20 ohms
  • If the measured resistance is outside the acceptable range(s) noted above, a REM fault condition occurs.

Internal Memory

• Nonvolatile, battery-backed RAM
  • Battery Type: 3v Lithium Button Cell
  • Battery Life: 5 Years
• Storage Capacity
  • One configuration, including three power settings and three mode settings.
  • The last twenty error codes detected by the generator.
  • The number of times and length of activation for each mode.
  • The average power setting used for each mode.
  • The total time the generator is on.
  • Other service-related information.

Serial Port

• RS-232 compatible; 9600 baud, 8 data bits, 1 stop bit, no parity
• The 9-pin connector supports the following signals
  • Pin 2 – isolated transmit (serial data output transmit line)
  • Pin 3 – isolated receive (serial data input receive line)
  • Pin 5 – isolated ground (reference for transmit and receive)

RF Activation Port

• The RF activation port is subminiature telephone jack attached to the contacts of a small relay. The contacts are closed when the output in energized and open at all other times. This port provides means to tell other equipment that RF current is being generated. This is useful when making EEG or ECG measurements.

Expansion Port

• The 15-pin connector supports the following signals
  • Pin 2 – isolated transmit (serial data output transmit line)
  • Pin 3 – isolated receive (serial data input receive line)
  • Pin 5 – isolated ground (reference for transmit and receive)
  • Pin 9 – RF disable: input signal which, when activated by an external device, disables active RF output
  • Pin 10 – RF current: output signal proportional to active RF current
  • Pin 11 – voltage: output signal proportional to active RF voltage

Operating Parameters

• Ambient Temperature Range: 50° to 104°F (10° to 40°C)
• Relative Humidity: 30% to 75%, non-condensing
• Atmospheric Pressure: 700 to 1060 millibars
• Warm-up time: If transported or stored at temperatures outside the operating temperature range, allow one hour for the generator to reach room temperature before use.

Transport and Storage

• Atmospheric Temperature range: -40° to 158°F (-40° to 70° C)
• Relative humidity: 10% to 100%, condensing
• Atmospheric Pressure: 500 to 1060 millibars
• Duration of Storage: If stored longer than one year, the battery must be replaced and a full checkout, including calibration, must be completed before use.
