Terumo Sarns Modular Perfusion System 8000
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included. Download Specifications
Terumo Sarns Modular Perfusion System 8000 Features
The Sarns Modular Perfusion System 8000 is a compact heart-lung machine commonly used in cardiac surgery. Equipped with Terumo’s proven technology, the cardiopulmonary bypass pump is designed with patient safety and user needs in mind. With improved versatility, adaptability, and customizability, the Perfusion System 8000 is well-suited to be used in the extracorporeal circulation of blood for arterial perfusion, regional perfusion, and cardiopulmonary bypass applications.
The Terumo Sarns Modular Perfusion System 8000 is a versatile and compact heart-lung machine designed for use in cardiac surgery. The modular design and built-in features of the System 8000 enable the platform to be configured for current and future needs in the field. The modular features of the System 8000 enable the cardiopulmonary bypass pump to be set up in a variety of configurations. The System 8000 is available in a four-pump or a five-pump base with an option for acquiring a built-in centrifugal pump. The Perfusion System 8000 can be configured based on new protocols and individual patient needs. The cardiopulmonary bypass pump’s flexibility enables the users to manage a specific case based on the definition of safety connection and responses, the utilization of the Central Control Monitor, and the implementation of the machine’s built-in Sarns capabilities. The heart-lung machine also features a state-of-the-art Central Control Monitor. The Central Control Monitor is a high-resolution touchscreen computer designed to be used as a safety monitor and the central interface for operating the machine.
- Modular design
- Four or five pump base
- Roller or centrifugal pumps

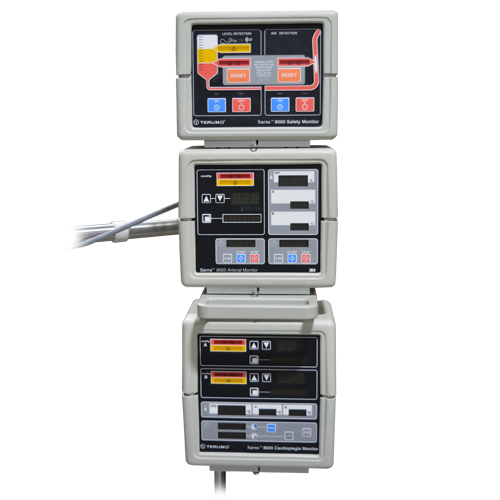

- Arterial and cardioplegia monitors for temperature, pressure, and timers
- Battery module
- Electronic venous occluder
- Pulse mode
- Communications module for data acquisition
Terumo Sarns Modular Perfusion System 8000 Specifications
Dimensions
- Telescope pole: 1.30” (3.3 cm) diameter, 6-7 feet (1.8 – 1.9 m) height
4-Pump Unit
- Height 25.8” (65.5 cm)
- Width 33.3” (84.5 cm)
- Depth 26.5” (67.3 cm)
- Weight 330 lbs (149.5 kg)
5-Pump Unit
- Height 25.8” (65.5 cm)
- Width 41.6” (105.6 cm)
- Depth 26.5” (67.3 cm)
- Weight 380 lbs (172.1 kg)
Pump / Roller
- Height 14” (35.6 cm)
- Width 8.2” (20.8 cm)
- Depth 19.7” (50 cm)
- Weight 50 lbs (22.6 kg)
Electrical Power Performance
- Leakage Current: <100 microamperes for 115 V and 100 V bases (fully loaded);<200
microamperes for 220-240 V bases (fully loaded). The maximum leakage
current for the base without pumps is 45 microamperes for all input voltages - Ground resistance: 0.1 ohms maximum for all bases
- Emergency power: 8000 system battery (two 12-volt, sealed gel cell batteries) will
power the arterial pump (operating in continuous mode), the monitors, occluder
and lamp for 40 minutes; when the arterial pump is operated in pulsatile mode or
the cardioplegia pump is also operating on battery power, the battery time available
will diminish to 25 minutes - The base is tested for high potential: 1200V~ for 100-115 VAC units; 1500V~ for
220-240 VAC units
Refurbished Terumo Sarns 8000 Heart-Lung Machine
Soma Tech Intl offers Refurbished Terumo Sarns 8000 Heart-Lung Machines up to 50% below OEM prices with the same service and warranty as new. The Terumo Sarns heart-lung machine is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the heart-lung machine it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on Terumo heart-lung machines. If necessary, parts are replaced to make sure that all aspects of the heart-lung machine are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Terumo Sarns 8000 heart-lung machine is working like new it undergoes a special cosmetic restoration process. The Terumo Sarns is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Sarns 8000 heart-lung machine is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Terumo Sarns 8000s contact soma at [email protected] or call us at 1-800-GET-SOMA.
Soma Tech Intl is also actively looking to purchase Terumo Sarns Heart-Lung Machines. If you or your facility is looking to sell your Terumo Sarns 8000, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Terumo Sarns 8000 Heart-Lung Machine to Soma Tech takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma Tech is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
