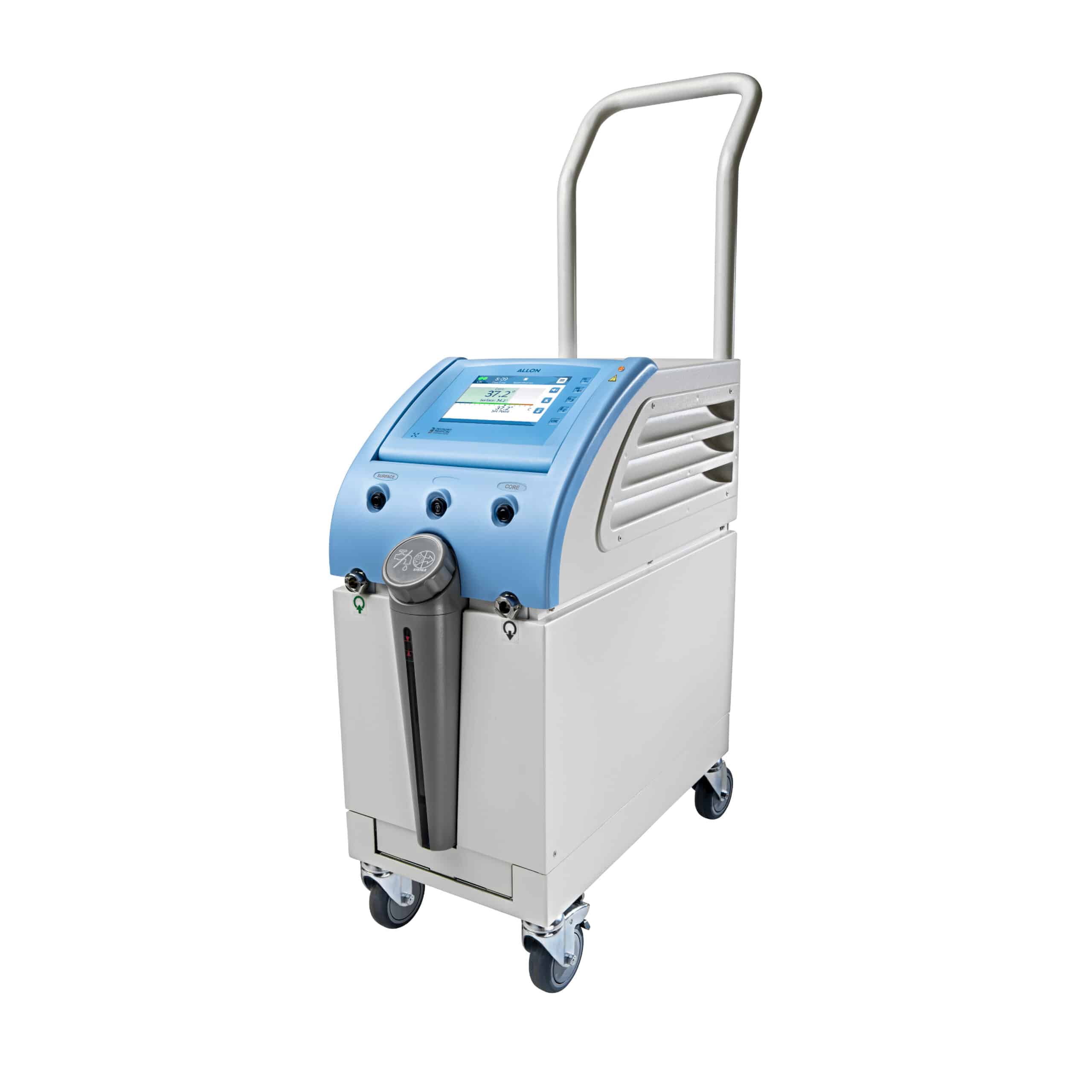

Belmont Medical Allon
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Belmont Medical Allon Features
The Belmont Medical Allon System is used for non-invasive patient temperature management during surgery and recovery. It maintains stable core body temperature with a water-based heat pump and a closed-loop circulation system that connects to a single-use ThermoWrap garment. The system helps prevent hypothermia or overheating without disturbing laminar airflow in the operating room.
- Full Perioperative Support: Controls patient temperature before, during, and after surgery for continuous care from admission through recovery.
- Conductive Warming System: Uses circulating water and Peltier heat exchangers instead of forced air, reducing the chance of airflow disruption and possible contamination.
- Dual Temperature Channels: Monitors both core and surface temperatures through two separate sensors for accurate readings.
- Touchscreen Display: 5.7-inch color screen shows real-time temperature graphs, system information, and control settings.
- ThermoWrap Garments: Single-use garments available in multiple sizes (Infant to Adult/Cardiac) cover up to 80% of the body without blocking surgical access.
- Automatic Temperature Control: Built-in algorithms adjust heating and cooling to maintain the set temperature range.
- Data Logging: CliniLogger function stores temperature and system data for later review.
Belmont Medical Allon Specifications
Dimensions
- Height: 37 in (94.0 cm)
- Width: 10.23 in (26.0 cm)
- Depth: 24.6 in (62.5 cm)
- Weight: 79 lbs (36 kg)
Power Supply
- Input Voltage (Model 2001 – 115V): 115 VAC, 50/60 Hz, 5.7 A
- Input Voltage (Model 2001 – 230V): 230 VAC, 50/60 Hz, 2.9 A
Performance & Temperature Control
- Water Temperature Range (Outflow): 55.4°F to 105.4°F (13°C to 40.8°C)
- Water Temperature Accuracy: ±0.4°F (±0.3°C)
- Patient Temperature Sensor Range: 59°F to 111.2°F (15°C to 44°C)
- Patient Temperature Accuracy: ±0.4°F (±0.3°C)
- Pump Flow Rate: 0.2 – 1.25 L/min
System Components
- Water Tank Capacity: 6 liters (1.6 gallons)
- Water Type: Sterile or 0.22-micron filtered tap water
- Display: 5.7-inch color LCD, 320 x 240 resolution
- Disposable Garment (ThermoWrap) Duration: Up to 28 hours
Refurbished Belmont Medical Allon Hyper / Hypothermia System
Soma Tech Intl offers the Belmont Medical Allon up to 50% below OEM prices with the same service and warranty as new. The hyper/hypothermia system is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Allon, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on thermal management systems. If necessary, parts are replaced to ensure that all aspects of the system meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer. Once the Allon is functioning like new, it undergoes a specialized cosmetic restoration. The unit is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the Belmont Medical Allon is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished hyper/hypothermia system, contact Soma at soma@somatechnology.com or call us at 1-800-438-7662.
Soma Tech Intl actively seeks to purchase hyper/hypothermia systems. If you or your facility are looking to sell your Belmont Medical Allon, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
