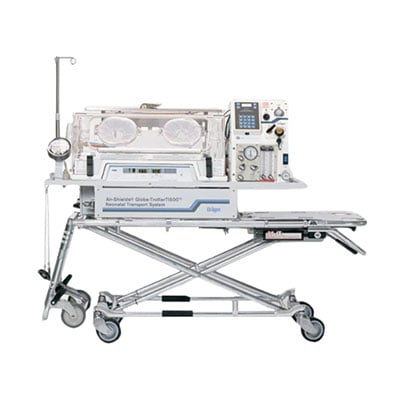

Drager Air-Shields TI500 Globe-Trotter Incubator

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Air-Shields TI500 Globe-Trotter Features

The Dräger TI500 Globe-Trotter® Neonatal Transport System combines all the technology of the Dräger TI500 Transport System with additional features for an improved level of care during transport.

Integrated ventilation support
The Dräger TI500 Globe-Trotter Neonatal Transport System is designed to transport infants in a thermally neutral environment and also provides integrated ventilatory support. Your system can be configured with ventilation and oxygen analyzers to meet the specific needs of each patient.

Front-mounted Controls
In addition to the incubator controls, all ventilator, tank gauges, and gas-related controls are front-mounted for
quick access and heightened visibility.

Auxiliary flow meter
An auxiliary flowmeter is standard on the system, with an additional hand circuit to allow manual resuscitation if necessary. This enables you to ventilate twins in one incubator.

Air compressor option
Of all the leading neonatal transport systems, the TI500 Globe-Trotter is the only one that has the option of an integrated air compressor. This allows you to deliver medical-grade air while eliminating the need to carry air tanks.

  • Double Wall.
  • Skin Temperature Probes.
  • Examination Lamp.
  • 2 Quiet Touch Port Doors and 2 Access Doors.
  • 1 Iris Port.

Air-Shields TI500 Globe-Trotter Features

Dimensions

  • Height: 50.8 cm 20″
  • Width: 52.7 cm, 20.6”
  • Length: 95.9 cm, 37.8”
  • Weight: 49.2 kgs, 108.5 lbs

O2 Control

  • Range: 21% to 58% min.

Humidity Capacity

  • 50% to 70%.

Noise Level

  • 60 dBA²

Temperature Set Range

  • 22°C to 38°C

Temperature Rise Time

  • < 30 minutes

Temperature Variability

  • < 1°C

Temperature Overshoot

  • < 2°C

Temperature Uniformity

  • < 1°C

Humidity Pad

  • Holds 400 ml (14 oz) sterile distilled water with no significant spillage for up to 45° tilt in either direction

Relative Humidity

  • 50% – 70% for 10-12 hours using a humidity pad

Displays

  • On/Standby: illuminates when “ON”. Power Mode: illuminates AC, DC, or external DC.
  • Baby Temperature: displays infant temperature.
  • Set Temperature: illuminates when changing set temperature.
  • Alarm indicators: high temp, power fail, sensor fault, heater temp., air flow, low DC.

Battery

  • Type: replaceable, 12 VDC, 24 AH gel-type battery.
  • Rating: The incubator maintains a differential of 25°C (77°F) between ambient and setpoint for 90
    minutes on 1 battery or 180 minutes on 2 batteries at full heater power.
  • Life Expectancy: 200 complete charge/discharge cycles minimum.
  • Charge time: 20 hours per battery from full discharge.
