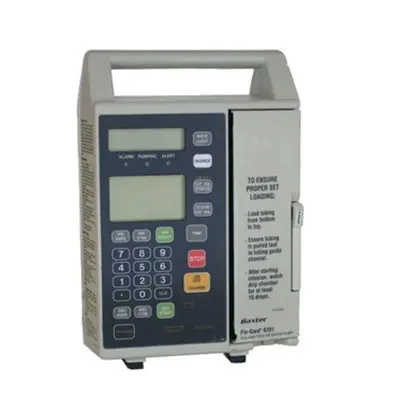

Baxter Flo-Gard 6201 Infusion Pump
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Baxter Flo-Gard 6201 Features
The Baxter Flo-Gard 6201 Single Channel Volumetric Infusion Pump is an electromechanical pump used for the intravenous infusion of liquids at user-selected rates. The Baxter Flo-Gard 6201 contains a linear peristaltic pump head which is programmable and permits infusion of primary and secondary medication programs. The secondary program automatically switches over to the primary program when the secondary infusion is complete (automatic piggybacking).
- Volumetric I.V. Pump
- Programmed delivery profile
- Incremental flow rate
- Automatic restart once occlusion clears
- Automatic piggybacking of secondary medications
Baxter 6201 Specifications
General
- Flow Rate Range 1 – 99.9 mL/hr in 0.1 mL/hr increments and 1 – 1,999
- VTBI Range mL/hr in 1 mL/hr increments
- Alarm Log Last 10 alarms
- Dimensions 20 cm W x 13 cm D x 29 cm H (8” x 5.1” x 11.4”)
- Weight 5.3 kg (11.6 lbs)
- Battery 12 volt, 2.0 ampere, sealed lead acid
- Battery Recharger 80% charged within 8 hours
- Battery Life 6 hours at 1,400 mL/hr
- Power Cord Biomed replaceable 2.9 m (9 feet)
- Leakage Current Less than 50 µA
- Fuse ½ ampere, 250 volt, slow-blow
- Communications Port RS232 serial port
- Power Requirements 115 VAC, 60 Hz, 30W
