Curlin 6000 CMS

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

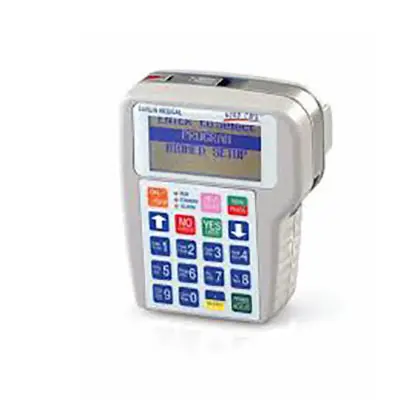

Curlin 6000 CMS Features

The Curlin 6000 CMS is a multi-therapy, electronic ambulatory infusion pump. that offers infusion for modes such as Continuous, PCA, PCEA, TPN, Intermittent, and Variable. The 6000 CMS offers flexibility where it can meet your needs for each use, along with providing reports and details from each use. The Curling is known for its dependability and reliable performance. The pump now offers new software that can reduce errors.

  • Improved display design with a larger brighter screen for ease of view and programming
  • Improved titrate performance and programming
  • New packaging design to increase reliability
  • Easier access to information through the “Information On Demand” feature

Curlin 6000 CMS Specifications


  • Size: 5.1” (13 cm) x 4.0” (10.2 cm) x 2.5” (6.4 cm)
  • Weight: 18.1 ounces (513 grams)
  • Display: 2.5” (6.3 cm) x 1.2” (3.1 cm) Continuous backlit with AC

Flow and Volume

  • Flow Rates: 0.1 – 400 mL/hr, increments of 0.1 mL/hr
  • Flow Rates: (PCA) 0.1 – 50 mL/hr IV, 25 mL/hr EPI, 5 mL/hr SQ Max
  • Volume Limits: 1.0 – 9,999 mL, increments of 0.1 mL
  • KVO Rates: 0.0 – 10 mL/hr (not available in PCA mode)
  • Units: mL, mg, mcg
  • Bolus Volume: 0.1 – 9.9 mL
  • Max # of Boluses: 15/hr
  • Patient Bolus: 0.1 – 9.9 mL/dose


  • Mechanism Curvilinear peristaltic pump action
  • Therapies Supported Continuous, PCA, TPN, Intermittent, Variable
  • Bolus Lockout 1 – 60 minutes, increments of 1 minute
  • Power Source 2 “C” alkaline batteries, AC, external rechargeable battery pack
  • Operating time (Fully charged batteries): Nominal 10 hrs. at 400 mL/hr, Nominal 30 hrs. at 125 mL/hr, Nominal 85 hrs. at 2 mL/hr
  • Alarms Air-in-line, high upstream pressure, occlusion upstream, occlusion downstream, door open, set not installed, unattended pump, replace set, empty battery
  • Adjustable Alarm Volume High / Med / Low / Silent
  • Data Log 6,000 events, including line pressure, volume infused, time
  • Security Unused therapies can be blocked out, four access levels, different lock box sizes
  • Software Protocol Library: multiple categories and potential for over 100 protocols
  • Administration Sets DEHP-free set configurations, needle-less injection sites, 0.22 and 1.2 micron filtered sets, yellow-striped epidural sets, sets with 15 0 mL integral fluid containers

Refurbished The Curlings 6000 CMS Infusion Pump

Soma Tech Intl offers the Curlings 6000 CMS Infusion Pumps up to 50% below OEM prices with the same service and warranty as new. The Curlings 6000 CM is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Curlings 6000 CM, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on infusion pumps. If necessary, parts are replaced to make sure that all aspects of the Curlings 6000 CM are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Curlings 6000 CM is working like new it undergoes a special cosmetic restoration process. The Curlings 6000 CM is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Curlings 6000 CM is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Curlings 6000 CM infusion pump contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase a Curlings 6000 CM If you or your facility is looking to sell your Curlings 6000 CM, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Curlings 6000 CM takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
