Orthoscan Tau 1512 Features

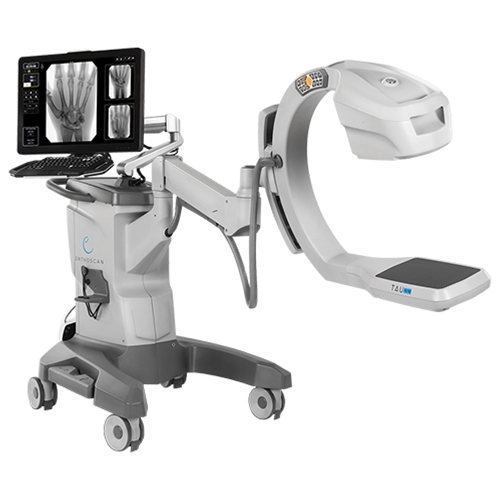

The Orthoscan Tau 1512 is a mini c-arm that features improved articulation, an advanced user interface, and intelligent dose reduction. It has a lightweight frame and a bright 24” monitor with a 12” x 9.5” live image. The Tau 1512 has additional bilateral backlit controls on the c-arm. The 1512 has a three-way brake control that allows you and your team to maneuver this system with ease down hallways and around corners.

  • 24” monitor with a resolution of 1920×1200.
  • Advanced touchscreen interface with anatomical selections and pediatric software.
  • 12” x 9.5” live image that helps to see fine details.
  • Simple storage methods and easy transportation.
  • Orbital rotation of 160° with an arc depth of 20”.
  • CMOS detector.

Orthoscan Tau 1512 Specifications

Dimensions (Overall)

  • Height: 48 in (122 cm)
  • Width: 29 in (73.7 cm)
  • Depth: 33 in (83.8 cm)
  • Weight: 475 lbs. (215.5 kg)

Mechanical

  • Orbital Rotation: 160°
  • Pivot Rotation: 430°
  • Lateral Rotation (Wig-wag): 320°
  • Vertical Range: 26.5” (67.3 cm)
  • Arc Depth: 20” (50.8 cm)

Detector

  • Type: CMOS detector
  • Detector resolution: 2 k x 1.5 k
  • Detector size: 15 cm x 12 cm
  • Useful array: 15 cm x 12 cm
  • Pixel spacing: 75 microns
  • Dose rate: AKR / DAP

X-Ray Generator

  • Focal spot: 42.5 microns
  • kV range: 40 – 78 kVp
  • mA range: 0.040 – 0.160 mA
  • Operating Mode: Continuous
  • Collimator: Fixed (normal, mag)

Monitor

  • Display Size: 24″ LCD
  • Primary “Live” Image: 12″ x 9.5″ (30.5 x 24.1 cm)
  • Dual Reference Image: 5″ x 4″ (12.7 x 10.2 cm)
  • Brightness: 575 cd / m2
  • Resolution: 1920 x 1200
  • Interface: DVI
  • Arm Horizontal Reach: 26″ (66 cm)
  • Arm Vertical Travel: 14″ (35.6 cm)
  • Arm Vertical Height: 19″ (48.3 cm)
  • Arm Lateral Rotation: 216° + 370° + 200°

Electrical

  • Input Power: 90-253 VAC @ 47-63 Hz
  • Sterile Field Controls: Bilateral

Documentation

  • Wireless Communication: Capable
  • SSD Capacity: 64GB
  • Image Capacity: 26,000
  • Video Capacity: 14.4min
  • Cine Loop Frame Rate: 30 fps
  • Adaptive Noise Suppression: Automatic
  • Manual Noise Suppression: 3 modes

Brakes and Wheels

  • Braking System: Lock, release, directional
  • Ground Clearance: 4″

Performance

  • Start-up Time: 60 sec
  • Shutdown Time: 20 sec

Software

  • Software: Orthotouch 2.0
  • Operating System: Windows 8.1 Embedded
