Axia Sb5 - 5 Movement Pain Management Table
Axia Sb5 Optional Cervical Top
Axia

Axia SB5

Add to quote
24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included. Download SpecificationsDownload Specifications

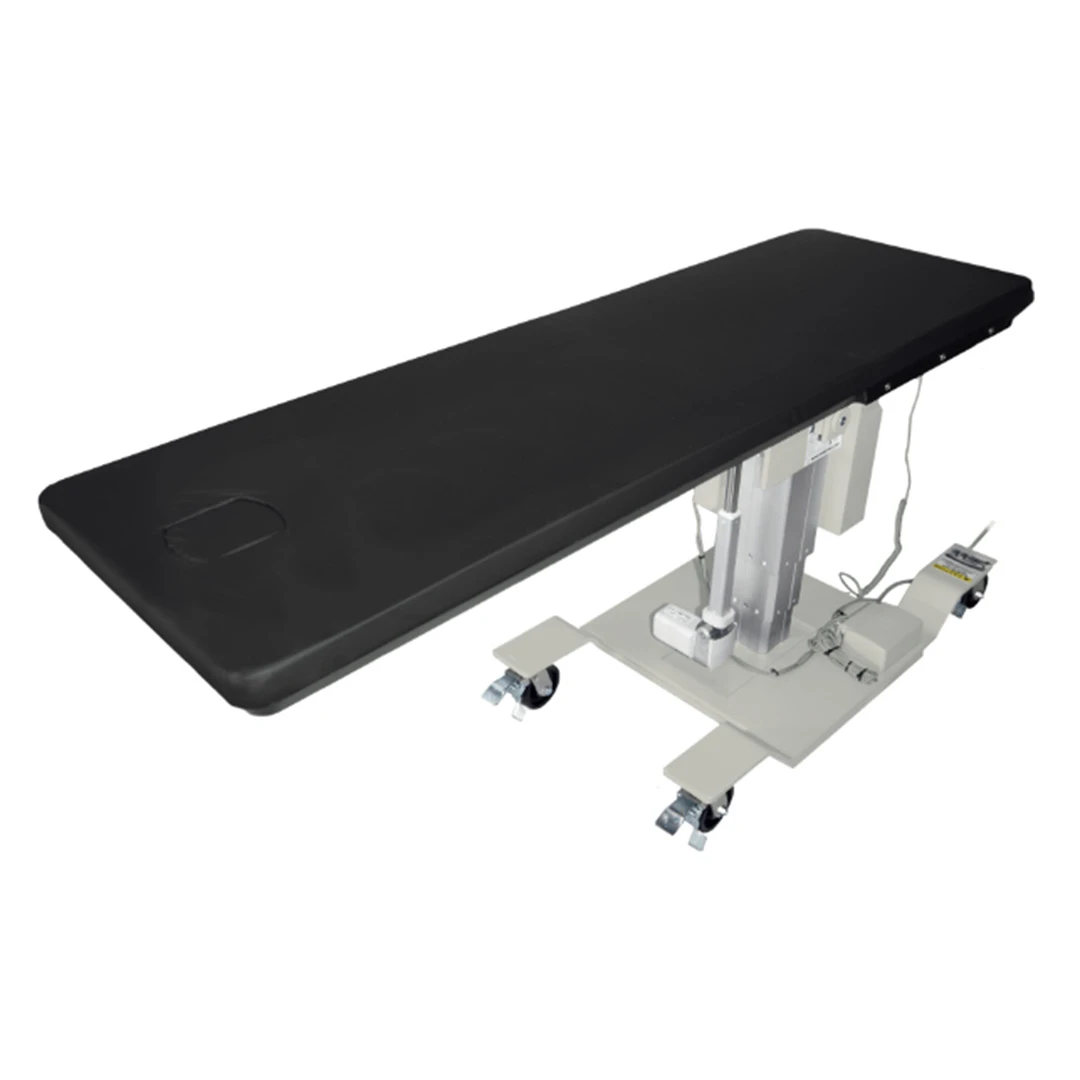

Axia SB5

The Axia SB5 pain management table is a five-movement imaging table designed to support a wide range of pain management and minimally invasive procedures. Built with a carbon fiber tabletop and a compact H-style base, the SB5 provides excellent C-arm access while maintaining stability across all patient positions. Its generous surface area and high weight capacity allow clinicians to work comfortably with a broad patient population, including bariatric cases. Smooth powered movements and a low minimum height help simplify patient positioning and transfers.

  • Five Powered Movements: Includes height adjustment, lateral tilt, Trendelenburg, longitudinal travel, and lateral travel.
  • Carbon Fiber Imaging Top: Radiolucent, diving-board style tabletop allows unobstructed C-arm access.
  • High Patient Capacity: Rated to support patients up to 500 lb., regardless of table position.
  • Large Patient Surface: An 84-inch by 24-inch tabletop accommodates taller patients and eliminates the need for arm boards.
  • Low Entry Height: Designed to make patient boarding easier and safer for both staff and patients.
  • Smooth Mobility and Locking: Full-swivel casters with reliable wheel locks allow easy repositioning within the procedure room.

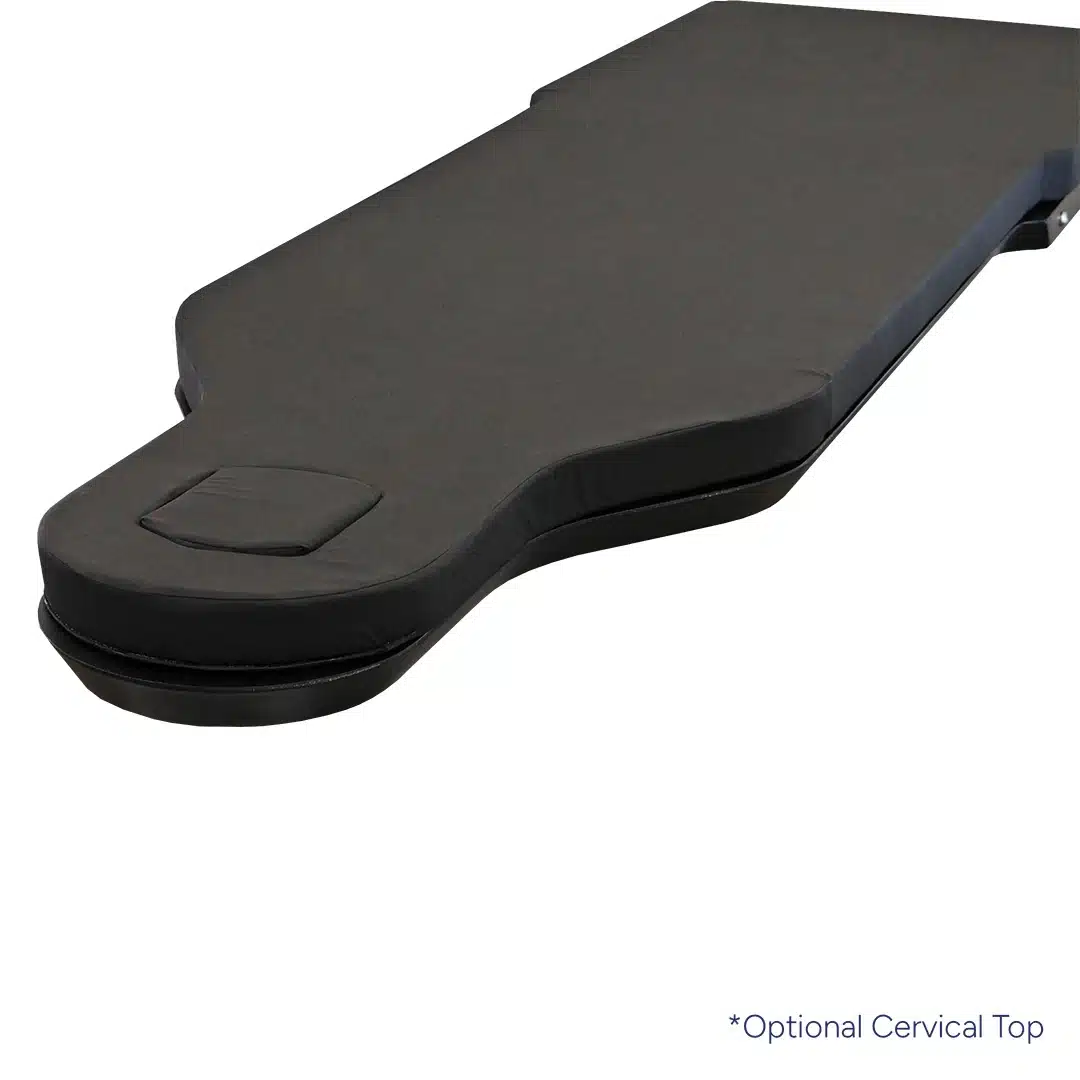

  • Optional Cervical Top Configuration: Available with an optional cervical top to support cervical spine and upper pain management procedures.

Axia SB5 Specifications

Tabletop Dimensions

  • Length: 84” (214.4 cm)
  • Width: 24” (61 cm)
  • Thickness: 1.62″ (4.1 cm)

Radiolucent Dimensions

  • Length: 56” (142.2 cm)
  • Width: 24” (61cm)

Table Dimensions

  • Length: 86” (218.4 cm)
  • Width: 26” (66 cm)

Weight

  • Table Weight: 840 lb. (381 kg)
  • Patient Capacity: 500 lb. (227 kg)

Table Movements

  • Height: 33.5” to 43.5” (85 to 110.5 cm)
  • Lateral Tilt: ( + / – ) 17º
  • Trendelenburg: 13º
  • Longitudinal Travel: 10” (+/- 5 “)
  • Lateral Travel: 10” (+/- 5 “)

General

  • Mattress Thickness: 2″ (5 cm)
  • Tabletop / Mattress Attenuation: 1.6mm Al. (+/-.2mm tolerance)
  • Tabletop Material: Carbon fiber skin/foam core with integral facial cut-out
  • Casters: 5″ casters with full swivel and wheel lock
  • Steel Base: H-Shaped with epoxy finish
  • Hand Control: Activates all motions
  • Patient Straps: 2

Power

  • 120V/60HZ or 230V/50HZ
  • Protect product from moisture
  • Allowable Storage & Operating Humidity: 0-92%
  • Allowable Storage Temperature: 32°F to 104°F (0°C to 40°C)
  • Allowable Operating Temperature: up to 104°F (40°C)
