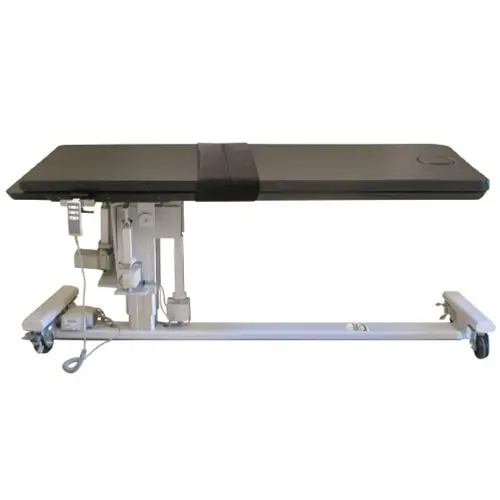

Axia SL1 Imaging Table
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Axia SL1 Imaging Table Features
The Axia SL1 was designed for high patient throughput for surgery centers, pain management, and other multidisciplinary medical facilities. The SL1 is a mobile imaging table that is intended to support a 500-pound patient. This Axia imaging table is intended to be used with mobile X-rays for minimally invasive procedures. This table is available with 2 different styles of table tops; standard and cervical. The cervical top is 22 inches wide with a fully adjustable headrest.
- Carbon fiber, diving board style for easy C-arm access
- Adjustable height 28″ – 38″
- Large patient capacity – high-end actuator motor supports 500-pound loads
- An 84″ length can accommodate even the tallest of patients
- A 24″ top eliminates the need for armboards
- Two-inch thick, high-quality patient comfort pad
- Facial cut-out for prone procedures
- Available with a standard or cervical top
Axia SL1 Imaging Table Specifications
Dimensions
- Height (Adjustable): 28 – 38 In (71.1 – 96.5 cm)
- Width: 24 In (61 cm)
- Length: 86 In (218.4 cm)
- Weight: 375 lbs (170 kg)
Tabletop
- Height: 2 In (5 cm)
- Width: 24 In (61 cm)
- Length: 84 In (213.4 cm)
- Material: Carbon fiber skin/foam core with integral facial cut-out
Radiolucent Area
- Width: 24 In (61 cm)
- Length: 56 In (142.2 cm)
General
- Hand Control: Activates all motions
- Base: I-Shaped with Epoxy Finish
- Castors: 5 In (12.7 cm) with full swivel & wheel lock
- Patient Straps: 2
