GE CIC Pro Clinical Information Center
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
GE CIC Pro Features

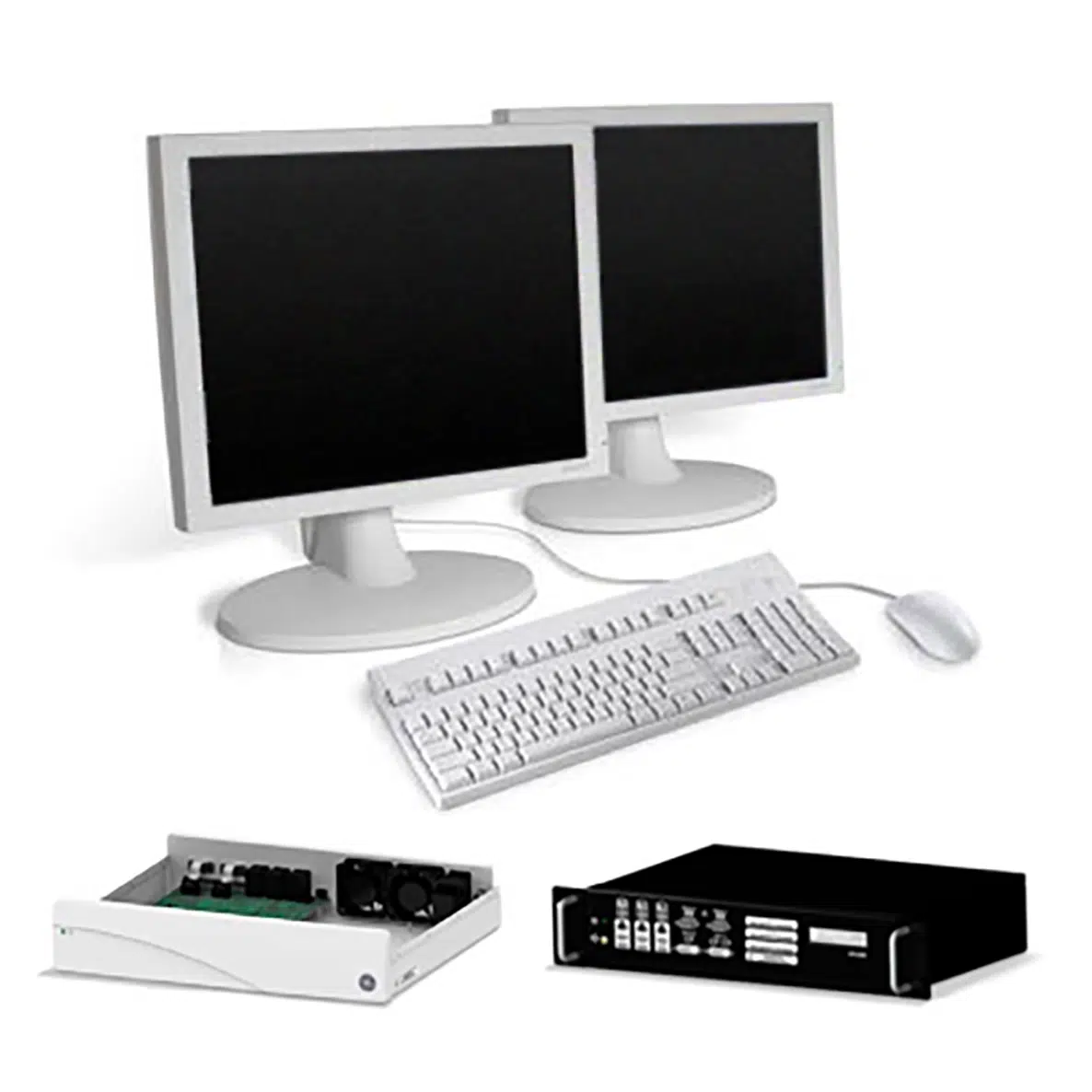

The GE CIC Pro Clinical Information Center is a central station that pulls patient data from bedside and telemetry monitors onto one screen. Staff can watch live waveforms for up to 16 patients at once, admit and discharge patients, and manage alarms right from the station. It also stores up to 72 hours of full disclosure waveforms and trends, so clinicians can look back at what led up to an alarm. An optional second display lets users work on charting tasks without losing the live patient view, and a single mouse and keyboard can run up to eight screens. The system runs on a desktop or rack-mount server and connects to the Carescape Network.
- Multi-Patient Viewing: Shows live waveforms and numerics for up to 16 patients on one screen.
- Admit, Discharge, and Alarms: Lets staff admit and discharge patients and manage alarms from the station.
- 72-Hour Full Disclosure: Stores waveforms, parameters, and alarms for review, with 1, 24, 48, or 72 hour options.
- Trends and Event History: Graphs up to 12 parameters and sorts events by time and type.
- Second Display Support: An optional extra screen handles admits, discharges, and history review without interrupting the live view.
GE CIC Pro Specifications
MP100D Desktop Server Dimensions
- Height: 3.2 in (8.0 cm)
- Width: 16.2 in (41.0 cm)
- Depth: 13.0 in (33.0 cm)
- Weight: 14.5 lb (6.6 kg)
- Mounting: Horizontal desktop, vertical (with optional stand), or wall mount
MP100R Rack-Mount Server Dimensions
- Height: 3.5 in (8.8 cm), excluding rubber feet
- Width: 15.7 in (40.0 cm) without rack-mounting flanges; 19.0 in (48.3 cm) with flanges
- Depth: 10.9 in (27.6 cm)
- Weight: 12.3 lb (5.6 kg)
- Mounting: 19 in rack-mount, horizontal desktop, or wall mount
Monitoring Capacity
- Number of Patients: 1 to 16 in standard display format (1 to 17 in “view patient” format)
- Waveform Display: Up to four waveforms per patient, 16 maximum; up to 11 seconds of waveform shown
- Real-Time Trends: One-hour trend of up to two parameters, including atrial fibrillation trending
- Graphic Trends: Up to 12 parameters in up to 12 standard or user-defined groupings
- Full Disclosure Storage: 12 waveforms and all parameters for 1 hour; 24, 48, and 72 hour options available
- Full Disclosure Review: Up to 5 waveforms (ECG, IBP, SpO2, respiration) viewable at once
Alarms
- Patient Alarms: 4 configurable levels (crisis, warning, advisory, message)
- System Alarms: 3 levels (warning, advisory, message)
- Alarm Silence: Silences current patient alarms for 1 minute
- Visual and audible alarm notification with configurable alarm limits for select parameters
Display
- Recommended Display Size: 19 in minimum
- Resolution: 1280 x 1024 @ 60 Hz
- Display Connections: VGA or DVI
- Secondary Display: Optional second display for admitting, discharging, and reviewing patient history without interrupting live monitoring
- Touch Screen: Optional (GE CDA19T 19 in medical grade color LCD)
- Remote View: Video output can be split to up to four remote displays, up to 800 ft (315 m) away
Computer Hardware
- Processor: 1.2 GHz Mobile Core Duo (minimum)
- Memory: 1 GB DDR2 SDRAM (minimum)
- Storage: 8 GB solid-state drive and 120 GB hard drive (minimum)
- Operating System: Microsoft Windows XP Embedded with Service Pack 2
- Audio: Dual-redundant internal speakers
- Controls: USB keyboard and USB optical mouse; one mouse and keyboard can control up to 8 displays
Network & Connectivity
- Connects to CARESCAPE Network MC real-time monitoring network
- Connects to CARESCAPE Network IX hospital enterprise network
- Patient Data Server (PDS) connectivity for patient trends and histories
- Aware Gateway connectivity to pull patient demographics from the hospital system
- Access to web-based applications (such as MUSE Web) and Citrix servers
- Optional Printing: 2 in external digital writer or laser printer
Refurbished GE CIC Pro
Soma Tech Intl offers the GE CIC Pro Central Station up to 50% below OEM prices, with the same service and warranty as new equipment. This system goes through both technical and cosmetic refurbishment so it performs and looks like new. During the refurbishment of the CIC Pro, our in-house biomedical engineers, who are trained and certified to work on central stations, carefully inspect and test the unit and replace components as needed so every aspect of the system meets the original manufacturer’s engineering specifications. Once it’s fully operational, the CIC Pro moves into a detailed cosmetic restoration process: thorough cleaning, correction of minor scratches and dents, surface refinishing where needed, and decal replacement if required. After all of that, it functions and presents like new.
Soma Tech Intl is ISO 13485:2016 certified, so strict quality control standards apply to every piece of capital medical equipment we sell. Before the GE CIC Pro is labeled patient-ready and prepared for shipment, it goes through a final quality assurance inspection to confirm proper operation and performance.
Soma Tech Intl’s procurement team is also always looking to purchase GE CIC Pro central stations and other used GE patient monitoring equipment. If your facility has a CIC Pro or similar model to sell, get in touch and our purchasing department will walk you through the process from start to finish. Selling directly to Soma cuts out the middleman, so your facility gets the best possible value for its used or pre-owned equipment. We’re 100% HIPAA compliant as well, meaning your equipment arrives at our facility in the same condition it left yours. Soma also offers trade-in credit, so if you have a CIC Pro or any other used medical equipment to sell, just send us a message.
