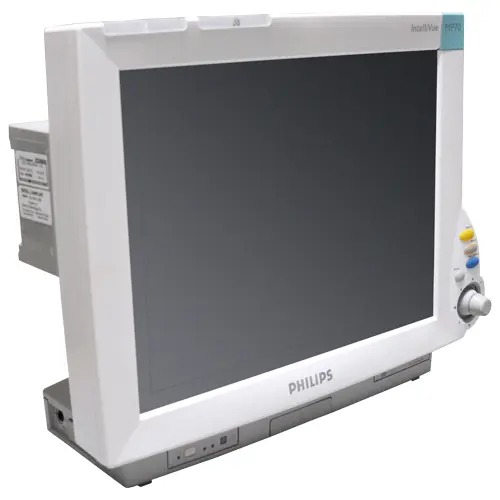

Philips IntelliVue MP70 ECG Monitor

Quotes in less than 24 hours Download Specifications

Philips Intellivue Features

The Philips IntelliVue MP70 is a patient Monitor that was designed to monitor a variety of parameters on a flexible screen configuration. The MP70 can be connected to the Multi-Measurement Modules. The Monitor has two slots for the modules. These Modules include; anesthesia, Critical, Cardiac, neonatal care, and general care units. The Patient Monitor has a 15-inch color LCD touchscreen display that can show up to eight different waveforms at once. Along with displaying 12 lead ECGs.

  • Touchscreen and SpeedPoint operation
  • Customizable viewing options with 10 pre-set screen configurations
  • Uninterrupted patient monitoring
  • Bright and easy-to-read color display
  • Space-saving, quiet, and stable
  • Fast startup

Philips IntelliVue Specifications


  • Height: 14.17″ (36 cm)
  • Width: 15.95″ (40.5 cm)
  • Depth: 6.69″ (17 cm)
  • Weight: 22.05 lbs (10 kg)


  • Type: XGA
  • Resolution: 1024 x 768
  • Refresh Rate: 60 Hz
  • Size: 15″ (38.1 cm)


  • Power Consumption: <145 W
  • Line Voltage: 100 to 240 V ~
  • Current: 1.6 to 0.7 A
  • Frequency: 50/60 Hz

Sweep Speeds

  • 6.25, 12.5, 25, and 50 mm/s
  • Accuracy: +/- 5% Accuracy


  • Audible feedback for user input.
  • Prompt tone.
  • Two different QRS tones, SpO2


  • Information: Trigger conditioning and time, event classification, and associated detailed view of episode data.
  • Episode Data: Configurable, includes all numerics, alarms, inops, and either: 4 minutes of high-resolution trend or 20 minutes of numerics trend @ 12 sec. resolution or 15 seconds of 4 waves @ 125 samples/sec.
  • Capacity (Max.): 25 or 50 events for either 8 or 24 hours.

Environmental Specifications

  • Operating Temperature: 0 to 35 °C (32 to 95 °F)
  • Non-operating Temperatuer: -20 to 60 °C (-4 to 140 °F)
  • Battery Storage Temperature: -20 to 50 °C (-4 to 122 °F)

Advanced Event Surveillance

  • Events are electronic records of episodes in the patient’s condition
  • They can be used to drive alert notifications to assist compliance with any protocol that is being used by the clinician.


  • Any specified PS/2 mouse or trackball may be used for data entry


Using the plug-in recorder record numerics for all active measurements and up to three waveforms can be documented. It can be used for local recording in either the FMS or the integrated module slots. Report templates can be defined in advance, enabling print-outs tailored to each hospital’s specific requirements to be started quickly. They can be printed locally or centrally connected printers and they can be initiated manually or automatically at user-defined intervals.

An extensive range of patient reports can be printed:

  • Event Review and Episode Reports
  • 12-Lead ECG reports
  • Vital signs
  • Graphic trends
  • Cardiac output reports
  • Wedge procedure reports
  • Calculation reports
  • EEG reports
  • Loop reports

Patient Transfers

  • The Universal Admit, Discharge, and Transfer (ADT) feature means that all ADT information is shared between the networked monitoring and the information center. Information only needs to be entered once.
  • Patients can be transferred by disconnecting the MMS or X2 from a monitor and then reconnecting it to a new monitor. Patient demographics are stored in the MMS and the X2, so they do not have to be re-entered on the new monitor.

Drug Calculator

  • The drug calculator allows you to calculate the fourth value when three of the following values are entered: dose, amount, volume, the rate of infusion.
  • A titration table and drip table can be displayed and printed.
  • The drug calculator can also be configured to include a list of commonly used drugs using the support tool.

Philips Monitor Applications

Clinical Decision Support

Clinicians are continuously drawing mental images from their observations of patients’ vital signs. IntelliVue’s clinical decision support applications offer a dynamic “mind’s eye view” directly on the monitoring screen.


ProtocolWatch allows clinicians to run clinical protocols that can monitor developments in their patients’ conditions. The SSC Sepsis Protocol runs the ProtocolWatch application and is used in screening for severe sepsis and monitoring its treatment.

ST Map

ST Map provides a graphical display that can help clinicians recognize ST changes and their location in the heart more easily. ST Map collects ST values created from the frontal (limb leads) and horizontal (chest leads) plane into an integrated display. The maps are multi-axis portraits of the patient’s ST segments as measured with the ST/AR arrhythmia algorithm.

Horizon Display

Horizon trends provide clinicians with a graphical visualization tool that allows the end-user to detect at a glance the patients’ current clinical status. By combining parameters on the display, the clinician is assisted in their cognitive process of pattern recognition.


Up to six loops of each type can be stored and compared to detect respiratory changes more easily.

Screen display flexibility

Up to 20 different screens can be created per monitor, which means that the clinician can have a screen created to match a specific clinical scenario in which the data that matters is displayed. This streamlines the information that needs to be processed and interpreted to make the right decision at the right time.

Refurbished Philips Patient Monitor

Soma Tech Intl offers Refurbished Philips IntelliVue MP70 Monitor up to 50% below OEM prices with the same service and warranty as new. The IntelliVue MP70 Monitor is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts the Philips IntelliVue system is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on IntelliVue MP70. If necessary, parts are replaced to make sure that all aspects of the pump are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the IntelliVue MP70 system is working like new it undergoes a special cosmetic restoration process. The patient monitor is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the infant warmer functions and looks like new. Soma Tech is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the patient monitor is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Philips IntelliVue MP70 Patient Monitor contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase an IntelliVue MP70 Patient Monitor If you or your facility is looking to sell your patient monitor, be sure to contact Soma Tech. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned patient monitor to Soma takes out the middleman in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain floor space for new equipment, or looking to upgrade current equipment, contact Soma Techs’s purchasing department at [email protected] or send us a message on our website.
