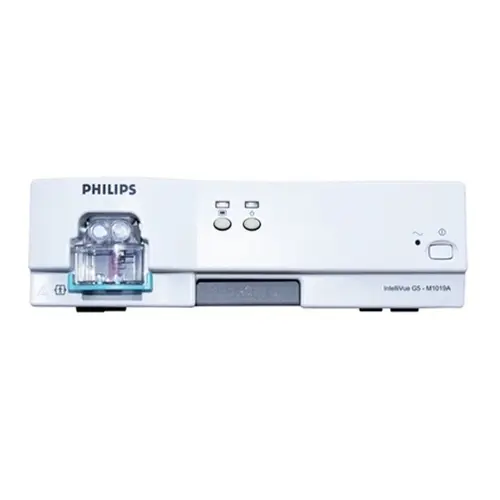

Philips IntelliVue G5 M1019A

Quotes in less than 24 hours Download Specifications

Philips G5 M1019A Features

The Philips IntelliVue G5 M1019A anesthetic gas modules measure the five most commonly used anesthetic gases, as well as nitrous oxide (N2O) and carbon dioxide (CO2). Waveforms for all gases are displayed on the connected patient monitor along with inspiratory and end-tidal numerical values. The IntelliVue G5 automatically identifies agents and features mixed-agent measurement capabilities. The compact footprint of the IntelliVue gas modules makes them practical for use in lower-acuity settings. At the same time, advanced capabilities such as automatic agent ID and mixed-agent measurements are available for higher-acuity environments. The gas sensors in the G5 gas modules have no moving parts, so they are reliable and durable. Zero calibrations are completed automatically during warm-up.

  • Real-time gas monitoring.
  • Airway respiration rate
  • MAC values
  • Automatic agent identification
  • Mixed-agent measurement
  • Quick warm-up time
  • Rapid response time
  • Highly durable and solid-state sensor design

Philips IntelliVue G5 M1019A Specifications


  • Size: 90 x 370 x 467 mm 3.54 x 14.5 x 18.4 in
  • Weight: 6.3 kg 13.9 lb
  • Gas analyzer: M1026BAGM


  • Power Consumption: peak: 35W, typical: 25W
  • Power Range: 100 – 240 VAC

Environmental Specifications

  • Temperature Range
    • Operating 10 to 40°C (50 to 104°F)
    • Non-operating -20 to 65°C (-4 to 149°F)
  • Humidity Range
    • Operating 5 to 90%
    • Relative Humidity (RH) max. @ 40°C (104°F) (non-condensing)
    • Non-operating 5 to 95% Relative Humidity (RH) max. @ 65°C (150°F)
  • Altitude Range
    • Operating -305 m to 2900 m (-1000 to 9515 ft)
    • Non-operating -305 m to 5000 m (-1000 to 16404 ft)
  • Atmospheric Pressure Range
    • Operating 70 kPa to 106 kPa
    • Non-operating 50kPa to 106 kPa
  • Warmup Time After switching on 1 – 2 minutes to measure, 6 minutes for full

Refurbished Philips IntelliVue G5 M1019A anesthetic gas modules Agent Monitor

Soma Tech Intl offers the Philips IntelliVue G5 M1019A anesthetic gas modules, and Agent Monitor, up to 50% below OEM prices with the same service and warranty as new. Soma technically and cosmetically refurbishes these agent monitors back to the original engineering manufacturer’s specifications. Using highly skilled, trained, and certified in-house biomedical engineers these units are fully tested, disassembled, and if necessary, parts are replaced. Once all the parts of the Philips IntelliVue G5 M1019A anesthetic gas modules Agent Monitor are in working order, the gas monitor is calibrated back to OEM specifications, to make sure it works exactly the way it did when it originally left the manufacturer. Soma Tech Intl not only refurbished the product, but each unit also goes through a Special cosmetic restoration process. The Philips IntelliVue G5 M1019A anesthetic gas modules are cleaned and minor scratches and dentures are repaired, and decals are replaced if necessary.

Soma Tech Intl also purchases used and pre-owned agent monitors. If you or your facility wants to sell your Philips IntelliVue G5 M1019A anesthetic gas modules, Agent Monitor, Soma Tech Intl has an experienced purchasing department that makes the process headache and hassle-free. When selling your agent monitor to Soma, there is no need for a middle man, it is a direct transaction to Soma which ensures that you get top dollar for your medical equipment. Soma Tech Intl not only buys gas monitors but a wide variety of different medical equipment as well if your medical facility is looking to free up space. If you have medical equipment you would like to sell to Soma, send us a message here!


Questions about our Anesthesia Monitors and Agent Monitors?

Soma Tech Intl offers a wide range of Anesthesia Monitors and Agent Monitors. If you have any questions about any of our monitors or need a quick quote, call us and one of our knowledgeable sales representatives will help you.

Looking to sell your Anesthesia Monitors and Agent Monitors? Soma ensures your facility gets top dollar for your equipment and also gives the option for trade-in credit.
