Mindray cPM 8
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

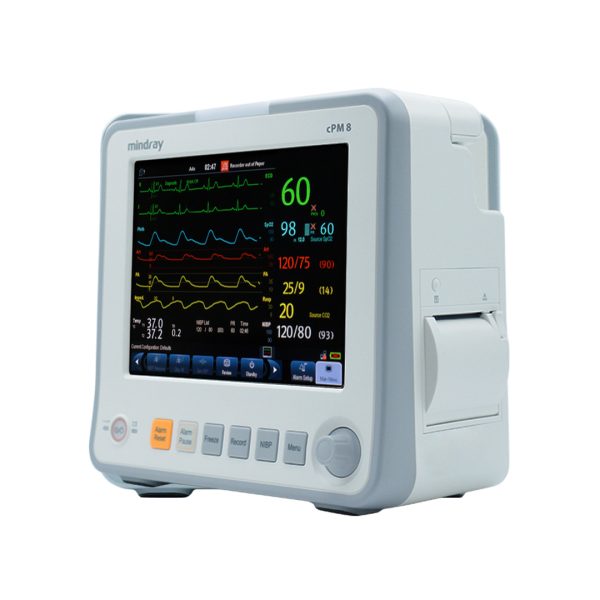

Mindray cPM 8 Features
The Mindray cPM 8 is an advanced patient monitor designed to deliver reliable and accurate monitoring for various clinical environments. Its intuitive interface and modular design provide real-time data visualization, ensuring caregivers have the necessary information to make informed decisions. The CPM8 supports comprehensive vital sign monitoring, making it an ideal solution for critical care and general ward settings.
- High-Resolution Display: Provides clear visualization of patient parameters and waveforms.
- Comprehensive Monitoring: Tracks ECG, SpO2, NIBP, temperature, and respiration with precision.
- Customizable Alarms: Advanced alarm system with adjustable thresholds for critical events.
- Modular Design: Expandable with additional modules for specialized applications.
- Data Storage: Extensive memory for enhanced review for trend data, events, and waveforms.
- Connectivity Options: Supports HL7 integration and external device connections.
- Portable Design: Compact and lightweight for flexible use in different care areas.
Mindray CPM 8 Specifications
Dimensions
- Width: 9.4 in (238 mm)
- Height: 8.9 in (225 mm)
- Depth: 5.1 in (128 mm)
- Weight: ≤7.8 lbs (3.5 kg).
Power AC
- Input Voltage: 100–240 VAC ±10%.
- Frequency: 50/60 Hz ±3 Hz.
- Battery Type: Rechargeable Lithium-Ion, 11.1 DVC, 4.5 Ah.
- Runtime: Up to 6 hours on a fully charged battery at 25°C.
Environmental Conditions
- Operating Temperature: 0–40°C (32–104°F).
- Storage Temperature: -30–70°C (-22–158°F).
- Humidity: 15%–95% RH, non-condensing.
- Barometric Pressure: 57.0–107.4 kPa.
Display
- Screen Size: 8.4 inches.
- Resolution: 800 × 600 pixels.
- Screen Type: Color TFT LCD.
General
- Monitoring Capabilities: ECG, SpO2, NIBP, respiration, temperature, and more.
- Interfaces: 2 USB 2.0 ports, RJ45 network connector, VGA connector, and multifunctional connector.
- Alarm System: Dual-color coded alarm lamp (red and yellow), audio indicator with tones ranging from 45–85 dB.
Refurbished Mindray CPM8 Patient Monitors
Soma Tech Intl offers the Mindray CPM8 patient monitor up to 50% below OEM prices with the same service and warranty as new. The Mindray CPM8 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Mindray CPM8, it is carefully inspected and tested by our in-house biomedical engineers who are highly skilled and certified to work on patient monitors. If necessary, parts are replaced to ensure that all aspects of the monitor meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer. Once the monitor is functioning like new, it undergoes a specialized cosmetic restoration. The Mindray CPM8 is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the Mindray CPM8 is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished patient monitor, contact Soma at [email protected] or call us at 1-800-438-7662.
Soma Tech Intl actively seeks to purchase patient monitors. If you or your facility are looking to sell your Mindray CPM8, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
