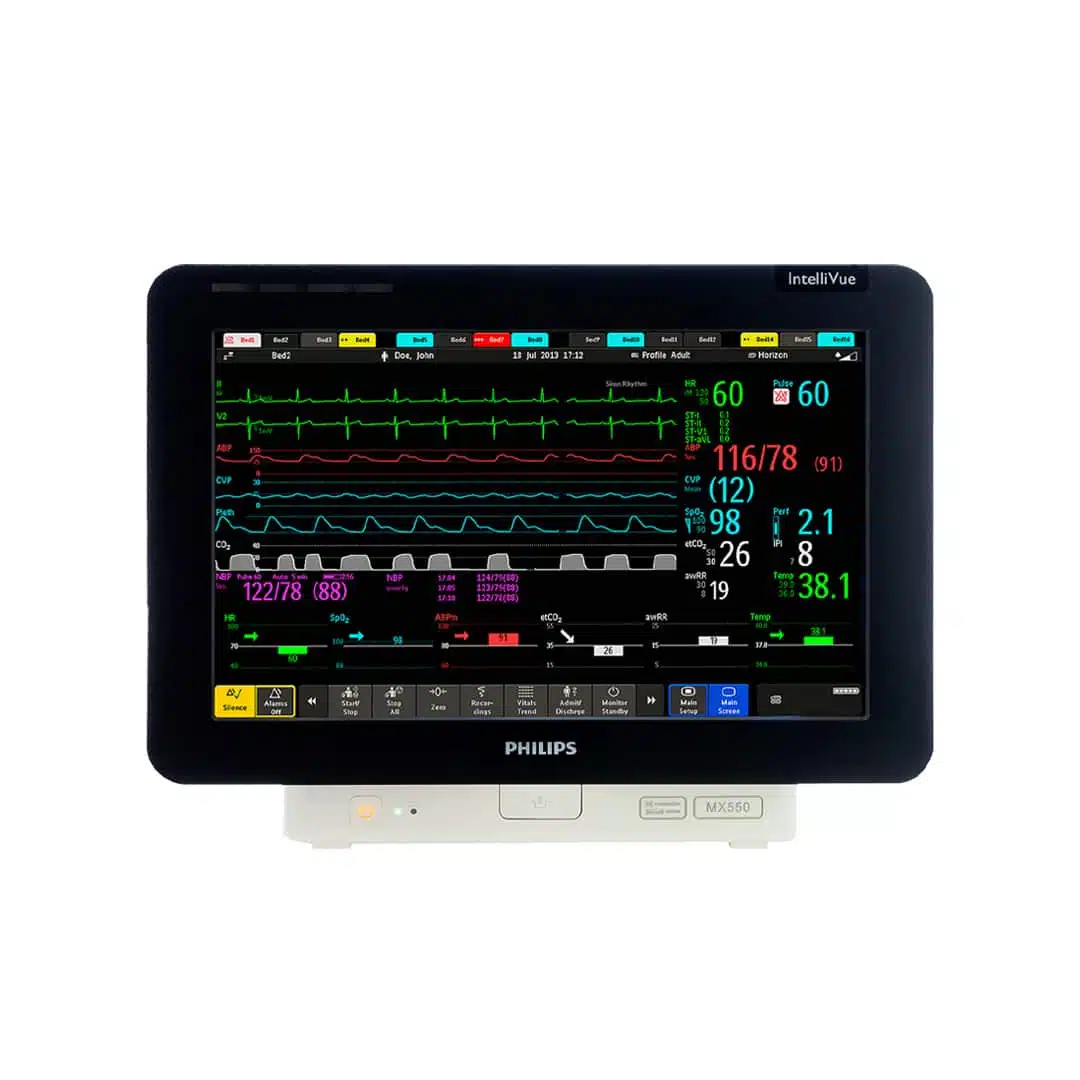

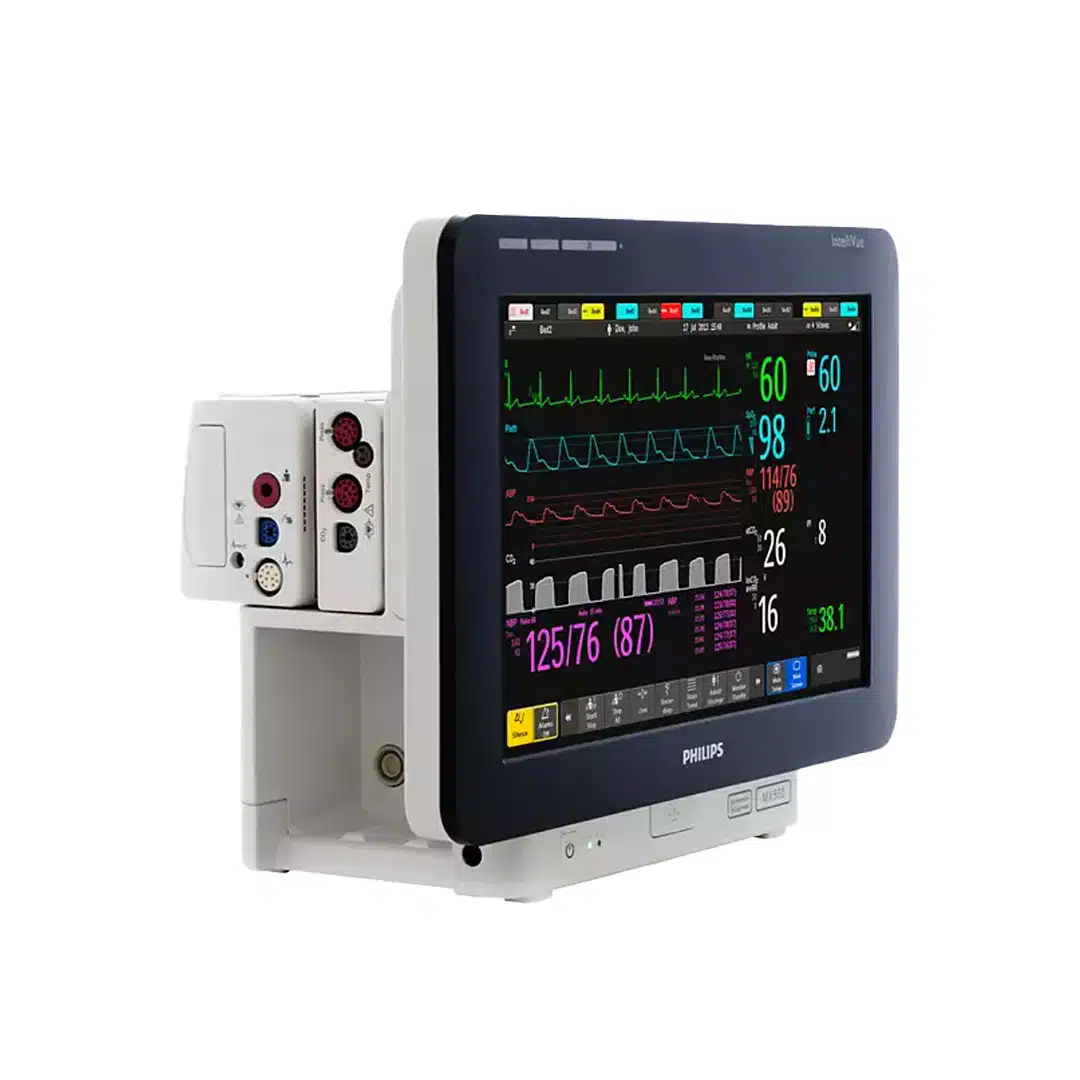

Philips IntelliVue MX550

Quotes in less than 24 hours Download Specifications

Philips IntelliVue MX550 Features

The Philips IntelliVue MX550 is a comprehensive patient monitor that can also monitor vital signs. The Philips MX550 comes with a 15-inch touchscreen interface, making it easy to view and make parameter changes for each patient. The display screen can easily be adjusted, which allows for flexible displaying of different measurement information. The Patient monitor is a part of the Philips Multi-Measurement Module (MMS) system. Offers multiple plug-in modules that can measure a variety of parameters. Some of these modules include; anesthesia, Intensive, Cardiac, Neonatal, and general care. Philips offers a variety of patient monitors, another in the MX series is the Philips IntelliVue MX 700.

  • Information at a glance
  • Flexible, portable workflow
  • Easy data sharing
  • 12”-15” wide touchscreen helps you see it clearly and quickly
  • Advanced Clinical Solutions to summarize and visualize data
  • Ambient light adjustment for readability in virtually any environment
  • Advanced options help fit monitoring around workflows
  • Portable design to monitor the move
  • Connectivity options help you make the most of your EMR

IntelliVue MX550 Specifications


Cardiac Output Module

  • Width: 1.4 in ( 36mm)
  • Height: 4.1 in (103.5 mm)
  • Depth: 4.3 in (110 mm)
  • Weight: 225 g ( 7.9 oz)

Spirometry Module

  • Width: 1.4 in ( 36mm)
  • Height: 4.1 in (103.5 mm)
  • Depth: 4.3 in (110 mm)
  • Weight: 250 g ( 8.8 oz)

SpO2 Module

  • Width: 1.4 in ( 36mm)
  • Height: 4.1 in (103.5 mm)
  • Depth: 4.3 in (110 mm)
  • Weight: 200 g ( <8.8 oz)

Temperature Range

  • Operating: 0 – 40° C (32 – 100° F). When charging the battery, or M3002A is mounted on the back, or with Smart Hopping Interface 0 – 35°C (32 – 95°F)
  • Storage: -20 – 60° C (-4 – 140° F)

Humidity Range

  • Operating: 15% to 95% Relative Humidity (RH) (noncondensing)
  • Storage: 5% – 95% Relative Humidity (RH)

Altitude Range

  • Operating: -500 – 3000 m (10000 ft)
  • Storage: -500 – 4600 m (15000 ft)

Power Specifications

  • Power Consumption: <70 W average
  • Line Voltage: 100 – 240 V
  • Current: 1.2 – 0.5 A
  • Frequency: 50/60 Hz

Display Screen

  • Size: 15 inch
  • Type: 390 mm active matrix color LCD (TFT)
  • Resolution: 1280 x 768
  • Refresh rate: 59.9 Hz
  • Useful screen: 334.1 x200.5 mm
  • Pixel Pitch: 0.261 x 0.261


  • Standard: 10BASE-T and 100Base-TX (IEEE 802.3), auto-negotiation, full and half-duplex
  • Connector: RJ45 (8-pin)
  • Isolation: basic insulation (reference voltage: 250 V; test voltage: 1500 V)

USB Interface

  • Standard: USB 2.0 high-speed
  • Connector: USB series “Standard A” receptacle
  • Power: Low power port 4.4 V min., max. load for all ports together 500 mA
  • Isolation: none

Video Interface

  • Connector: DVI-I (digital and analog, single link).
  • Digital Video Connector: single link TMDS
  • Analog video signals: 0.7 Vpp@75O
  • HSYNC/VSYNC signals: TTL

Battery Operating Time

  • New and fully loaded battery
    • With basic monitoring configuration: 2.5 hours (brightness set to optimum, MMS connected, NBP measurement every 15 minutes)
    • With extended monitoring configuration: 2 hours (brightness set to optimum, MMS and MMS extension connected, NBP every 15 minutes, Recorder, Pressure, and Temperature modules connected)

Battery Charge Time

  • When the monitor is switched off: 3 hours
  • When the monitor is in use: up to 5 hours, depending on monitor configuration

Refurbished Philips IntelliVue MX 550 Patient Monitor

Soma Tech Intl offers the Philips IntelliVue MX 550 Patient Monitor up to 50% below OEM prices with the same service and warranty as new. The Philips Monitor is not only technically refurbished but also cosmetically refurbished to make it work and look new. When the refurbishing process starts on the patient monitors, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on patient monitors. If necessary, parts are replaced to make sure that all aspects of the monitor are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the IntelliVue MX550 monitor is working like new it undergoes a special cosmetic restoration process. The monitor is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Philips monitor is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished stretcher contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase Philips patient monitors, If you or your facility is looking to sell your patient monitors, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Philips monitors takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
