Sony UP-D898DC
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Sony UP-D898DC Features

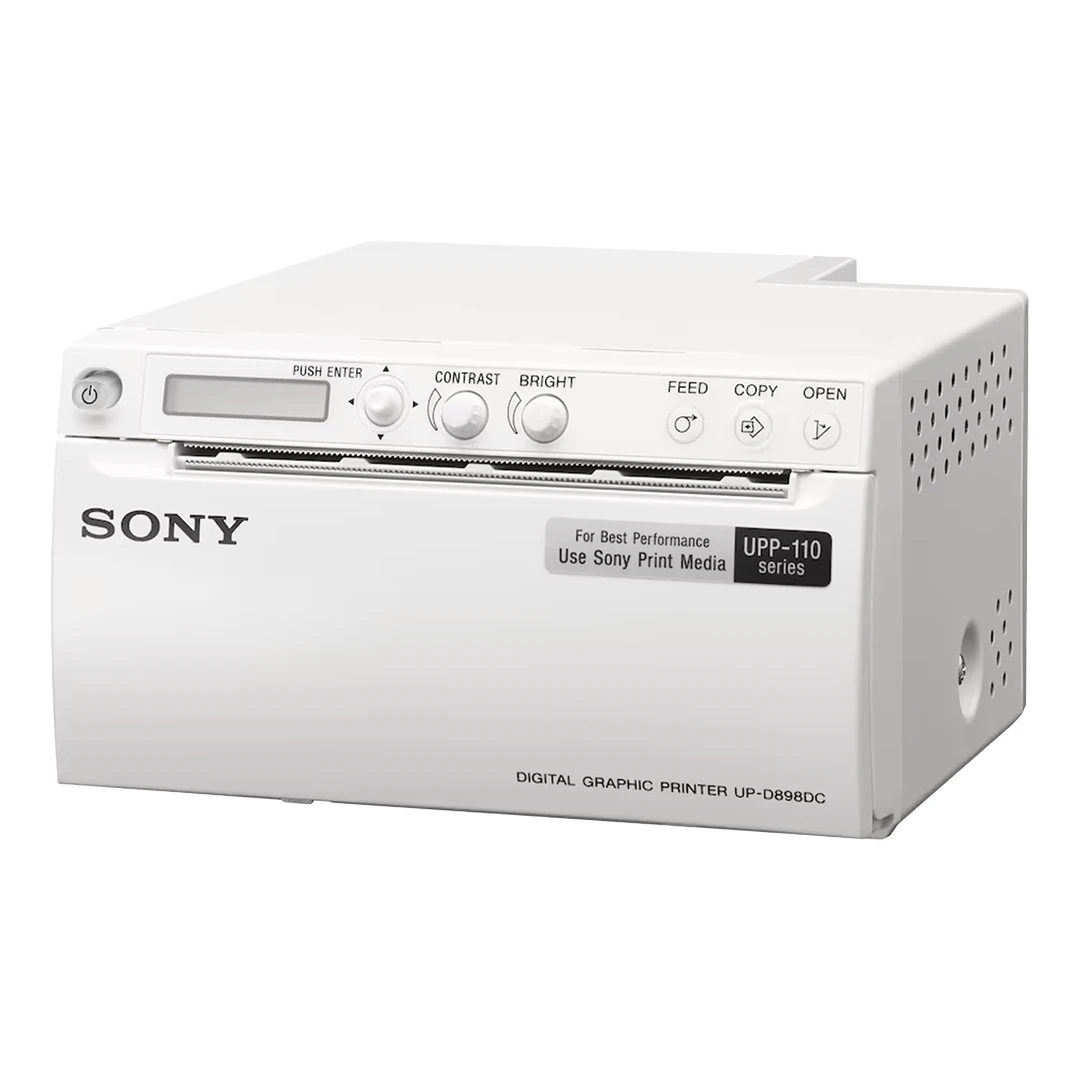

The Sony UP-D898DC medical printer is a compact black and white digital thermal printer designed to produce high-quality hard copy images from compatible medical imaging systems. Commonly used with C-arms, ultrasound systems, and cardiac catheterization equipment, the printer delivers fast, detailed prints for patient records, referrals, and clinical documentation. The UP-D898DC features a space-saving design that integrates easily into medical carts and equipment workstations while offering an intuitive LCD display and joystick controls for simple operation. Advanced thermal printing technology produces high-resolution grayscale images without the need for ink or toner, helping reduce routine maintenance. Designed with a DC power input, the UP-D898DC is well suited for mobile imaging applications where DC-powered systems are preferred.
- High-Resolution Thermal Printing: Produces sharp black and white medical images with up to 325 dpi resolution and 256 levels of grayscale.
- Fast Print Performance: Generates A6-size prints in approximately two seconds to support efficient clinical workflow.
- Compact DC-Powered Design: Space-saving footprint and DC input make the printer ideal for mobile carts and integrated imaging systems.
- Intuitive User Interface: Large LCD display and joystick navigation provide quick access to printer settings and status information.
- USB Image Storage: Supports saving printed images to a connected USB flash drive for convenient record keeping and image management.
Sony UP-D898DC Specifications
Dimensions
- Height: 3.5 in (8.8 cm)
- Width: 6.2 in (15.4 cm)
- Depth: 6.5 in (16.5 cm)
- Weight: 3.9 lb (1.8 kg)
Printer
- Printing Method: Direct thermal printing
- Resolution: 325 dpi
- Gradations: 8 bits (256 levels) of processing
- Picture Elements: Digital: 4,096 x 1,280 dots
- Picture Area: 12.625 x 4 in (320 x 100 mm)
- Paper Size: Width: 4.375 in (110 mm)
- Printing Time
- High Speed Mode: 1.9 seconds / image (960 x 1,280 dots)
- Normal Speed Mode: 3.3 seconds / images (960 x 1,280 dots)
- Picture Memory: Digital: 4,096 x 1,280 x 8 (bit)
- Interface: Hi-Speed USB (USB 2.0) (x1)
- Printer Driver Software: Microsoft Windows XP 32/64 bit, Vista 32/64 bit, 7 32/64 bit, 8 32/64 bit
Power
- Power Requirements: 12V to 24V DC
- Input Current: 8.2A to 3.7A
Operating and Storage
- Operating Temperature: 5°C to 40°C (41°F to 104°F)
- Operating Humidity: 20% to 80% (no condensation allowed)
- Storage and Transport Temperature: -20°C to +60°C (-4°F to +140°F)
- Storage and Transport Humidity: 20% to 80% (no condensation allowed)
Refurbished Sony UP-D898DC
Soma Tech Intl offers the Sony UP-D898DC medical printer up to 50% below OEM prices, providing the same service and warranty as a new. This medical printer undergoes both technical and cosmetic refurbishment to ensure reliable print quality and a clean, professional appearance. During the refurbishment of the Sony UP-D898DC, our in-house biomedical engineers, who are highly trained and certified to work on medical printers, carefully inspect and test the unit. If required, components are replaced to ensure the UP-D898DC printer meets the original manufacturer’s engineering specifications.
Once the Sony UP-D898DC medical printer is fully operational, it proceeds through a detailed cosmetic restoration process. The printer is thoroughly cleaned, minor cosmetic imperfections are addressed, exterior surfaces are refinished when necessary, and labels or decals are replaced if needed. After completing this refurbishment process, the UP-D898DC both functions and presents like new. Soma Tech Intl is ISO 13485:2016 Certified, ensuring strict quality control standards are maintained for all capital medical equipment sold. Before the Sony UP-D898DC is labeled patient-ready and prepared for shipment, it undergoes a final quality assurance inspection to confirm proper operation and consistent performance.
Soma Tech Intl is actively seeking to purchase Sony UP-D898DC medical printers. If your facility is interested in selling a UP-D898DC printer or other Sony medical printers, contact Soma Tech Intl. Our experienced purchasing department will guide you through the entire process. Selling your used or pre-owned Sony equipment directly to Soma eliminates the middleman and helps ensure your medical facility receives the highest value for its equipment. Soma is 100% HIPAA compliant, ensuring your equipment arrives at our facility in the same condition it left yours. Soma Tech Intl also offers trade-in credit for your medical equipment. If you have a Sony UP-D898DC medical printer or other used medical equipment you would like to sell, send us a message.
