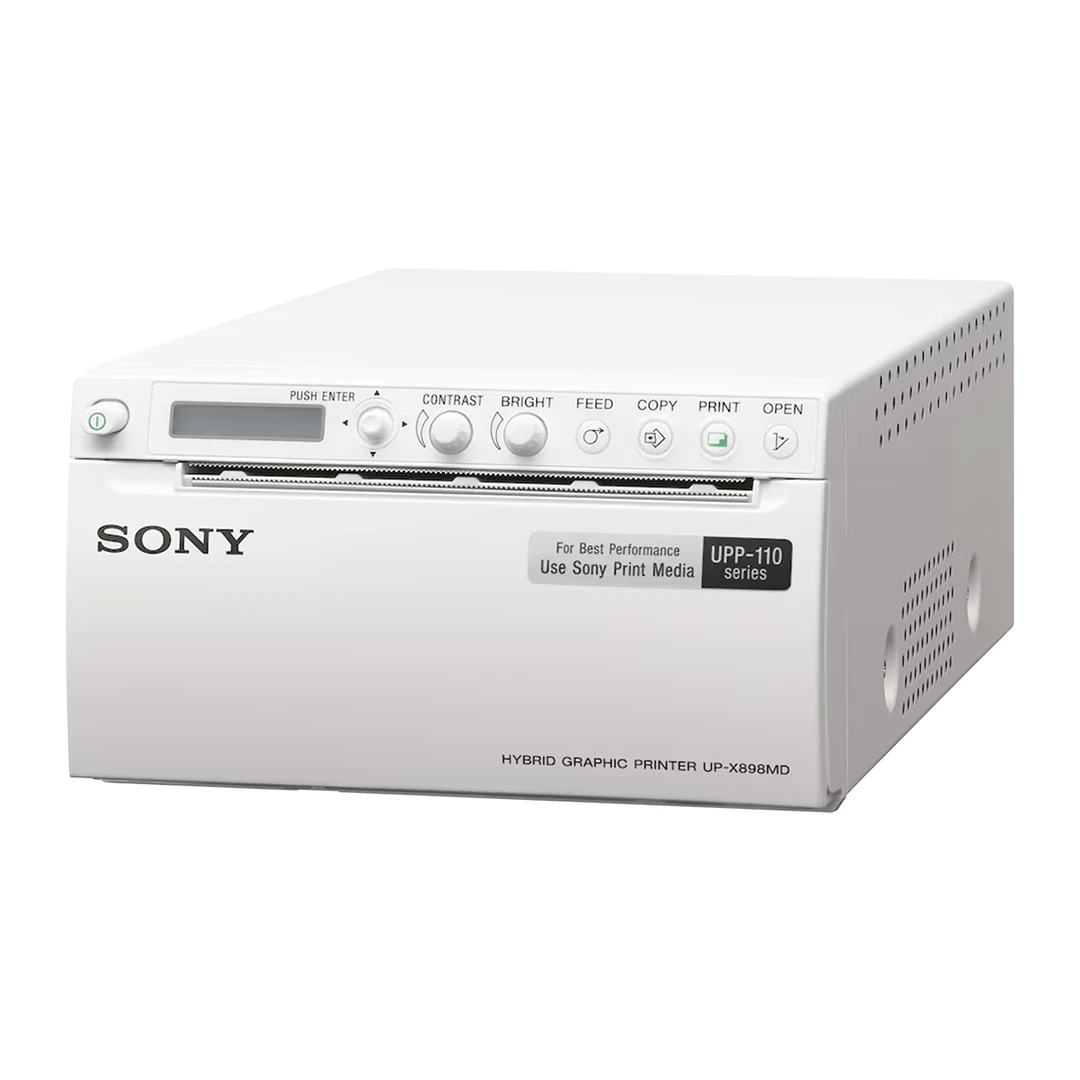

Sony UP-X898MD
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Sony UP-X898MD Features
The Sony UP-X898MD is a compact digital thermal printer designed to produce high-quality black and white images from a wide range of medical imaging systems. Supporting both analog video and digital USB inputs, the printer integrates easily with ultrasound systems, mobile C-arms, endoscopy equipment, and other compatible imaging modalities. Advanced thermal printing technology delivers detailed grayscale images in less than two seconds, providing a fast and reliable solution for patient records and clinical documentation. Its compact footprint, intuitive LCD display, and joystick controls make operation simple while allowing the printer to fit easily on medical carts and workstations. The UP-X898MD also supports USB image storage and optional wireless printing capabilities, offering additional flexibility for busy clinical environments.
- Hybrid Analog and Digital Connectivity: Accepts both composite video and USB inputs for compatibility with a variety of medical imaging systems.
- High-Resolution Thermal Printing: Produces detailed black and white images with up to 325 dpi resolution and 256 levels of grayscale.
- Fast A6 Print Speed: Generates high-quality A6 prints in approximately two seconds to help maintain efficient clinical workflow.
- Compact, User-Friendly Design: Features a space-saving footprint, large LCD display, and joystick navigation for simple operation and easy integration.
- USB and Wireless Printing Support: Automatically stores printed images to a connected USB flash drive and supports optional wireless printing with compatible accessories.
Sony UP-X898MD Specifications
Dimensions
- Height: 3.5 in (8.8 cm)
- Width: 6.2 in (15.4 cm)
- Depth: 9.5 in (240 cm)
- Weight: 5.5 lb (2.5 kg)
Printer
- Printing Method: Direct thermal printing
- Resolution: 325 dpi
- Gradations: 8 bits (256 levels) of processing
- Picture Elements
- Digital: 4096 x 1280 dots
- Video NTSC: 720 x 504 dots
- Video PAL: 720 x 604 dots
- Picture Area
- Digital: 320 x 100 mm/12 5/8 x 3 7/8 inch (Max)
- STD Video NTSC: 94 x 73 mm, Video PAL: 94 x 71 mm (WIDE1)
- SIDE Video-NTSC: 124 x 96 mm, Video-PAL: 127 x 96 mm (WIDE1)
- Paper Size: Width: 4.375 in (110 mm)
- Printing Time
- High Speed Mode: 1.9 seconds / image (960 x 1,280 dots)
- Normal Speed Mode: 3.3 seconds / images (960 x 1,280 dots)
- Picture Memory
- Digital: 4,096 x 1,280 x 8 (bit)
- Video: 10 frame memories (850 k x 8 bits per frame)
- Interface
- USB terminal (type A) for USB flash drive (X1)
- Hi-Speed USB (USB 2.0) (x1)
- VIDEO INPUT: BNC type (x1)
- NTSC or PAL composite video signals
- 1.0 Vp-p, 75 ohms (NTSC/PAL automatically discriminated)
- VIDEO OUTPUT: BNC type (x1) Loop-through
- REMOTE: Stereo mini jack (x1)
- Printer Driver Software: Microsoft Windows XP 32/64 bit, Vista 32/64 bit, 7 32/64 bit, 8 32/64 bit
Power
- Power Requirements: AC 100 V to 240 V, 50/60 Hz
- Input Current: 1.3 A to 0.6 A
Operating and Storage
- Operating Temperature: 5°C to 40°C (41°F to 104°F)
- Operating Humidity: 20% to 80% (no condensation allowed)
- Storage and Transport Temperature: -20°C to +60°C (-4°F to +140°F)
- Storage and Transport Humidity: 20% to 80% (no condensation allowed)
Refurbished Sony UP-X898MD
Soma Tech Intl offers the Sony UP-X898MD medical printer up to 50% below OEM prices, providing the same service and warranty as a new. This medical printer undergoes both technical and cosmetic refurbishment to ensure reliable print quality and a clean, professional appearance. During the refurbishment of the Sony UP-X898MD, our in-house biomedical engineers, who are highly trained and certified to work on medical printers, carefully inspect and test the unit. If required, components are replaced to ensure the UP-X898MD printer meets the original manufacturer’s engineering specifications.
Once the Sony UP-X898MD medical printer is fully operational, it proceeds through a detailed cosmetic restoration process. The printer is thoroughly cleaned, minor cosmetic imperfections are addressed, exterior surfaces are refinished when necessary, and labels or decals are replaced if needed. After completing this refurbishment process, the UP-X898MD both functions and presents like new. Soma Tech Intl is ISO 13485:2016 Certified, ensuring strict quality control standards are maintained for all capital medical equipment sold. Before the Sony UP-X898MD is labeled patient-ready and prepared for shipment, it undergoes a final quality assurance inspection to confirm proper operation and consistent performance.
Soma Tech Intl is actively seeking to purchase Sony UP-X898MD medical printers. If your facility is interested in selling a UP-X898MD printer or other Sony medical printers, contact Soma Tech Intl. Our experienced purchasing department will guide you through the entire process. Selling your used or pre-owned Sony equipment directly to Soma eliminates the middleman and helps ensure your medical facility receives the highest value for its equipment. Soma is 100% HIPAA compliant, ensuring your equipment arrives at our facility in the same condition it left yours. Soma Tech Intl also offers trade-in credit for your medical equipment. If you have a Sony UP-X898MD medical printer or other used medical equipment you would like to sell, send us a message.
