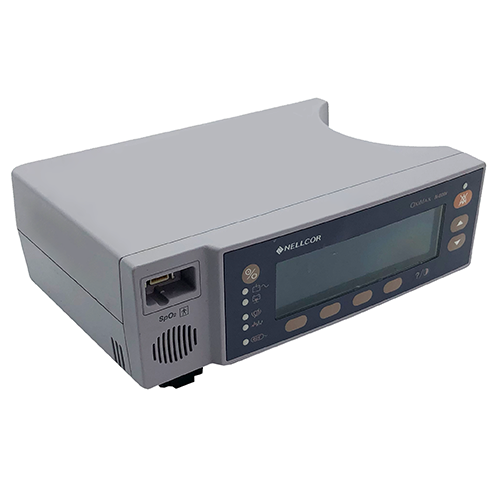

Nellcor OxiMax N-600x Features
The Nellcor OxiMax N-600x pulse oximeter is indicated for the continuous noninvasive monitoring of functional oxygen saturation of arterial hemoglobin (SpO2) and pulse rate. The Nellcor N-600x is intended for use with neonatal, pediatric, and adult patients who are well or poorly perfused, in hospitals, hospital-type facilities, intra-hospital transport, and home environments.
- Simple, intuitive operation and easy-to-see display with dimmer and contrast adjustment.
- Compatible with the complete family of OxiMax Pulse Oximetry Sensors.
- Three display options: plethysmographic waveform, large numerics, and customizable real-time trend.
- The On-screen quick guide provides instant help to assist caregivers with monitoring operations.
- Convenient selection of adult or neonate alarm limits, and user-configurable power-on settings.
- User-selectable fast-averaging mode (2-3 seconds) to more precisely track rapidly changing saturations.
Nellcor OxiMax N-600x Specifications
Dimensions
- Height: 3.3 In (8.4 cm)
- Width: 10.4 In (26.4 cm)
- Depth: 6.8 In (17.3cm)
- Weight: 5.8 lbs (2.6 kg)
Performance
- Measurement Range
- SpO2: 1% to 100%
- Pulse Rate: 20 to 250 beats per minute (bpm)
- Perfusion Range: 0.03% to 20%
- Accuracy Tolerance
- Saturation
- Adult: 70 to 100% ±2 digits
- Neonate: 70 to 100% ±3 digits
- Low Perfusion: 70 to 100% ±2 digits
- Pulse Rate
- Adult and Neonate: 20 to 250 bpm ±3 digits
- Low Perfusion: 20 to 250 bpm ±3 digits
- Saturation
Power
- Power Requirements: Rated at 100 to 120 volts AC (nominal 120 VAC) or 220 to 240 volts AC (nominal 230 VAC), 20 volt/amps to be compliant with IEC 60601-1 sub-clause 10.2.2.
- Fuses Quantity: 2, 0.5 A, 250 volts, slow-blow, IEC (5 x 20 mm).
Battery
- Type: Lead-acid Voltage: 6 Volts DC
- Recharge:
- 8 hours with N-600x turned off
- 12 hours with N-600x turned on
- Shelf Life:
- 4 months, new fully-charged battery (when the monitor is placed in “Shelf-mode” by qualified service personnel using the procedures indicated in the N-600x Service Manual)
- After 4 months of storage in “Shelf mode”, the N-600x will run for 33% of the stated battery life
