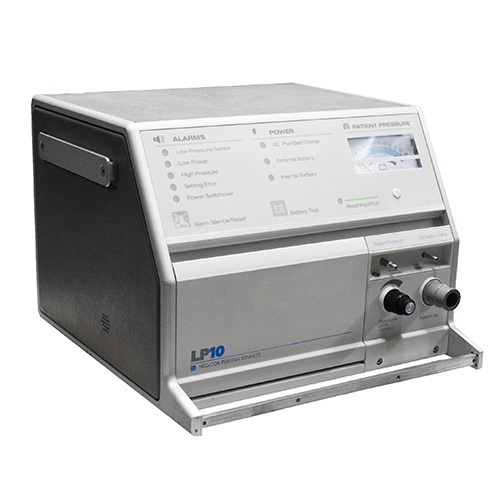

Puritan Bennett LP10

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Puritan Bennett LP10 Ventilator Features

The Puritan Bennett LP10 is a Portable volume ventilator that runs off of a microprocessor.the ventilator has indicators that can monitor the patient’s pressure, breathing efforts, power supply, and alarms. The Puritan Bennett LP10 also can monitor the pressure limit controls which means the ventilation system can be used on pediatric patient. The Puritan Bennett LP 10 can be used in non-acute and transport situations in both pediatric and adult patients.

  • Lightweight and highly portable.
  • Meets a broad range of pediatric and adult needs.
  • Decreased internal resistance that reduces breathing efforts in SIMV mode.
  • Reliable ventilator monitoring displays.
  • Designed for smooth transition from critical care ventilation.

Puritan Bennett LP10 Ventilator Specifications


  • Height: 9.75” (24.6 cm)
  • Width: 14.5” (36.8 cm)
  • Depth: 13.25” (33.6 cm)
  • Weight: 25lbs (15.9 kg)

Setting Parameters

  • Mode: Assist/control, SIMV or Pressure Cycle
  • Volume: Adjustable from 100 to 2200 mL
  • Inspiratory Time: Set time from 0.5 to 5.5 seconds
  • Sensitivity: Set pressure from 1 to 10 cm H20/hPa
  • Breath Rate: Set breathing rate: 1 to 38 BPM
  • Pressure Limit: Off, 15-50 cm H20/hPa
  • Low Pressure: Set for 2 to 32 cm H20/hPa
  • High Pressure: Set for 15 to 90 cm H20hPa
  • Flow: 20 to 100 L/min


  • Low Pressure/Apnea, High Pressure, Setting Error, Power Switchover, Low Power and Vent Fail


  • External Battery, Internal Battery, Battery Charge and Breathing Effort

Additional Indicators/Connections

  • Alarm Silence/Reset: Push button for alarm silence/reset; Used with Battery Test button to read operating hours on Patient Pressure meter.
  • Battery Test: Push button to show charge level on lower window of Patient Pressure meter.
  • Patient Pressure Port, Patient Air Port: 22 mm O.D./15 mm I.D. and Exhalation Valve Port.

Reach Panel Components/Connections

  • Inlet Filter, AC Power, External Battery, Communication Port (RS232), Remote Alarm, Nurse Call Port


  • Preventive maintenance every 6000 hours or recertification every 12 months, whichever is first.

Refurbished of The Puritan Bennett LP10 Ventilator

Soma Tech Intl offers the Puritan Bennett LP10 Ventilator machine up to 50% below OEM prices with the same service and warranty as new. The LP10 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the ventilator, it is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on Ventilators. If necessary, parts are replaced to make sure that all aspects of the Puritan Bennett ventilator machine are to the original engineering manufacturer specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the ventilator is working like new it undergoes a special cosmetic restoration process. The Puritan Bennett Ventilator is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Ventilator is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Ventilator contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase Puritan Bennett LP10 ventilators, If you or your facility is looking to sell your ventilator system, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Puritan Bennett ventilator takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
