Allen Advance Table
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Allen Advance Table Features

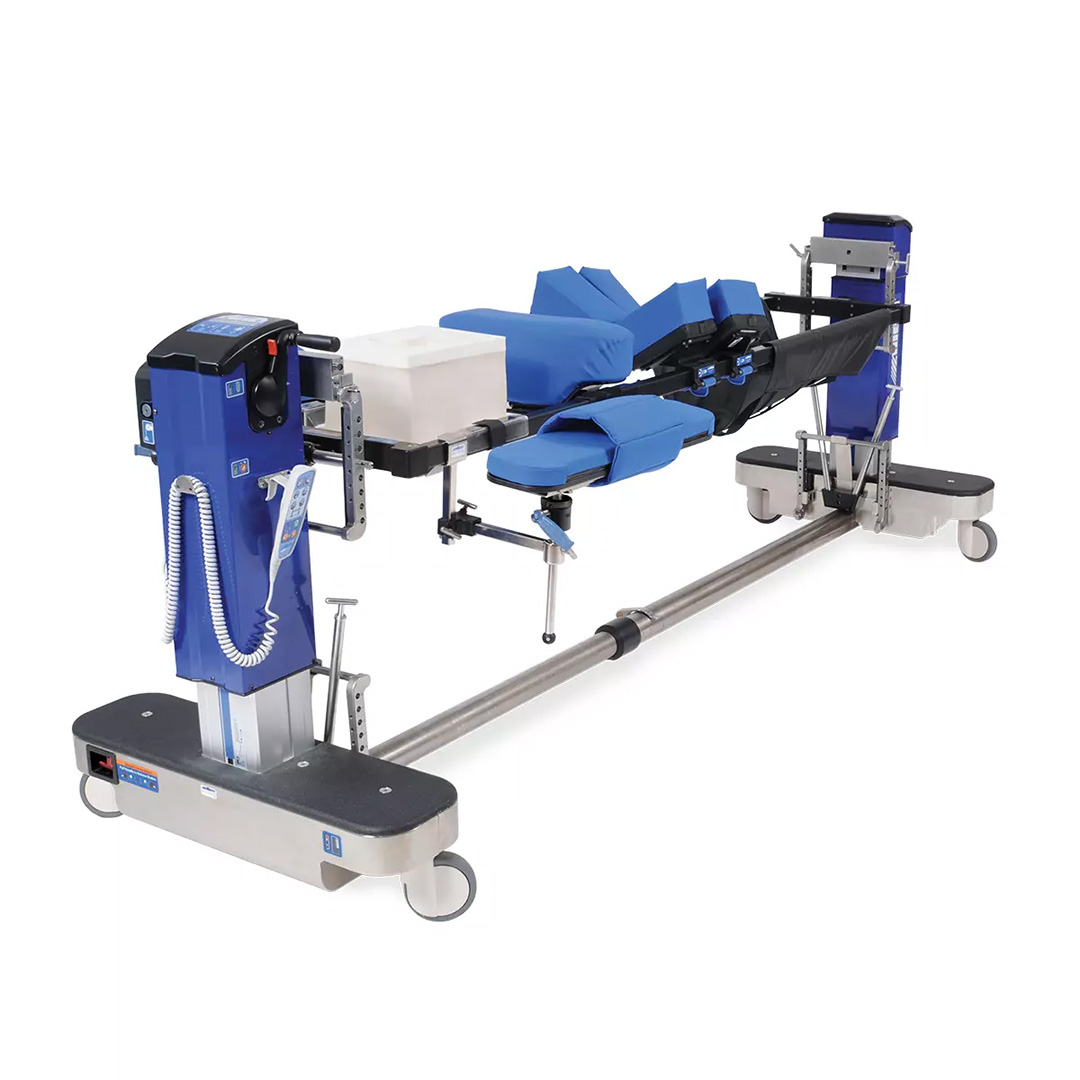

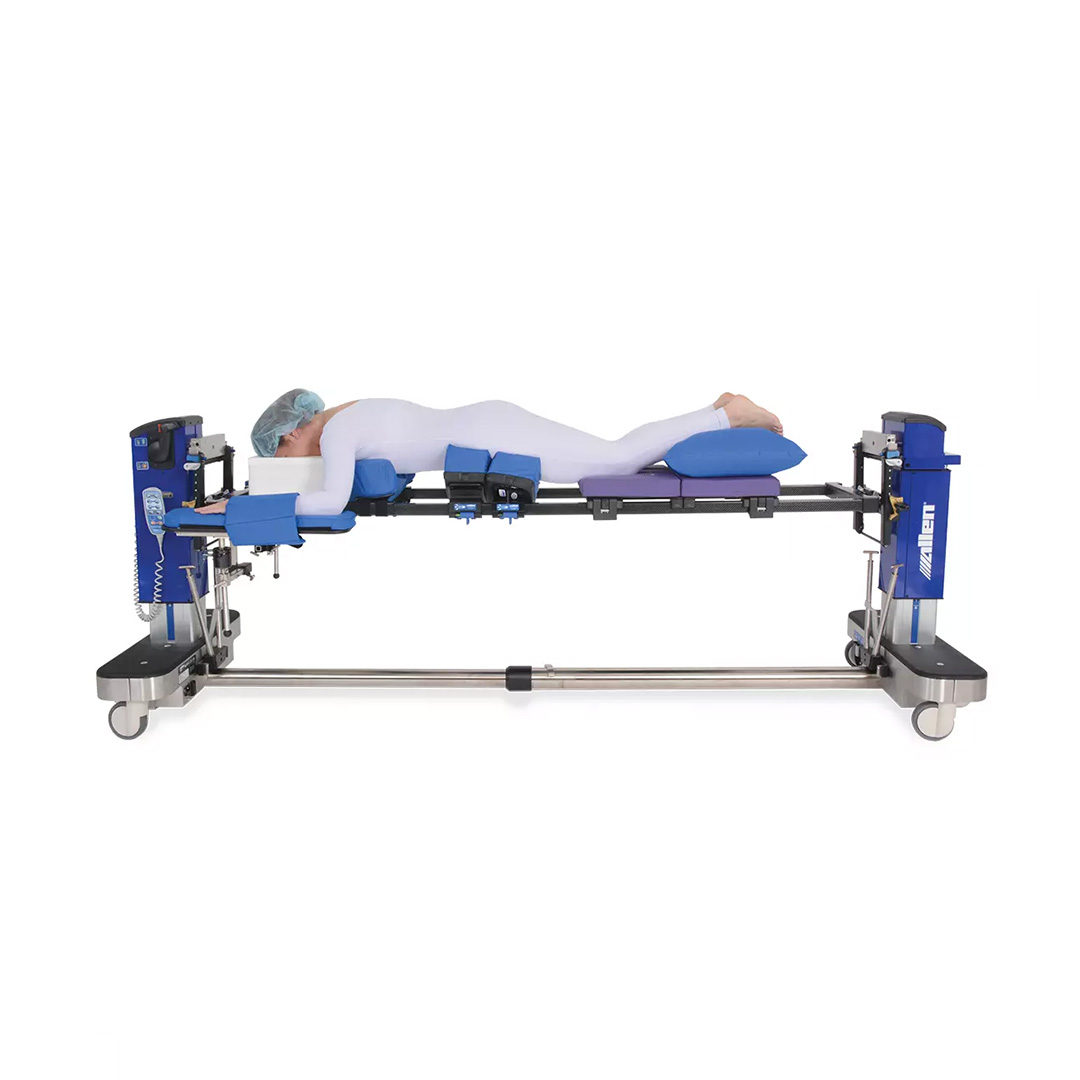

The Allen Advance Table is a premium, specialty surgical table engineered for complex spinal procedures requiring unparalleled patient positioning and safety. Designed as a dedicated spine platform, it supports patients up to 600 lbs (272 kg) and offers complete radiolucency across the entire working length of the table for advanced imaging needs. This system is built to enhance surgical workflow and safety, featuring an innovative H-Bracket design that prevents the patient support top from falling if a pin is accidentally removed. With its ability to rotate 360°, it allows for the safe repositioning of anesthetized patients from supine to prone and vice versa intraoperatively.
- Innovative H-Bracket Safety Design: Secures the patient support top to the table base, preventing it from falling to the floor if the connecting pin is accidentally pulled out, significantly enhancing patient and staff safety.
- Comprehensive Radiolucency: Offers full radiolucency through the whole working length of the table, enabling high-quality intraoperative imaging without the need to reposition the patient.
- 360° Rotation Capability: Facilitates safe and efficient patient repositioning from supine to prone (or vice versa) while the patient is anesthetized, with locking capabilities at various angles.
- Intuitive Modern User Interface: Features a clear display that shows the table’s status, including lock, unlock, tilt, and Trendelenburg positions, improving communication and ease of use for the surgical team.
- Central Locking & EZ-Roll Castors: The pendant-controlled central locking system and EZ-Roll castors simplify table movement and secure positioning within the operating room.
- Electronically Adjustable Height: The column height is electronically adjustable, allowing for precise positioning of the patient to accommodate various surgical approaches and staff ergonomics.
Dimensions
-
Length (Retracted to Fully Extended): 82.25″ to 109″ (175.3 cm to 276.9 cm)
-
Width: 32.5″ (82.6 cm)
-
Column Height (Electronically Adjustable): 25.75″ to 50″ (67.3 cm to 127 cm)
-
Table Weight (without support top): Approximately 325 lbs (147 kg)
Weight Capacity
- Maximum Patient Weight Capacity: 600 lbs (272.2 kg)
- L2P™ Platform Capacity: 400 lbs (181 kg)
Range of Motion
- Manual Rotation: 360° (lockable at horizontal and other positions)
- Electronic Rotation: 25° clockwise and counterclockwise (lockable at any point within this range)
- Maximum Trendelenburg & Reverse Trendelenburg: 10°
Power and Components
- Operation: Electro-hydraulic
- Power Supply: 230 VAC / 50 Hz
- Top Weights: Rail Top ~21 lbs (9.5 kg); Flat Top ~36.5 lbs (16.5 kg); Lateral Positioning Top ~67 lbs (30.4 kg)
Refurbished Allen Advance Table Surgical Table
Soma Tech Intl offers the Allen Advance Table up to 50% below OEM prices with the same service and warranty as new. The Allen Advance Table is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Advance Table, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on surgical tables. If necessary, parts are replaced to ensure that all aspects of the Advance Table meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer. Once the spinal table is functioning like new, it undergoes a specialized cosmetic restoration. The Advance Table is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the Advance Table is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished surgical table, contact Soma at soma@somatechnology.com or call us at 1-800-438-7662.
Soma Tech Intl actively seeks to purchase surgical tables. If you or your facility are looking to sell your Advance Table, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
