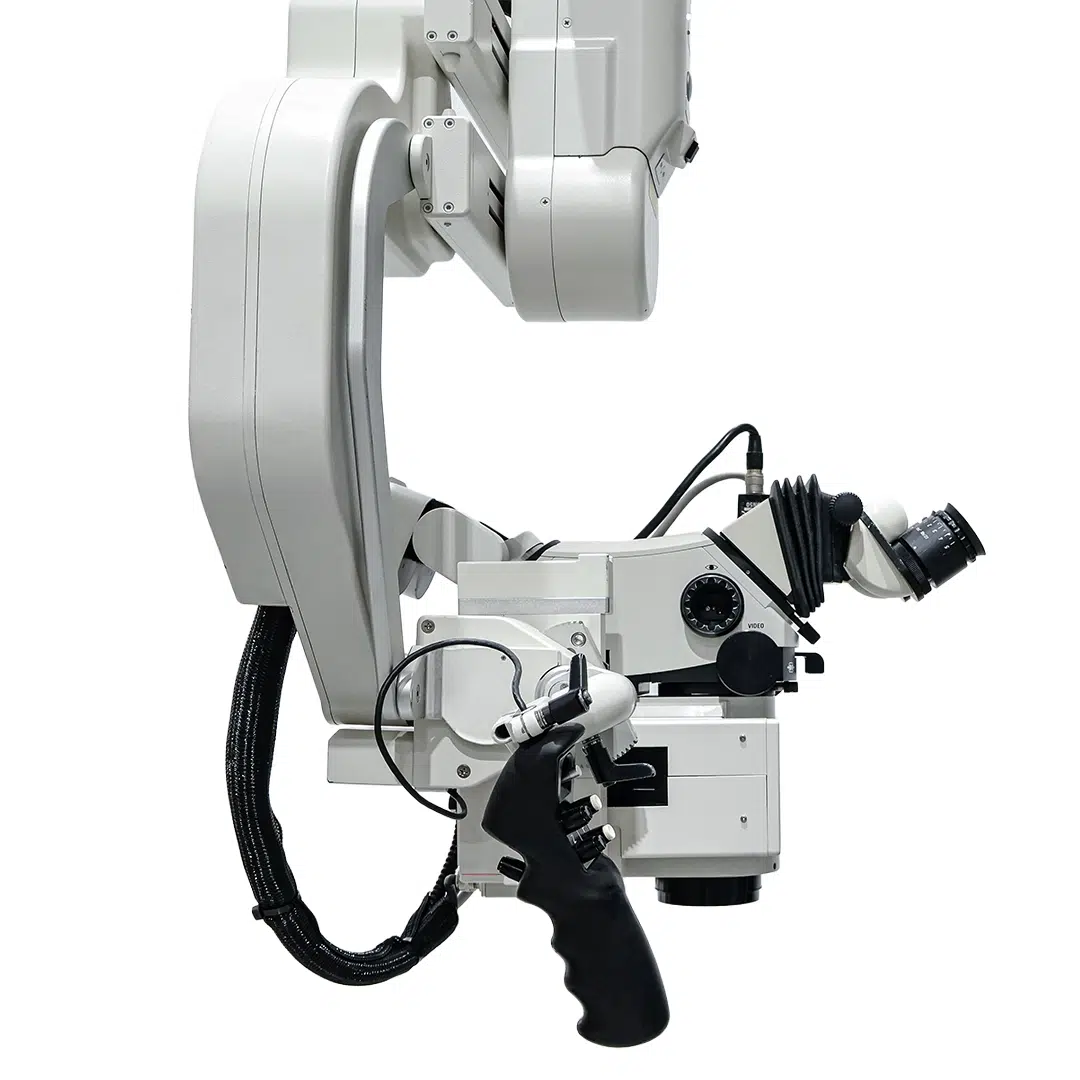

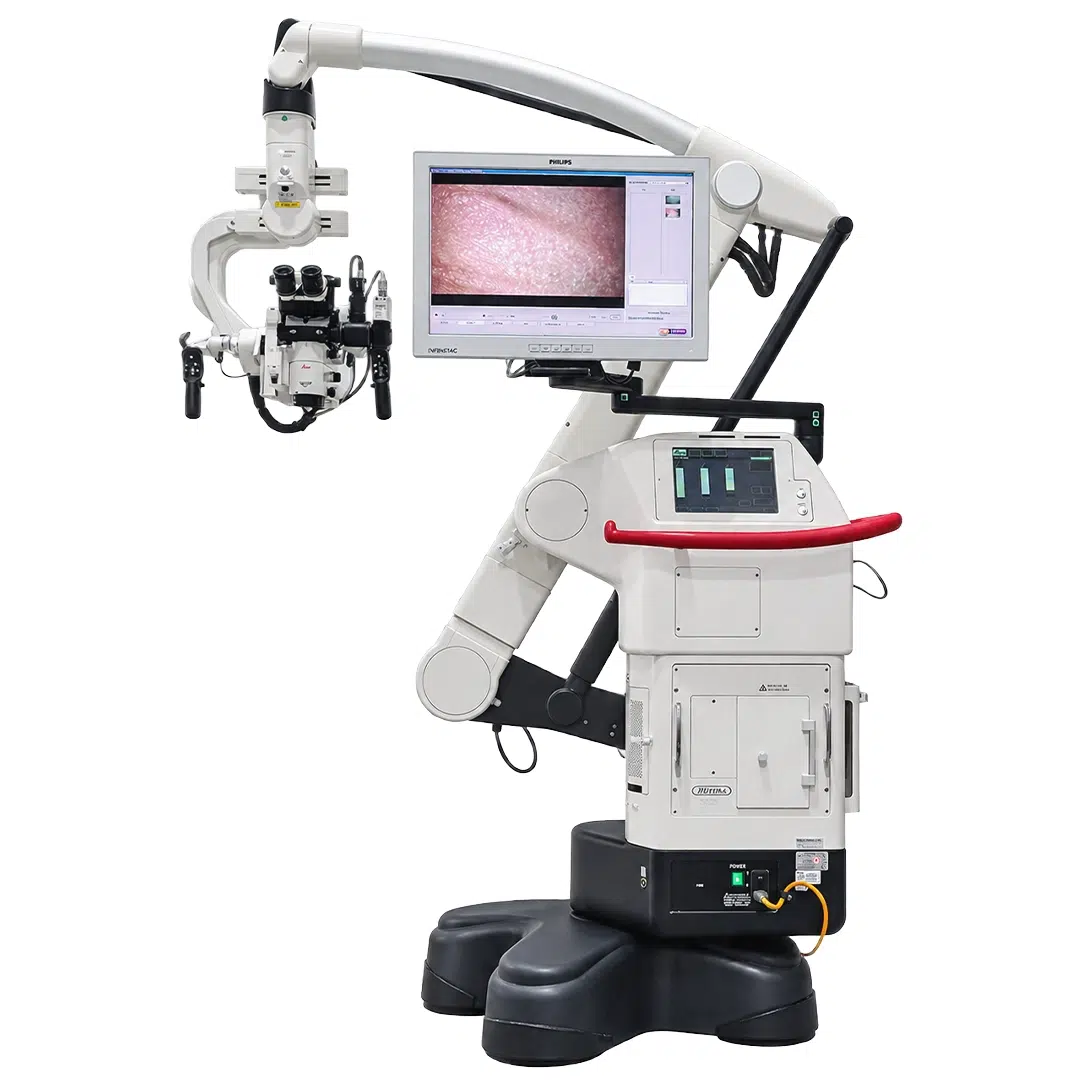

Leica M525 OH4
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Leica M525 OH4 Features
The Leica M525 OH4 offers up to 470 mm working distance, 30% greater depth of focus and light intensity than earlier Leica systems. Its dual 300W xenon sources, BrightCare, and AutoIris provide illumination while preventing tissue burns. The six-axis balancing, robotic X/Y movement, and extended overhead reach allow for positioning with minimal floor space.
- OptiChrome Optics: 207–470 mm working distance, 6:1 motorized zoom, and 1.2×–12.8× magnification for sharp, bright, high-contrast images.
- Dual Xenon Illumination: two independent 300W xenon arc lamps, with an optional 400W upgrade.
- BrightCare and AutoIris Safety: lowers light intensity as working distance decreases (by up to 60%) and narrows the illumination field to match the zoom.
- True Auto-Balance: single button balances all six axes, and the AC/BC button lets staff re-balance during surgery.
- Robotic X/Y Movement: Motorized tilt and inclination controlled by a precision joystick, foot control or mouth switch.
- Open Architecture Integration: The DI C500 dual imaging module projects MRI, CT, IGS, and endoscope images into the eyepieces, and the system supports FL800 ICG and FL400 5-ALA fluorescence.
Leica M525 OH4 Specifications
Dimensions
- Height (Parked Position): 76.6 in (194.5 cm)
- Width (Base): 28.3 in (72 cm)
- Depth (Base): 28.3 in (72 cm)
- Overall Length (Arm Extended): 105.7 in (268.5 cm)
- Weight: 705.5 lbs (320 kg), without load
Power
- Power Connection: 1600 VA, 50/60 Hz
- Voltage: 100 V, 120 V, 220 V, 240 V (+10%/-15%)
- Safety Class: Class 1
Optical Data
- Magnification: 6:1 zoom, motorized
- Magnification Range: 1.2× – 12.8× (with 10× eyepiece)
- Field of View: 0.65 in – 7.1 in (16.5 mm – 180 mm) (with 10× eyepiece)
- Focus: Motorized via multifocal lens, with manual adjustment
- Objective: Multifocal lens, 8.1 in – 18.5 in (207 mm – 470 mm) variable working distance
- Eyepieces: Widefield 10× and 12.5× for eyeglass wearers, ±5 diopter setting, adjustable eye cup
- Binocular Tube: Variable angle 0° – 180° or 30° – 150°
Illumination
- Main Light Source: 300 W xenon arc lamp via fiber optic
- Emergency Lamp: 300 W xenon arc lamp on a separate electrical system (optional 400 W xenon)
- Illumination Field: Continuously adjustable diameter, Gaussian light distribution, constant color temperature
- AutoIris: Automatic illumination field diameter synchronized with the zoom, with manual override
- BrightCare: Light intensity control synchronized with the working distance
Microscope Carrier
- Rotation of Optics: 540°
- Lateral Tilt: 50° left / 50° right
- Inclination Tilt: -30° / +120°
- XY Speed: Correlated to the zoom
- Balancing: A, B, C and D axes fully automatic, each can also be balanced manually
- Brakes: 1 for A/B axis, 1 for C axis
OH4 Floor Stand
- Type: Floor stand with six electromagnetic brakes
- Base: 28.3 in x 28.3 in (720 mm x 720 mm), four 360° rotatable casters of 5.1 in (130 mm), central foot brake
- Maximum Reach (Cantilever): 75.8 in (192.5 cm)
- Accessory Load: 14.8 – 26.9 lbs (6.7 – 12.2 kg)
- Monitor Carrier: 27.6 in (70 cm) flexible arm with 4 axes
- Controls: 10-function pistol grips, mouth switch, 12-function foot control, hand switch
- Light Source: Dual xenon arc lamps with built-in quick lamp changer
- Materials: All solid metal construction with AgProtect antimicrobial coating
Accessories and Integration
- Stereo Observer: Leica ULT500 180° stereo observer ports
- Beam Splitter: 50% / 50%, 70% / 30%
- Video Adapters: Manual, Remote, Zoom (3:1) and NIR Dual Video Adapters, c-mount, with fine focus
- Image Injection: Leica DI C500 dual imaging color module
- IGS: Open architecture interface for IGS systems
- Fluorescence: FL800 (ICG) and FL400 (5-ALA), optional
Environmental Conditions
- Operating Temperature: 50°F – 104°F (+10°C – +40°C)
- Operating Humidity: 30% – 95% relative humidity
- Storage Temperature: -40°F – 158°F (-40°C – +70°C)
- Storage Humidity: 10% – 100% relative humidity
- Atmospheric Pressure: 500 – 1060 mbar
Leica M525 OH4 Refurbishment Process
Soma Tech Intl offers the Leica M525 OH4 surgical microscope at up to 50% below OEM pricing, while providing the same service and warranty as a new unit. Each M525 OH4 microscope undergoes technical and cosmetic refurbishment to support reliable optical performance and visualization during surgical procedures. During refurbishment, our in-house biomedical engineers, experienced in surgical visualization equipment, carefully inspect and test the Leica M525 OH4. Components that do not meet the required performance standards, including optical assemblies, illumination systems, focusing and magnification mechanisms, suspension arms, control interfaces, and electrical systems, are repaired or replaced using OEM-quality parts as appropriate.
After technical refurbishment, the Leica M525 OH4 surgical microscope undergoes detailed cosmetic restoration. The system is thoroughly cleaned, cosmetic wear is addressed, exterior surfaces are refinished as needed, and labels or decals are replaced when required. Once refurbishment is complete, we prepare the Leica M525 OH4 for final quality control inspection. Soma Tech Intl operates an ISO 13485 certified facility, following quality management practices for refurbished medical equipment. If you are interested in purchasing a refurbished Leica M525 OH4 surgical microscope, contact Soma at soma@somatechnology.com or call 1-800-438-7662.
Soma Tech Intl is also actively seeking to purchase Leica M525 OH4 surgical microscopes. If your facility is upgrading surgical visualization equipment or has microscopes available for sale, our purchasing department can assist you throughout the process. Selling directly to Soma helps eliminate middleman costs and gives your facility the opportunity to receive competitive market value. Trade-in credit options may also be available. To sell your equipment, send us a message.
