Zeiss OPMI VISU 160

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Zeiss OPMI VISU 160 Features

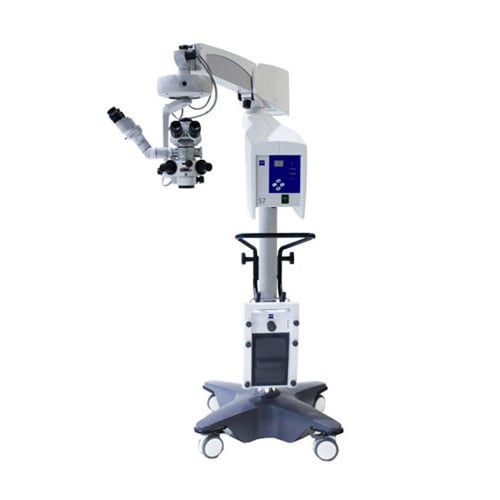

The Zeiss OPMI VISU 160 is an ophthalmic surgical microscope. The VISU series comes on the Zeiss S7 floor stand making it more compact when not in use. The VISU 160 had a slit illumination which offers rich contrast making it easier to see during surgeries. The Microscope comes with two sets of eyepieces for both the surgeon and an assistant.

The Zeiss VISU 160 can be tailored to each surgeon’s needs with DeepView functions with deep field management, BrightFlex illumination with 2° and fading 6° illumination, and ergonomically designed handles for precision adjustments.

  • A surgical microscope is designed specifically for hospitals that perform a broad spectrum of ophthalmology procedures.
  • Apochromatically corrected optics.
  • DeepView depth of field management system allows doctors to choose between optimized depth perception or maximum light transmission.
  • Integrated slot simulation offers contrast-rich detail recognition.
  • BrightFlex illumination for a clear red reflex and good light conditions.
  • Ergonomic handgrips for precise positioning.
  • Easily adjust the speed of the zoom, focus, and X-Y movements to your requirements.

Zeiss OPMI VISU 160 Specifications

Surgical Microscope

  • Apochromatic optics with T* anti-reflex multi-coating
  • Motorized zoom system. Zoom ratio 1:6, ?=0.4 to 2.4
  • Focusing range: 50 mm
  • DeepView: Depth of field management system

X-Y Coupling

  • Adjustment range 40 mm x 40 mm


  • BrightFlexTM illumination: • 6° illumination, continuous fading; • +2° illumination for red reflex
  • Integrated slit illumination
  • Vertical: width 2.5 mm
  • Horizontal: width 2.5 mm and 5 mm, movable
  • Integrated 408 nm UV cut-off filter
  • Swing-in GG475 filter to reduce the blue portion
  • Swing-in KK40 daylight filter in suspension system
  • Scleral glare reduction filter
  • Fiber light guide
  • Halogen light source (12 V, 100 W)
  • Automatic exchange following bulb failure
  • Optional: swing-in fluorescence filter in suspension system

Optical systems

  • Objective lens (mm) f=200 mm, f=175 mm, f=200 mm, f=175 mm
  • Eyepiece 10x, 10x, 12.5x, 12.5x
  • Total magnification* 3.4x – 20.4x 3.9x – 23.3x 4.3x – 25.5x 4.9x – 29.1x
  • Field of view diameter* 10.0 mm – 60.6 mm 8.8 mm – 53.0 mm 8.6 mm – 51.8 mm 7.5 mm – 45.3 mm

Suspension systems

  • S7 / OPMI VISU 160 floor stand
  • S7 / OPMI VISU 160 ceiling mount with lifting column
  • S7 / OPMI VISU 160 ceiling mount with rigid column

Refurbished The Zeiss OPMI VISU 160 surgical Microscope

Soma Tech Intl offers the Zeiss OPMI VISU 160 Surgical Microscope up to 50% below OEM prices with the same service and warranty as new. The Zeiss Microscope is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the microscope, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on Surgical Microscopes. If necessary, parts are replaced to make sure that all aspects of the sequential compression devices are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the microscope is working like new it undergoes a special cosmetic restoration process. The Zeiss VISU 160 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Zeiss VISU 160 surgical Microscope is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished surgical microscope contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase Zeiss Surgical Microscopes If you or your facility is looking to sell your microscope, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Zeiss Microscopes takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
