SchureMed Great White Robotic Stirrups

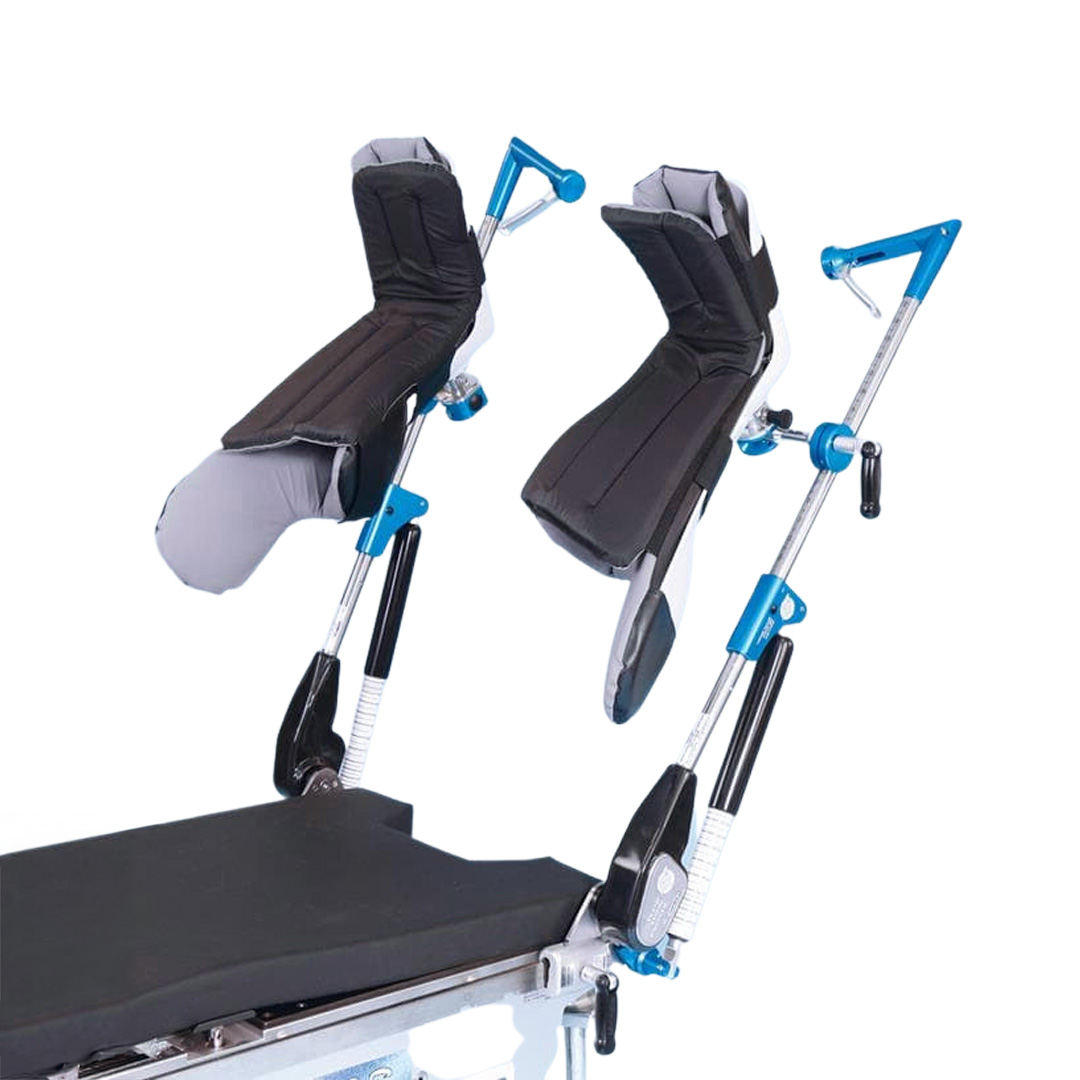

The Great White Robotic Stirrups are powered stirrups used for lithotomy positioning, mainly in robotic pelvic surgery and other minimally invasive procedures. Unlike the manual version, these use motors to adjust the leg position, so staff don’t have to make manual adjustments during the procedure. Positioning can be controlled with a wireless remote, and positions can also be saved if the same setup is used often.
These stirrups are typically used with robotic systems like the da Vinci, since the frame and boot design leave enough room for the robotic arms. That part is important, because standard stirrups sometimes get in the way depending on how the robot is docked.The leg is supported along the calf and ankle with the extended boot, which helps spread pressure more evenly. During repositioning, the movement is synchronized so both legs move together, which reduces strain on the hips and knees.
- Motorized positioning: Height, abduction, and lithotomy angle are adjusted using powered controls. Positions can be saved and reused later.
- Clearance for robotic arms: Designed so the robotic arms have enough space during procedures like prostatectomy, hysterectomy, and colorectal surgery.
- Wireless remote: Handheld remote allows staff to adjust positioning without reaching under the drapes.
- Extended boot: Supports the calf and ankle and helps reduce pressure on the peroneal nerve.
- Weight capacity: Rated up to 600 lbs.
- Position memory: Saved positions can be recalled to reduce setup time.
- Synchronized movement: Both legs move together to reduce joint strain during repositioning.
SchureMed Great White Robotic Specifications
Dimensions
- Boot Design: Extended lateral boot system for enhanced lower leg support and peroneal nerve protection.
- Rail Clamp Compatibility: Quick-connect blade mounting with included universal rail clamps (fits Olympic, European, and standard surgical table rails).
- Boot Liners: Soft Care boot liners included; removable, washable, and designed to wrap around foot, ankle, and calf.
Positioning Capabilities
- Lithotomy Angle Range: -35° (low lithotomy) to 90° (high lithotomy) (powered adjustment).
- Abduction Range: -9° (adduction) to 25° (abduction) (powered adjustment).
- Locking: Motorized locking with infinitely adjustable positioning within the range.
- Boot Movement: Boot free-floats throughout the range of motion, helping to reduce the risk of superficial nerve injury.
- Indicators: Integrated lithotomy angle and length indicators for reproducible positioning.
Patient Capacity
- Weight Capacity: 600 lbs (272 kg).
Power & Controls
- Power Source: AC-powered with external power supply; 100-240 VAC, 50-60 Hz input.
- Battery Backup: Integrated battery system for emergency repositioning during power interruption.
- Remote Type: Wireless handheld remote with sterile-field compatible operation.
- Position Memory: Multiple user-programmable memory positions for recall of pre-set patient configurations.
- Movement Speed: Variable speed control for smooth, precise positioning adjustments.
- Emergency Stop: Integrated emergency stop function accessible on both remote and control unit.
Mounting & Compatibility
- Mounting Style: Quick-connect blade mounting with included rail clamps.
- Table Compatibility: Universal clamps compatible with most standard surgical tables.
- Robotic Platform Compatibility: Optimized for use with da Vinci Surgical System and other robotic-assisted surgical platforms.
Boot & Patient Interface
- Boot Liners: Soft Care boot liners included; removable, washable, and designed to wrap around foot, ankle, and calf.
- Boot Design: Extended lateral profile for enhanced nerve protection.
- Strap System: Secure patient positioning within the boot.
Safety Features
- Load Sensing: Automatic stop upon detection of resistance during movement to prevent patient injury.
- Synchronized Movement: Coordinated motion control to minimize stress on patient hips and knees during repositioning.
- Emergency Manual Release: Manual override capability for emergency repositioning without power.
- Abduction Safety Zone: Estimated 12.5° from midline; powered system maintains safe positioning parameters.
Environmental & Physical
- Cleaning: Boot liners are removable and washable; stirrup frames and control unit designed for cleaning with standard hospital-grade disinfectants.
- Storage: Optional transport dolly available for organized storage and mobility.
- Operating Environment: Standard operating room conditions.
Refurbished SchureMed Great White Robotic Stirrups
Soma Tech Intl offers the SchureMed Great White Robotic Stirrups up to 50% below OEM prices with the same service and warranty as new. The refurbished SchureMed Great White Robotic Stirrups are not only technically refurbished but also cosmetically refurbished to make them work and look like new. When the refurbishing process starts on the Great White Robotic stirrups, they are carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on powered surgical positioning equipment. If necessary, parts are replaced to ensure that all aspects of the Great White Robotic meet the original manufacturer’s specifications. This ensures that the units operate just as they did when they left the manufacturer. Once the SchureMed stirrups are functioning like new, they undergo a specialized cosmetic restoration. The stirrups are cleaned, minor scratches and dents are repaired, they’re repainted, and new decals are added if necessary. After this thorough refurbishment, the units both function and appear like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the SchureMed Great White Robotic Stirrups are labeled patient-ready and prepared for shipment, they go through a final quality control check to confirm all aspects are working as they should. If you are interested in refurbished powered surgical stirrups, contact Soma at soma@somatechnology.com or call us at 1-800-438-7662.
