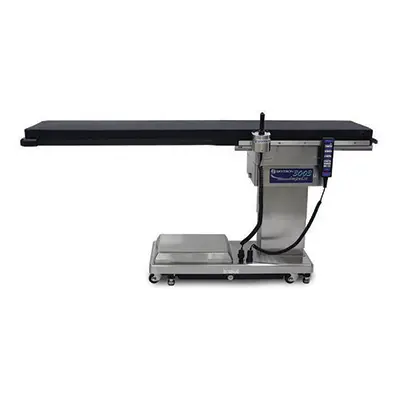

Skytron 3003 Impulse
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Skytron 3003 Impulse Features
The 3003 Impulse puts automatic control of the imaging surface right at your fingertips. Featuring joystick control, the table offers 65” of unobstructed imaging. The two-speed, multidirectional top slide takes the work out of manual maneuvers and automatically manipulates the imaging surface.
- 20” longitudinal and 8” lateral top slide
- 500 lb lift and articulation weight capacity
- Two-speed, multidirectional joystick control
- 28”- 42” adjustable table height
- 83” carbon fiber top
- 65” unobstructed imaging window
- 20° lateral tilt
- 20° Trendelenburg and reverse
- Trendelenburg
Skytron 3003 Impulse Specifications
Dimensions
- Length: 83” (2,100 mm)
- Width: 19 5/8” (500 mm)
- Width (With Side Rails): 22” (560 mm)
Adjustments Via Hand Control
- Height: 28”-42” 710-1065 mm
- Lateral tilt (left/right): 20°
- Trendelenburg: 20°
- Reverse Trendelenburg: 20°
Joystick Control
- For operation, the top button on the joystick control must be depressed
- Orientation Button: Reverse Normal
- Center Button: Moves table top to center position
- Speed: High Low
Max Permissible Load
- 500 lb (227kg) Lift
- 500 lb (227kg) Articulation
