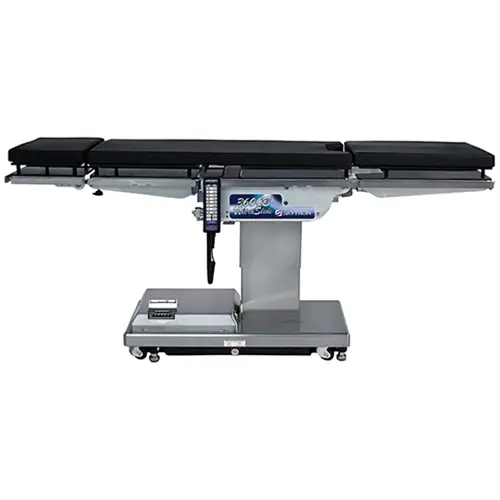

Skytron 3600B UltraSlide
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Skytron 3600B UltraSlide Features
The Skytron 3600B UltraSlide provides a 23-inch Top Slide, full table features, and optimal patient positioning for C-arm access. It has a powerful 1,000 lb. lift and 800 lb. articulation. Removable back and leg sections and Auto Beach Chair position provide flexible patient positioning options for every procedure. The UltraSlide 3600B also comes with a durable back-lit, one-touch pendant control that is easy to use and provides high visibility when working in low-light environments.
- 1,000 lb. lift, 800 lb. articulation capacity.
- 24-inch minimum table height.
- 23-inch top slide travel.
- 57-inch imaging window capacity.
- Return-to-level.
- Auto Beach Chair Position.
- Removable back and leg sections.
- Full body imaging without special accessories.
- Durable one-touch pendant control.
- Battery power.
Skytron 3600B UltraSlide Specifications
Dimensions
- Height: 24-42.5 in (61-108 cm)
- Width (Without side rails): 19.5 in (50 cm)
- Width (With side rails): 22 in (56 cm)
- Length (Without headrest): 69 in (175 cm)
- Length (With headrest): 82 in (208 cm)
- Weight: 800 lbs (365 kg)
Maximum Loads
- Lift: 1,000 lb.
- Articulation: 800 lb.
Movements
- Height: 24-42.5 in (61-108 cm)
- Lateral tilt (left/right): 30°
- Trendelenburg: 30°
- Reverse Trendelenburg: 30°
- Power Kidney Bridge: 5.75 in lift (14.5 cm)
- Back (up / down): 90°/40°
- Leg down: 15°/100°
- Return to level (anatomically correct return to horizontal position from articulated positions)
- Top (slide/head): 9.5 inches 24 cm
- Top (slide/foot): 13.5 inches 34 cm
- Flex / Reflex: 40°/90°
- Base braking (lock / unlock)
- Beach Chair
