Philips Veradius Features

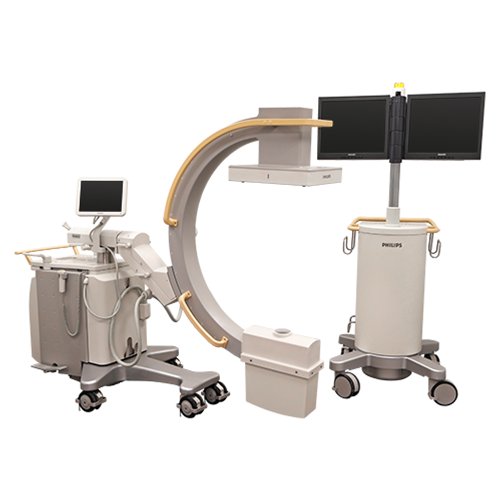

The Philips Veradius c-arm produces high-quality images for guidance and positioning during diagnostic, interventional, and surgical procedures for adult and pediatric patients. The Veradius mobile c-arm can be used in and outside the operating room and is commonly used for orthopedic, neuro, abdominal, vascular, thoracic, and cardiac applications. This Philips c-arm features a rotating anode and a built-in beam filter that reduces dosage.
- 2 high-brightness LCD monitors
- Hand switch control
- Footswitch control
- Flat detector
- C-arm rotation ± 180°
Philips Veradius Specifications
Dimensions (C-arm)
- Height: 64.05 in – 83.07 in (162.7 cm – 211.7 cm)
- Width: 100.7 in – 108.6 in (255.8 cm – 275.8 cm)
- Depth: 32.1 in (81.4 cm)
- Weight: 44.1 lbs (332.5 kg)
Dimensions (Mobile View Station)
- Height: 73.6 in – 64.6 in (187 cm – 164 cm)
- Width: 27.6 in (70.2 cm)
- Depth: 27.6 in (70.2 cm)
- Weight: 733 lbs (195 kg)
Flat Detector
- X-ray to Light Conversion: Scintillator which consists of Thallium doped Cesium Iodide
- Light to electronic charge and voltage conversion: Amorphous silicon diodes on the sensor plate convert the light into electronic charge, and TFT switches on the sensor plate release the charge towards the CSAs (Charge Sensitive Amplifier).
- Active detector size: 1560 × 1440 pixels; 287.0 mm × 265.0 mm
- Pixel Pitch: 184 μm
- Line Noise Sensor Zones Left and Right of Active Area: 116 pixels wide
- Total Number of Pixels: 1792 × 1440 (rows x columns)
- Available Modes: binned, non-binned, zoomed
- Maximum Power Dissipation: 25 W
- Cooling: Conventional cooling
- Typical DQE (0): 60 %
- Data Output Signal: DVLP
- Dynamic Range Detector: 82dB (14 bit)
Digital Image Processor
- Type: DFI-3, dedicated 16 bit video pipeline processor with real-time processing, storage and overlay
- Standard Processing: Feed-forward gain control, white compression, adaptive temporal recursive noise reduction, adaptive 2D edge enhancement, blanking, video invert, digital image rotation, mirroring, view trace, manual/auto contrast/brightness
- Processing options Subtraction, roadmapping, Trace white, Trace black, Zoom, Measure, Pixel shift, Landmarking
- Disk storage 2000-10000-20000 images (depending on commercial option)
- Maximum storage speed: 2000 images disk; up to 15 images/s; 10000 images disk; up to 23 images/s; 20000 images disk; up to 23 images/s
- External Connections at MVS: DVI-out (2 x LMON and RMON) (optional); DVI-in (1 x connected to optional internal workstation); Video out (CCIR 50 HZ or NTSC 60 Hz BNC); Video in (1× S-video); 10/100 Base T ethernet (2× hospital network and service port); USB (2 × via external hub)
- Automatic Shutter Placement: Yes
MVS Monitors
- Type: SXGA high brightness color TFT LCD
- Size: 18″ (46 cm)
- Display Matrix: 1280 × 1024 (3 × 8 bit)
- Nominal Light Output: 500 Cd/m2
- Maximum Light Output: 720 Cd/m2
- Touch screen (optional) Left monitor only, near touch, infrared (CarolTouch ELO)
Stand Monitors
- Type: LCD
- Size: 12 inch
- Position: Rotate and tilt
- Maximum Light Output: 200 Cd/m2
- Display matrix 1024 × 768
Low-Dose Fluoroscopy (LDF)
- Focus: 0.6 IEC
- kV Range: 40 to 120 kV
- mA Peak Range: 0.4 to 12.0 mA
- Maximum Power: 120 kV × 12.0 mA = 1440 W
- Maximum Continuous Loading Time: 10 min
- Pulse Rate (Pulse Per Second) (Full, half and quarter pulse rates are available)
- pulse rate 12 (1/2 = 6, 1/4 = 3)
- pulse rate 15 (1/2 = 8, 1/4 = 4)
- pulse rate 20 (1/2 = 10, 1/4 = 5)
- pulse rate 23 (1/2 =12, 1/4 = 6)
- Pulse width 10 – 27.8ms
High-Quality Fluoroscopy (HQF)
- Focus 0.6 IEC
- kV range 40 to 120 kV
- mA peak range 1.0 to 60.0 mA
- Maximum power 120 kV × 60 mA = 7200 W
- Maximum continuous loading time 30 sec for full pulse rate
- 60 sec for half/quarter pulse rate
- Pulse Per Second (PPS) (Full, half, and quarter pulse rates are available)
- pulse rate 12 (1/2 = 6, 1/4 = 3)
- pulse rate 15 (1/2 = 8, 1/4 = 4)
- pulse rate 20 (1/2 = 10, 1/4 = 5)
- pulse rate 23 (1/2 =12, 1/4 = 6)
- Pulse width 8 – 16.7 ms
High-Quality Fluoroscopy (HQF)
- Focus 0.6 IEC
- kV range 40 to 120 kV
- mA peak range 1.0 to 60.0 mA
- Maximum power 120 kV × 60 mA = 7200 W
- Maximum continuous loading time 30 sec for full pulse rate
- 60 sec for half/quarter pulse rate
- Pulse Per Second (PPS) (Full, half, and quarter pulse rates are available)
- pulse rate 12 (1/2 = 6, 1/4 = 3)
- pulse rate 15 (1/2 = 8, 1/4 = 4)
- pulse rate 20 (1/2 = 10, 1/4 = 5)
- pulse rate 23 (1/2 =12, 1/4 = 6)
- Pulse width 8 – 16.7 ms
Digital Exposure
- Focus: 0.6 IEC
- kV Range: 40 to 120 kV
- mA Peak Range: 2.0 to 60.0 mA (normal digital exposure); 4.1 to 125 mA (High power digital exposure)
- Maximum Power: 120 kV × 125 mA = 15000 W
- Time Range: 100 to 330 ms
- Waiting Time Between Loads: 2 sec (normal digital exposure); 30 sec (high power digital exposure)
