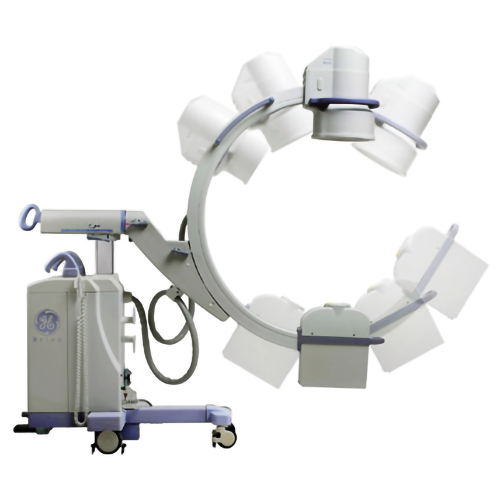

GE OEC Brivo Plus

Quotes in less than 24 hours Download Specifications

GE OEC Brivo Plus Features

The GE OEC Brivo Plus provides automated features that can improve your productivity and reduce uncertainty. The Brivo Plus delivers easy-to-use reliable results during each phase of surgery, from boot-up to cleanup. The Brivo easily brings images into sharp focus using intelligent point-and-shoot technology at the lowest reasonably achievable dose. All of the integrated automated features mean less of a learning curve, fewer retakes, and less need to move the patient for better results.

  • Fully digital camera.
  • High-performance image intensifier.
  • 16-bit image processing.
  • Premium dual leaf collimator, reducing scatter to a lower dose.
  • Great positioning and optional laser aimer for targeting.
  • Touchscreen interface.
  • 100,00 image storage capacity.
  • Membrane-covered keyboard.
  • Thumbnail image directory.

GE OEC Brivo Plus Specifications

Physical Specifications


  • System Height: 67.1″ (170.5 cm)
  • System Width: 30.7″ (78 cm)
  • System Length: 70.3″ (179 cm)
  • Weight: 573 lbs (260 kg)


  • SID: 39.4″ (100 cm)
  • Free Space in Arc: 30.7″ 78 cm)
  • Depth in Arc: 26″ (66 cm)
  • Orbital Rotation: 120° (90° underscan / 30° overscan)
  • Lateral Rotation: 410° (+205° / -12.5°)
  • Lateral Height: 40.2″ (102 cm)
  • Wig / Wag: 20° (+12.5° / – 12.5°)
  • Horizontal Travel: 8″ (20 cm)
  • Vertical Travel: 17.5″ (44.5 cm)


  • Height: 65.7″ (167 cm)
  • Width: 35.4″ (90 cm)
  • Depth: 25″ (64 cm)
  • Weight: 375 lbs (170 kg)
  • Monitor Swivel ±90°
  • Monitor Tilt Motion: +7° / -10°

X-ray System


  • 40kHz high frequency
  • 2.2kW monoblock
  • Housing heat capacity: 900,000HU
  • Housing Cooling Rate: 12,500HU/min
  • Up to 110kVp
  • Up to 20mA for radiographic film exposure
  • Continuous high-level fluoro (HLF) up to 12mA
  • Digital spot up to 16mA

X-ray Tube

  • Stationary anode X-ray tube
  • Dual focal spot:
    • Small Focal Spot: 0.6mm x 1.4mm
    • Large Focal Spot: 1.4mm x 1.4mm
  • Tube assembly total filtration 3.35mm Al
  • Anode Heat Capacity: 76,000HU
  • Maximum anode cooling rate: 37,000HU/min
  • On-screen tube heat capacity indicator

Preview Collimator

  • On-screen collimator position indication
  • Preview iris collimator
  • Preview tungsten rotatable double-leaf collimator
  • Adjusts collimators without X-ray exposure

Normal Fluoro Mode

  • kVp range: 40 -110
  • mA range: 0.1 – 4
  • Auto and manual fluoro modes

Low Dose Fluoro Mode

  • kVp range: 40 -110
  • mA range: 0.1 – 2
  • Auto and manual fluoro modes

High-Level Fluoro Mode

  • kVp range: 40 -110
  • mA range: up to 12
  • Auto and manual fluoro modes

Pulsed Fluoro Mode

  • kVp range: 40 -110
  • mA range: 0.1 – 4
  • Pulse rate: 1, 2, 4, 8 PPS
  • Auto and manual fluoro modes
  • Can reduce X-ray dose to patient and operator

Low Dose Pulsed Fluoro

  • kVp range: 40 -110
  • mA range: 0.1 – 2
  • Pulse rate: 1, 2, 4, 8 PPS
  • Auto and manual fluoro modes

High-Level Pulsed Fluoro

  • kVp range: 40 -110
  • mA range: up to 12
  • Pulse rate: 1, 2, 4, 8 PPS
  • Auto and manual fluoro modes

Digital Spot Mode

  • kVp range: 40 – 110
  • Up to 10mA for 100-120V system
  • Automatic exposure termination and automatic image save

Radiographic Mode

  • mA range: 20 (10 for 100-120V system)
  • mAs range: up to 80 (40 for 100-120V system)
  • Computer-controlled exposure time
  • Film cassette holder: 10” x 12” (25.4cm x 30.5cm)

Video Imaging System

Precise-Imaging features

  • Automatically seeks the subject anatomy anywhere within the imaging field and selects the optimum imaging technique
  • Automatically adjusts to anatomical size and location
  • Provides uniform image quality throughout the entire image
  • Simplifies operation
Smart Window
  • Dynamically senses the collimator position and automatically adjusts brightness and contrast to produce high image quality
Smart Metal
  • Automatically detects the metal in the field and optimizes image quality
  • Allows the user to adjust automatic brightness and contrast sensitivity levels to metal
  • Provides optimum image quality even when metal is introduced to the field

9” Image Intensifier

  • Tri-mode 9”/6”/4.5” (23cm/15cm/11cm) image intensifier, The central resolution (typical value at image intensifier):
    • 9” (23cm): 52 lp/cm
    • 6” (15cm): 58 lp/cm
    • 4.5” (11cm): 68 lp/cm
  • Minimum central resolution (at monitor):
    • 9” (23cm): 2.2 lp/mm
    • 6” (15cm): 3.0 lp/mm
    • 4.5” (11cm): 3.5 lp/mm
  • DQE: 65% (typical)

Tungsten Collimator

  • Denser collimator limits X-ray exposure area
  • Reduces scatter radiation
  • Improves image detail

Carbon Fiber Grid

  • 60L/cm 10:1 anti-scatter grid
  • Reduces scatter radiation effect
  • Improves image detail

Video Camera

  • High-resolution 1k x 1k CCD camera
  • Full digital interface
  • Variable gain control

Video Display

  • Dual medical 19” (48cm) monochrome LCD with anti-glare panel.
    • Tilt motion: 7 degrees up / 10 degrees down
    • Swivel motion: 180 degree
    • Viewing angle: 170 degrees horizontal and vertical
  • Maximum brightness: 1000 Cd/m2
  • Maximum contrast: 900:1
  • 1280 x 1024 high resolution
  • Digital Visual Input (DVI) interface for external monitors

Image Processing

Image Processing

  • 1k x 1k x 16-bit image processing
  • Dynamic recursive filter with adaptation to motion
    • Allows the user to adjust noise filter levels to produce high-image quality
    • Provides optimum image quality even when motion is introduced to the field
    • Automatic digital brightness and contrast control
  • Manual digital brightness and contrast control
  • Auto-adaptive non-uniformity correction
  • Image edge enhancement
  • Image negate mode
  • Image save and auto-save
  • Image swap and auto-swap
  • Last image hold (LIH)
  • Image zoom and roam
  • Left-right image reversal
  • Top-bottom image invert
  • Digital Image Rotation
    • 360-degree real-time rotation for live and static images
    • Image positioning without additional exposure
  • HIPAA SecureView
    • Password protection
    • Blank screen function
    • Delete all
  • Measurement Software
    • Distance measurement
    • Angle measurement
    • Multi-unit support (French, mm, Inch)
    • User calibration
  • Image Annotation
    • Arrows and markers
    • Comments
    • Cropping
  • 100,000 images storage

Exam Management

  • Patient information
    • Examination list
    • Customized patient information
  • X-ray DAP/Dose display & summary
  • X-ray DAP/Dose summary export & print out
  • Full DICOM interface
    • Storage & Commitment
    • Print
    • Work-list
    • Radiation Dose Structured Report (RDSR)
    • Query & Retrieve
    • MPPS
  • Wireless DICOM

Brilliant-Dose Management Platform

  • Superb imaging unit with high dose efficiency
    • High DQE (65%) image intensifier
    • 60L/cm 10:1 carbon fiber grid
    • Unique hardware & software design to get the balance of dose and image quality
    • Dynamic camera gain control for low-dose imaging
    • Full digital image processing
  • Doseless positioning
    • Laser aimer on tube and image intensifier
    • Preview collimator
    • Real-time rotation for static images
  • Provide real-time dose information
    • Dose rate, accumulative dose, DAP
    • Multi-unit support, (Gy, Rad)
  • Lower dose imaging mode for pediatrics
    • Removable grid (Optional)
    • Additional filter (Optional)
    • Low dose mode
    • Pulsed imaging mode
  • Dose summary data output & archive
  • Dose summary export & print out
  • Dose information transfer via DICOM (RDSR)

Additional Features

Other Image Storage Options

  • CD/DVD writer (Optional)
  • USB memory stick port
  • Integrated DICOM storage

Hardcopy Options

  • Integrated film/paper printer (Optional)
    • No film development required
  • DICOM printer support
    • Multi-format, 1, 2, 4 on 1
    • Multi-copy capability
  • Radiographic film cassette holder (Optional)

Pediatric Application Kit

  • Removable grid (Optional)
  • Additional filter (Optional)

Integrated Uninterruptible Power

  • Patient Image data protection
  • Orderly shutdown


  • Input power (60 Hz or 50 Hz)
    • 100V/110V/120V @ 20A
    • 200V @ 12A
    • 220V/230V/240V @ 10A

Operating Range

  • Temperature: 10° to 40°C
  • Humidity: 20%-80% non-condensing

Refurbished GE OEC Brivo Plus C-Arm

Soma Tech Intl offers GE OEC Brivo Plus C-Arm up to 50% below OEM prices with the same service and warranty as new. The GE OEC Brivo Plus is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the GE OEC Brivo Plus, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on C-Arms. If necessary, parts are replaced to make sure that all aspects of the GE OEC Brivo Plus are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the GE OEC Brivo Plus is working like new it undergoes a special cosmetic restoration process. The GE OEC Brivo Plus is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the Unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the GE OEC Brivo Plus is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished GE OEC Brivo Plus contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a GE OEC Brivo Plus. If you or your facility is looking to sell your GE OEC Brivo Plus , be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned GE OOEC Brivo Plus to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
