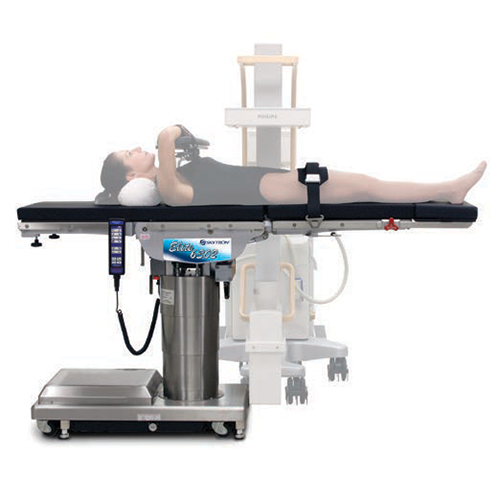

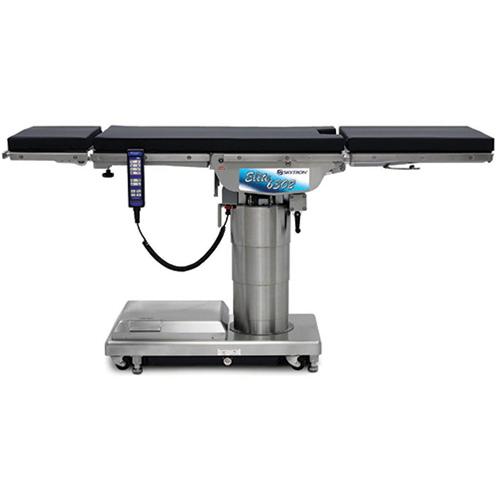

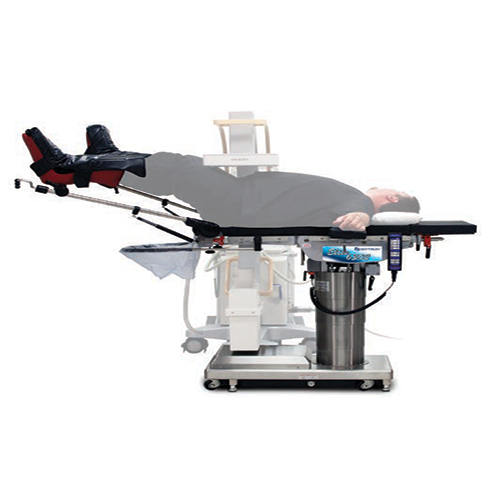

Skytron 6302 Elite

Quotes in less than 24 hours Download Specifications

Skytron 6302 Elite Features

The 6302 Elite surgical table provides up to 210° top rotation, allowing you to easily maneuver your patient according to imaging requirements, anesthesia access, and positioning preferences. This rotation eliminates the need to reverse the patient on the table, thereby improving patient and staff safety in the OR. Unlike other top rotation tables available in today’s market, the 6302’s surface turns independently of the table base, giving you maximum footroom and imaging access. The impressive 1,000 lb lift capacity makes the 6302 an ideal solution for bariatric cases.

  • 210° top rotation
  • 1,000 lb lift and 600 lb articulation weight capacity
  • Removable leg section for quick accessory attachment and positioning

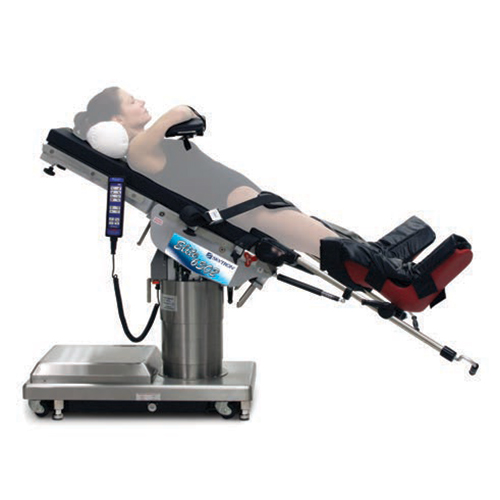

  • Power beach chair positioner for one-touch set-up
  • The durable stainless steel base is easy to clean
  • 25”-39 7/8” adjustable table height
  • 30° lateral tilt
  • 30° Trendelenburg and reverse Trendelenburg
  • Handling of hot loads

Skytron 6302 Elite Specifications


  • Length w/o headrest: 65 1/2” 1,650mm
  • Length with headrest: 78 1/8” 1,980mm
  • Width (back/seat plate): 19 5/8” 500mm
  • Width with side rails: 21 7/8” 555mm
  • Max. Permissible load: 1,000 lb (450kg) Lift; 600 lb (270kg) Articulation

Adjustments Via Pendant Control

  • Height 25 to 39 7/8” 634-1012mm
  • Lateral tilt (Left/right) 30°
  • Trendelenburg 30°
  • Reverse Trendelenburg 30°
  • Back up/down 40°
  • Leg up/down 100°
  • Return to level (Anatomically correct return to horizontal position from articulated positions)Beach Chair
  • Flex/Reflex 40°/90°

Adjustments Via Manual Control

  • Manual Kidney Bridge 4.0” Lift 100mm Lift
  • Top Rotation 210°Head Section 60° up/90° down
  • Max. Permissible load 1,000 lb (450kg) Lift; 600 lb (270kg) Articulation
