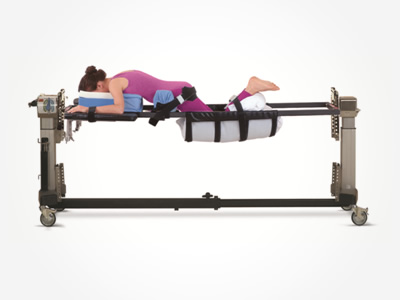

Mizuho OSI 5943 Spinal Surgery Top – Jackson Table

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Mizuho OSI 5943 Spinal Surgery Top – Jackson Table Features

The Mizuho OSI 5943 Spinal Surgery Top for the Mizuho OSI 5803 Advanced Control Base has a carbon fiber construction and provides an open frame design. It features individual positioning pads that are mounted on the Advanced Control Modular Base and support the patient in the prone position for spinal surgery. When the Spinal Surgery top is utilized in conjunction with the Radiolucent Imaging Top a patient can be easily repositioned from the supine to the prone position.

  • Carbon fiber frame provides complete radiolucency
  • Unrestricted C-arm and O-arm® access
  • 360-degree patient rotation when used in conjunction with the Radiolucent Imaging Top
  • Lateral Tilt (25 degrees) in both directions
  • Hand Pendant of the Advanced Control Base on which the Spinal Surgery Top mount controls Height, Lateral Tilt(roll), and Trendelenburg/Reverse Trendelenburg
  • Open frame reduces vena cava compression, minimizes epidural venous bleeding, and improves visualization at the surgical site
  • Customized support pads enhance the positioning of patients with varying body types

Mizuho OSI 5943 Spinal Surgery Top – Jackson Table Specifications

5803 Advanced Modular Base Dimensions

  • Height (Adjustable): 27 to 48 In (69 to 122 cm)
  • Width: 32 In (81 cm)
  • Length: 64 to 102 In (163 to 259 cm)
  • Patient Weight Capacity: 500 lbs (226 kg)

5803 Advanced Modular Base Power

  • Voltage: 120V
  • Frequency: 60 Hz

5803 Advanced Modular Base Movements

  • Trendelenburg /Rev Trendelenburg: 10°
  • Lateral Tilt (Roll): 25°

5943 Spinal Surgery Table Top Dimensions

  • Length: 84 In (213 cm)
  • Width: 17 In (43 cm)

5943 Jackson Surgical Table Common Procedures

  • Anterior/Posterior Fusions – cervical to sacrum
  • Surgical Correction of Deformities
  • Laminectomies
  • Decompressions
  • Kyphoplasties
  • Osteotomies

5943 Jackson Surgical Table Positioning Capabilities

  • Prone
  • Supine (Mount Short Supine Operating Top on frame)
