GE BK Medical Flex Focus
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
GE Flex Focus Ultrasound Features

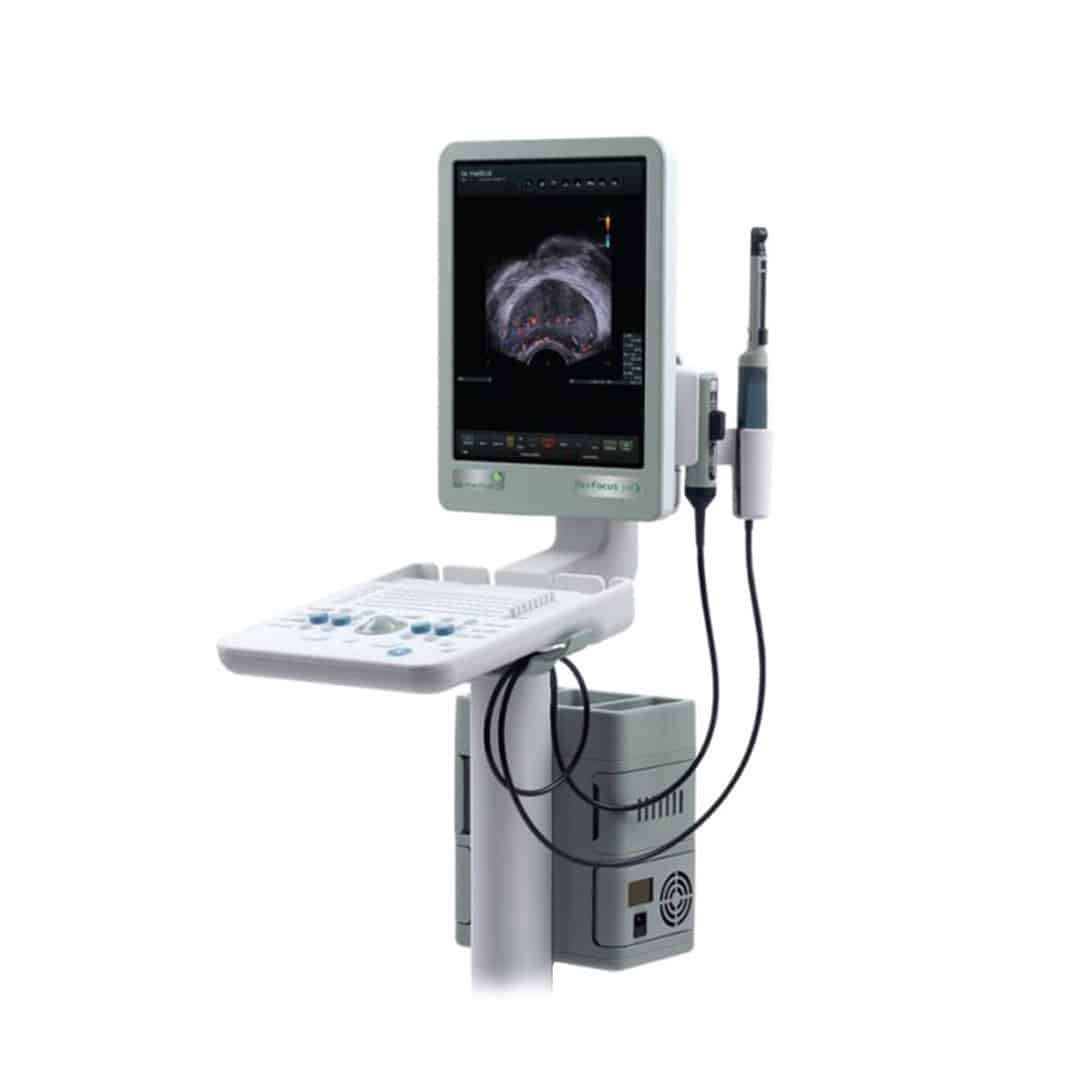

The GE BK Medical Flex Focus is an Ultrasound system built for a wide range of clinical applications. Its compact design allows it to be used in urology, anesthesia, musculoskeletal, vascular, and general imaging. The Flex Focus produces sharp, clear images with technologies such as Tissue Harmonic Imaging and Color Doppler. The interface is straightforward, and an optional battery makes it easy to move between rooms without interrupting workflow.
- Imaging Modes: Offers B-Mode, M-Mode, Color Flow Mapping (CFM), Power Doppler, and Pulsed Wave Doppler (PWD) for standard diagnostic needs.
- Monitor: 19-inch screen delivers clear image detail for more accurate assessment.
- Battery Option: Internal battery (UA1225) provides up to four hours of cordless operation.
- Transducer Support: Works with many probes, including endocavity, laparoscopic, linear, convex, and bi-plane types.
- Interface: Simple layout with a sealed keyboard that is easy to clean.
- Connectivity: DVI-I, USB 2.0, Ethernet, and audio ports allow connections to networks, printers, and other devices.
- DICOM Ready: Fully compatible with DICOM for storing, sharing, and printing imaging data.
GE BK Medical Flex Focus Specifications
Dimensions
- Height: 27.4 in (69.6 cm)
- Width: 24.8 in (63.0 cm)
- Depth: 9.8 in (24.9 cm)
- Weight: 40.8 lbs (18.5 kg)
Power
- Input Voltage: 100-240 VAC, 50/60 Hz
- Power Consumption: 180 W (typical)
- Battery Support: Optional UA1225 battery pack for cordless operation (approx. 4 hours typical use, 3 hours continuous scanning)
Display
- Screen Size: 19-inch widescreen LCD medical grade display
- Resolution: 1920 x 1200 (WUXGA)
- Adjustability: Tilt adjustable from -5° to +30°
Environmental Conditions
- Operating Temperature: 50°F to 104°F (10°C to 40°C)
- Operating Humidity: 15% to 95% relative humidity (non-condensing)
Connectivity
- Video Output: DVI-I (digital/analog) and composite/S-Video via adapter
- USB Ports: 4 x USB 2.0 ports (500mA current limit each)
- Network: 10/100/1000 Ethernet (RJ45)
- Audio: 3.5mm stereo audio in and out jacks
- Other: FireWire™ port (for future use)
Supported Transducers (Sample)
- Types: Convex, Linear, Phased Array, Mechanical, Endocavity (e.g., models 8818, 8808, 8848, 8670, 8823)
- Frequency Ranges: From 1-2 MHz to 18-6 MHz, depending on model and application.
Refurbished GE BK Medical Flex Focus Ultrasound
Soma Tech Intl offers the GE Flex Focus ultrasound up to 50% below OEM pricing, with the same service and warranty as new. The GE ultrasounds are technically and cosmetically refurbished to ensure it not only functions but also looks like new.
The refurbishment process begins with a detailed inspection and testing by our in-house biomedical engineers, all certified and experienced in ultrasound systems. Any worn or faulty parts are replaced to meet the original manufacturer’s specifications, so the system operates just as it did when first manufactured. Once fully functional, the unit goes through cosmetic restoration: it is thoroughly cleaned, minor scratches and dents are repaired, the surface may be repainted, and new decals are applied if needed.
Soma Tech Intl is ISO 13485 certified, maintaining strict quality standards for every piece of medical equipment we sell. Before the Flex Focus is shipped, it undergoes a final quality control check to ensure all functions are working properly. For inquiries about a refurbished ultrasound system, contact Soma at soma@somatechnology.com or call 1-800-438-7662.
Soma Tech Intl also purchases ultrasound systems. If your facility is looking to sell a GE BK Medical Flex Focus, our purchasing team will assist you throughout the process to ensure you receive fair value. We are fully HIPAA-compliant, and equipment is transported securely to preserve its condition. Trade-in credits for medical equipment are also available. To sell your system, reach out to us through our contact channels.
