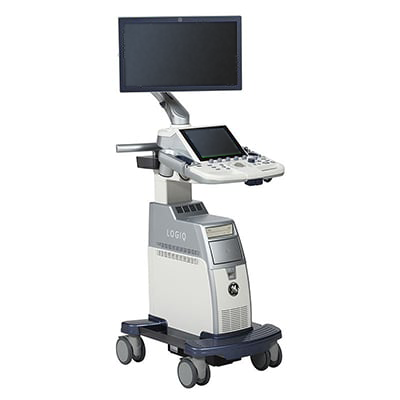

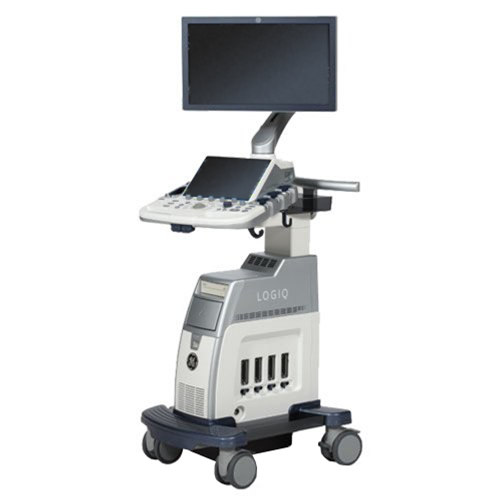

GE Logiq P9 Features

The GE Logiq P9 is a lightweight ultrasound system. Offering a wide variety of ultrasound uses including OB-GYN, Carotid, Musculoskeletal, Cardiac, Thyroid, and Rheumatoid. The Logiq P9 offers Tissue Velocity Doppler imaging, which can measure the velocity of the heart muscle through heartbeats and Doppler imaging. The ultrasound system comes with a 21.5-inch Color LCD monitor, a 10.4-inch Color touch screen, and four probe ports. Offering easy data transmission supported by both DICOM and cloud-based imaging.

  • Adjustable system to fit most ultrasound imaging needs
  • Multiple USB ports
  • Touchscreen controls for ease of adjusting parameters
  • Front and rear handles
  • Four probe ports
  • Auto Image Optimization
  • 3D/4D Obstetric imaging
  • Tissue Velocity and Tissue Doppler imaging

GE Logiq P9 Specifications


  • Height: 55.9 in (142 cm)
  • Width: 26.7 in (68 cm)
  • Depth: 39.4 in (100 cm)
  • Weight: 300 lbs (136 kg)

Electrical Power

  • Voltage: 115 Vac or 230 Vac
  • Frequency: 50I60 Hz
  • Power: Max 1010 VA with onboard peripherals
  • Maximum Thermal Output 3446 BTU/hr

Console Design

  • 3 Active Probe Ports and 1 parking slot port
  • 1 Non-Imaging Active Port
  • Integrated HDD (80 GB)
  • Integrated DVD+ R(W) / CD—R(W)
  • reintegrated MOD drive (optional)
  • On-board storage for peripherals
  • Integrated locking mechanism that provides a rolling lock
  • Integrated cable management
  • Front and read handles

User Interface – Operator Keyboard

  • Floating Keyboard: Rotation: adjustable +300 from center
  • Full-sized, backlit alphanumeric keyboard
  • Ergonomic hard key layout
  • Interactive back-lighting
  • Integrated recording keys for remote control of up to 3
  • peripheral or DICOM (optional) devices and one additional remote control for VTR


  • 15″ High-Resolution noninterlaced CRT
  • High brightness with 250cd
  • Tiff/Rotate Adjustable Monitor
  • TiIt Angle: +l— 11°
  • Rotate Angle: +I- 90″
  • Wide Image area
  • Digital brightness & contrast adjustment
  • Brightness and contrast control with a quick return to a pre-set calibrated level

Refurbished The GE Logiq P9 Ultrasound

Soma Tech Intl offers the GE Logiq P9 Ultrasound up to 50% below OEM prices with the same service and warranty as new. The GE Ultrasound is not only technically refurbished but also cosmetically refurbished to make it work and look new. When the refurbishing process starts on the ultrasound, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on ultrasounds. If necessary, parts are replaced to make sure that all aspects of the Logiq P9 are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the GE Logiq is working like new it undergoes a special cosmetic restoration process. The ultrasound is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the GE Logiq Ultrasound is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished stretcher contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase GE Logiq ultrasounds, If you or your facility is looking to sell your ultrasounds, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned ultrasound takes out the middleman in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
