GE NextGen LOGIQ e Features

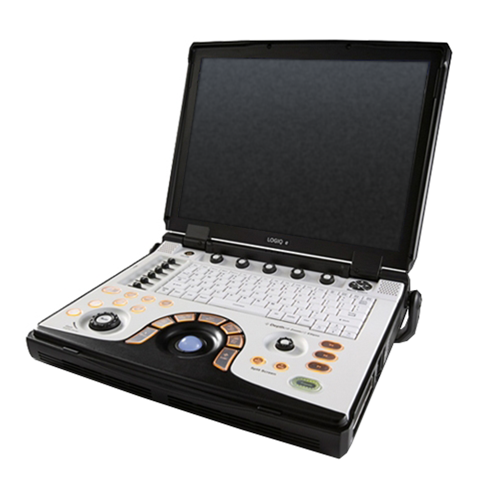

The GE NextGen Logiq E is a portable, laptop-style ultrasound system that offers high performance. The NextGen Logiq E is the latest version of the Logiq E with faster speeds and better image quality. The GE ultrasound can provide images for anesthesia, musculoskeletal, and rheumatology. The GE NextGen offers new technologies along with new transducers and probes for better images. It features a high-resolution display and a user-friendly operating system. This ultrasound was designed mainly for anesthesiology. The system comes with specific software and transducers that help you see needles. The system uses two different types of ultrasound images, one that can detect tissues and nerves, and the other that can detect metal, making needles stand when making injections in the patient.

  • Portable laptop-style ultrasound.
  • The system comes with an Intel Duo core i7.
  • Wired and wireless connectivity.
  • High-resolution 15-inch color LCD monitor.
  • CrossxBeam.
  • Speckle reduction imaging (SRI-HD).
  • Virtual convex / Virtual apex.
  • Code harmonic imaging (CHI).
  • Customizable user interface.

GE NextGen LOGIQ e Specifications

Console Dimensions

  • Height: 2.75 in (7 cm) console only / 3.94 in (10 cm) with handle
  • Width: 11.61 in (29.5 cm) console only / 13.50 in (34.3 cm) with handle
  • Length: 13.62 in (34.6 cm) console only / 14.76 in (37.5 cm) with handle
  • Weight (with battery): ~11.5 lbs ( 5.2 kg)

Console Electrical Power

  • Voltage: 100-240 V AC
  • Frequency: 50/60 Hz
  • Power: Max. 130 VA

Console Design

  • Laptop style
  • Lithium-ion battery
  • Integrated Solid State Drive
  • CPU: Intel Duo Core
  • Operating System: Microsoft Windows 7

Docking Cart Dimensions

  • Height: 26.6-31.2 in (81-95 cm)
  • Width: 15.4 in (47 cm)
  • Depth: 20.2 in (61.7 cm)
  • Weight: 125.7 lbs. (57 kg) (without accessories)
  • Weight: 141.1 lbs. (64 kg) (with extended life battery)

Operator Keyboard

  • Alphanumeric keyboard
  • Ergonomic hard keys
  • Backlight keys

Display Screen

  • 15 in high-resolution color LCD
  • Resolution: 1024 x 768
  • Horizontal/Vertical Viewing Angle: +/-80 degree
  • Brightness adjustment
  • Integrated speakers
  • Audio volume adjustment
  • Interactive dynamic software menu

Console Interfaces

  • DC power input
  • USB 2.0: 3
  • LAN 10/100/1000 base
  • Docking cart connector
  • HDMI


  • Abdomen
  • Cardiac
  • Gynecology
  • Musculoskeletal
  • Obstetrical
  • Nerve Block
  • Pediatric
  • Small Parts
  • Urological
  • Vascular
  • Rheumatology
  • Emergency Medicine
  • Cardiac intra-operative

Transducer Types

  • Convex Array: C1-5-RS
  • Micro convex Array: 8C-RS, E8C-RS
  • Linear Array: 9L-RS, 12L-RS, L4-12t-RS, L8-18i-RS, L10-22-RS
  • Phased Array: 3Sc-RS, 6S-RS
  • TEE: 6Tc-RS

Operating Modes

  • B-Mode
  • M-Mode
  • Anatomical M-Mode/Color M-Mode (AMM) (optional)
  • Color Flow Mode (CFM)
  • Power Doppler Imaging (PDI)
  • High-Res PDI (optional)
  • Continuous Wave Doppler (CWD) (optional)
  • Pulse Wave Doppler (PWD)
  • Tissue Velocity Image/Tissue Velocity Doppler (TVI/TVD) (optional)
  • Needle Recognition

Refurbished GE NextGen Logiq e Ultrasound

Soma Tech Intl offers the GE NextGen Logiq E ultrasound up to 50% below OEM prices with the same service and warranty as new. The GE ultrasound is not only technically refurbished but also cosmetically refurbished to make it work and look new. When the refurbishing process starts on the ultrasound, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on ultrasounds. If necessary, parts are replaced to make sure that all aspects of the NextGen Logiq E are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the GE Logiq is working like new it undergoes a special cosmetic restoration process. The ultrasound is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the GE Logiq Ultrasound is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished stretcher contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase GE Logiq ultrasounds, If you or your facility is looking to sell your ultrasounds, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned ultrasound takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Tech Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
