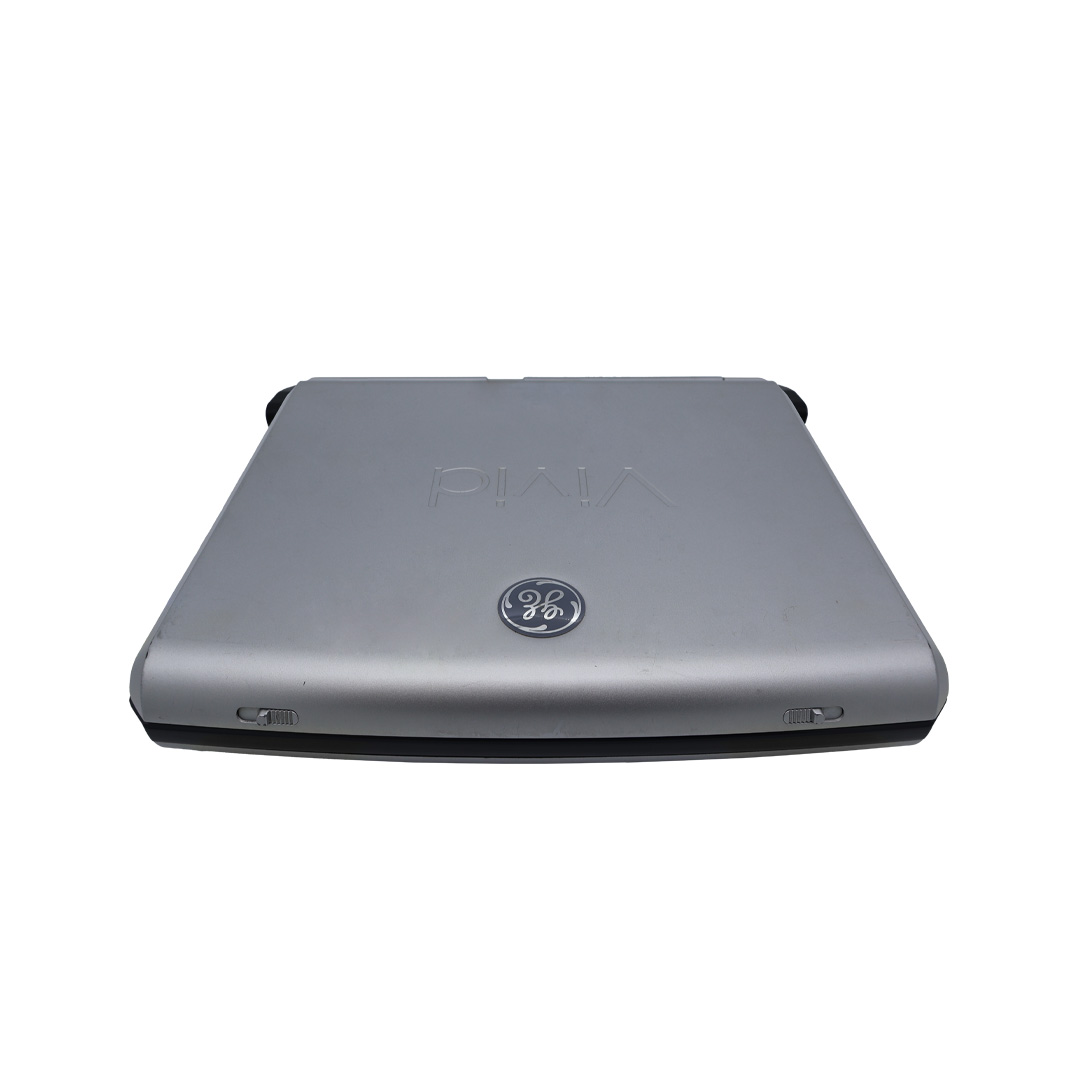

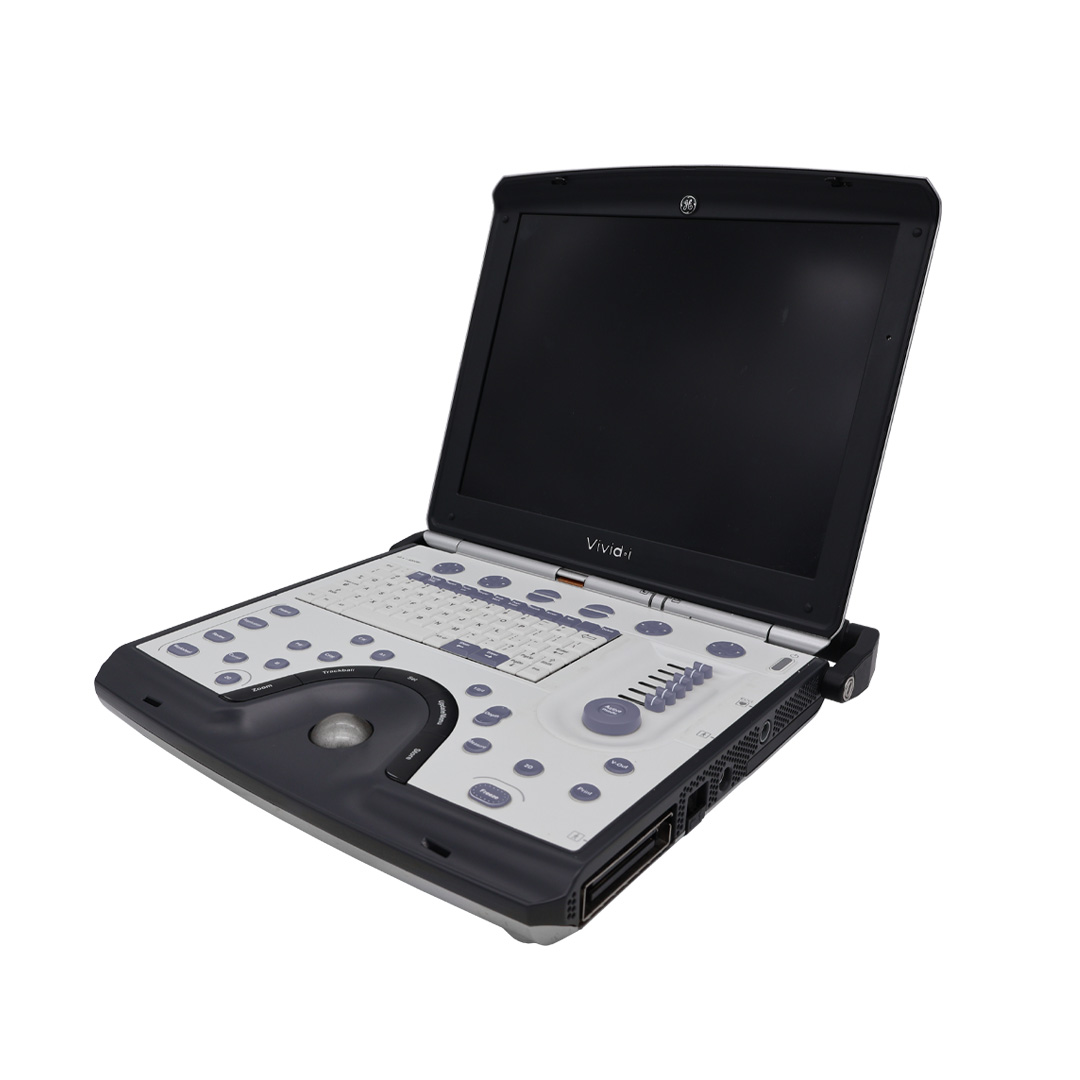

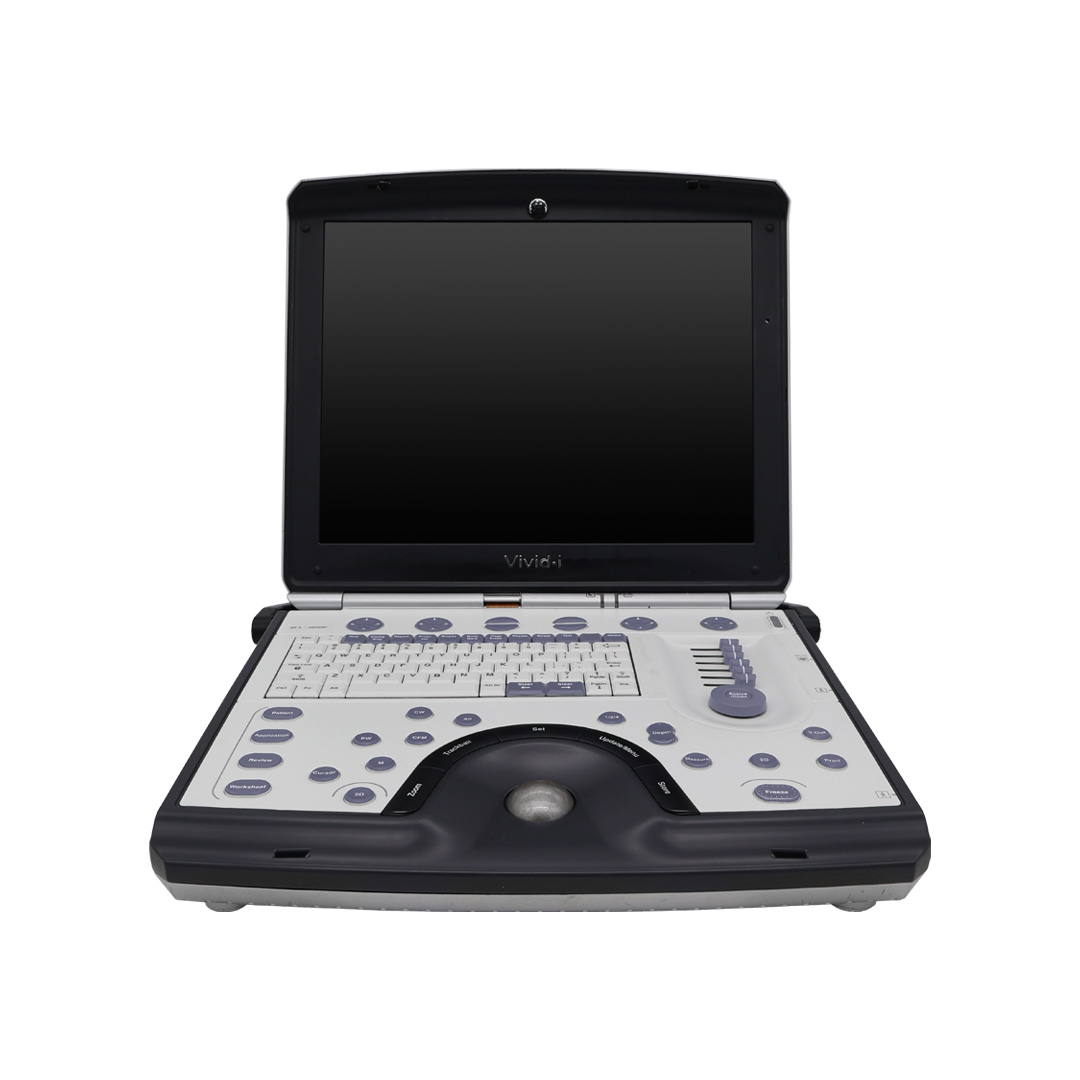

GE Vivid i
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included. Download Specifications
GE Vivid i Features
The GE Vivid I is a portable, high-performance cardiovascular ultrasound system designed for comprehensive cardiac imaging. Combining advanced imaging capabilities with portability, it enables accurate diagnostics in a variety of clinical settings.
- High-Resolution Imaging: Offers exceptional image quality with advanced ultrasound technology
- Portability: Lightweight and compact design
- Advanced Cardiac Applications: Includes a range of cardiac imaging applications
- User-Friendly Interface: Features an intuitive user interface with customizable settings and quick access to frequently used functions
GE Vivid i Specifications
Dimensions
- Height: 2.3 in (5.8 cm)
- Width: 14 in (35.5 cm)
- Depth: 13 in (33.0 cm)
- Weight: 11 lb (5 kg)
- Screen Size: 15 in (38.1 cm)
- Screen Resolution: 1600×1200
Electrical Power
- Battery or mains-line operation
- Input rating (AC Adapter): 100-240 V AC /130 VA
- Frequency: 50/60 Hz
Inputs and Outputs
- Video out: SVGA
- Connectors:
- USB-2 (to support CD-RW, video printers, MOD, USB flash cards, etc.)
- LAN Ethernet
- USB wireless LAN device
- DC power input
Safety Conformance
Built to meet the requirements of:
- EN/IEC/UL 60601-1 /CSA 22.1 601-1, Class I, Type B with BF or CF Applied Parts
- EN/IEC60601-1-1
- EN/IEC 60601-1-2, Class A
- EN/IEC 60601-2-37
- NEMA UD-2, UD-3
- The European Medical Devices Directive (MDD)
- 93/42/EEC (CE Mark)
DICOM Network Connectivity
Provides communication to a DICOM server and DICOM printer. Includes:
- Ethernet network connection
- Verification AE
- Image Export AE (Network storage)
- Modality Worklist AE
- Storage to DICOM serverDICOM structured report SCU for cardiac and vascular
- Storage Commitment
- Performed procedure step
- Verify: verifies an active connection between the scanner and another DICOM device
- Support of two patient ID fields in DICOM
- Allows printing images via a DICOM Printer
- DICOM media: read/write images in DICOM format
Modes of Operation
2d-mode
- M-mode
- Anatomical M-mode
- Color Doppler
- Color Angio
- Color M-mode
- Spectral Doppler
- Blood Flow Imaging (BFI)
- Tissue Velocity Imaging / Tissue Tracking
- Automated Ejection-Fraction Calc
Wideband Probes
Phased Array Sector Probes:
- 3S-RS – 1.5 – 3.6 MHz
- 5S-RS – 2.0 – 5.0 MHz
- 6S-RS – 2.7 – 8.0 MHz
- 7S-RS – 3.5 – 8.0 MHz
- 10S-RS – 4.5–11.5 MHz
Linear Array Probes:
- 8L-RS – 4.0 –13.0 MHz
- 9L-RS- 3.5 –10.0 MHz
- 12L-RS – 6.0 –13.0 MHz
Convex Array (Curved) Probes:
- 4C-RS – 1.8 – 6.0 MHz
- 8C-RS – 4.7 –11.0 MHz
Convex Array Transvaginal Probe:
- e8C-RS – 4.0 –11.0 MHz
Intra-operative Probes:
- i12L-RS – 5.0 – 13.0 MHz
Doppler Pencil Probes:
- 2D(P2D)-RS – 2.0 MHz
- 6D(P6D)-RS – 6.0 MHz
Multiplane Transesophageal Phased Array Probes
- 6Tc-RS 2.9 – 8.0 MHz
- 9T-RS 4.0 – 10.0 MHz
Intra-Cardiac Echo (ICE) Catheters:
- ACUSON AcuNav™10F – 4.5 – 11.5 MHz
- ACUSON AcuNav™8F – 4.5 – 11.5 MHz
- SoundStar™ 3D Ultrasound Catheter – 4.5 – 11.5 MHz
Supported Applications
- Adults Cardiac
- Pediatrics Cardiac
- Vascular
- Pediatric General
- Neonatal Cephalic
- Transcranial (adult cephalic)
- Fetal heart
- Abdomen
- Gynecological
- Obstetrical
- Musculoskeletal including Superficial
- Small Parts
- Breast
- Nerve Imaging
- Coronary
- Intraoperative
- Intracardiac and Intraluminal
- Echocardiography (ICE)
Refurbished of The GE Vivid i Ultrasound
Soma Tech Intl offers the GE Vivid i Ultrasound up to 50% below OEM prices with the same service and warranty as new. The GE Ultrasound is not only technically refurbished but also cosmetically refurbished to make it work and look new. When the refurbishing process starts on the ultrasound, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on ultrasounds. If necessary, parts are replaced to make sure that all aspects of the Vivid i are to the original engineering manufacturer’s specifications. This ensures that the unit works the same way it originally left the manufacturer. After the GE Vivid is working like new it undergoes a special cosmetic restoration process. The ultrasound is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment they sell. Before the GE Vivid Ultrasound is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished stretcher contact soma at [email protected] or call us at 1-800-GET-SOMA.
Soma Tech Intl is actively looking to purchase GE Vivid ultrasounds, If you or your facility is looking to sell your ultrasounds, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned ultrasound takes out the middleman in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also allows trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
