GE Vivid IQ 4D

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

GE vivid IQ 4D Features

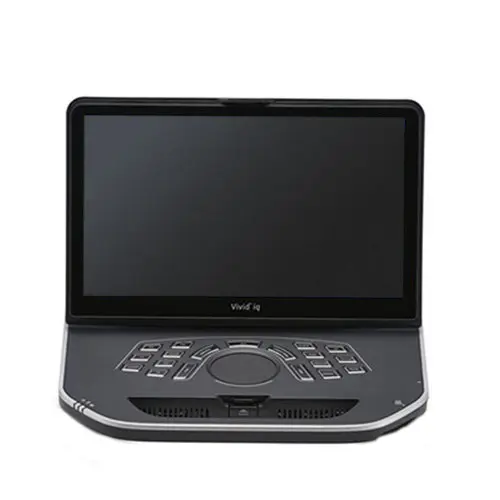

The GE Vivid IQ 4d is a Portable laptop-style ultrasound system. The Vivid IQ 4D is a system that can support a variety of applications including; transesophageal, peripheral vascular, fetal/OB, abdominal adult, pediatric, small organ, cephalic, and musculoskeletal. The Vivid IQ was initially designed specifically for Cardiac Ultrasound. Other applications The compact lightweight ultrasound system comes with a 15.6-inch touchscreen monitor and can connect up to four different transducers at one time. The Vivid IQ Ultrasound comes standard with cardiac imaging tools such as Tissue Velocity, Tissue Tracking, Tissue Synchronization, Strain Rate, AutoFF, AFI, and Raw Data. The Ultrasound system runs on battery power and can provide four continuous hours of imaging between charges. The GE VIVId IQ provides superior-quality of diagnostic imaging.

  • Portable – 10% lighter, 10% thinner than Vivid q
  • Reliable – Rugged, cleanable design built for tough conditions
  • Easy to use – Intuitive touchscreen and fewer keystrokes
  • Convenient – New cart for better management of accessories
  • Advanced – 4D TEE, ICE 3, and other powerful capabilities

GE Vivid IQ 4D Specifications


  • Height: 64 mm (2.5”)
  • Width: 390 mm, (15.35”)
  • Depth: 362 mm (14.25”)
  • Weight with battery: 5.2 kg (11.5 lbs)

Electrical Power

  • Voltage: 100-240 VAC
  • Frequency: 50/60 Hz
  • Power: max. 130 VA
  • Operating System – Windows 7

Cart Dimensions

  • Height: 835 – 1115 mm (32.9” – 43.9”)
  • Width: 524.9 mm (20.7”)
  • Depth: 552.3 mm (21.7”)
  • Weight: 41 kg (90 Ib)

Cart Design

  • Three USB ports
  • Six probe holders
  • Four probe cable hooks
  • Charge box (optional ) – to charge up to three batteries and to scan more than 180 min with four fully charged batteries
  • Multi-probe box (optional ) – three RS, one DLP to support 6VT-D

Display Monitor

  • 15.6” widescreen full High-Definition (HD) flicker-free LCD display with full touch ability
  • Ergonomic FlexFit design with adjustable typing angle and flexible view angle
  • Resolution: 1920 x 1080 pixels, full HD
  • Fold down and lock mechanism for transportation
  • The screen can be adjusted in different angles for scanning mode, typing mode, and closing, allowing to optimize the viewing angle in each position
  • Backlight adjustable

Automated Function Imaging

  • Assesses and quantifies ventricle longitudinal wall contraction ( both segmental and global) using speckle tracking technology. Presents the complete left ventricle with all segments in one quick, comprehensive bulls-eye view. (optional on the VIVId IQ4D and the Vivid IQ Premium only)

Refurbished GE Vivid IQ 4D Ultrasound

Soma Tech Intl offers the GE Vivid IQ 4D Ultrasound up to 50% below OEM prices with the same service and warranty as new. The GE Ultrasound is not only technically refurbished but also cosmetically refurbished to make it work and look new. When the refurbishing process starts on the ultrasound, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on ultrasounds. If necessary, parts are replaced to make sure that all aspects of the Vivid IQ are to the original engineering manufacturer’s specifications. This ensures that the unit works the same way it originally left the manufacturer. After the GE Vivid is working like new it undergoes a special cosmetic restoration process. The ultrasound is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment they sell. Before the GE Vivid Ultrasound is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished stretcher contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase GE Vivid ultrasounds, If you or your facility is looking to sell your ultrasounds, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned ultrasound takes out the middleman in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also allows trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Tech Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
