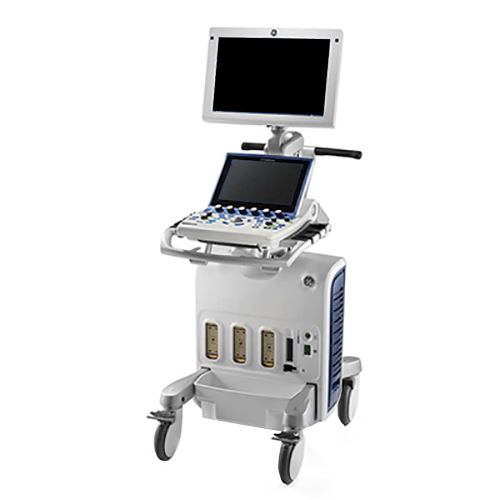

GE Vivid S60

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

GE Vivid S60 Features

The GE Vivid S60 is a full-featured Ultrasound system. The advanced Architecture for the Vivid S60 offers robust tools and technologies for cardiac imaging, with sound image quality. The ultrasound system offers 4D tee imaging with the M5Sc-Dclear probe. The Vivid s60 system is mainly used for Cardiovascular imaging. But the Ultrasound can also provide imaging for; stress echo, abdominal, peripheral vascular, pediatrics, cephalic, small parts, musculoskeletal, urology, redolent, transesophageal, obstetrics, gynecology, coronary, LVO contrast, and nerves. The GE vivid S60 is an ergonomically designed system with a 19-inch HD LCD monitor and a 12-inch touch-screen control screen. The compact, lightweight design of the GE Vivid ultrasound system makes it easy to bring the system to the patient.

  • Excellent visualization quality in 2D, color flow, and Doppler
  • Excellent spatial resolution and detail
  • New capabilities including automated quantification of the LV
  • Flex Fit – Adjust the control panel and monitor for comfort and convenience
  • Easy mobility with smart standby
  • Small footprint
  • 12.1” touchscreen
  • 19” LED monitor with articulating arm

GE Vivid S60 Specifications


  • Height: 54.4 – 66.7 in (138 – 168 cm)
  • Width: 21.4 in (54 cm)
  • Depth: 30.2 in (76 cm
  • Weight:161 lb (73 kg)

Electrical Power

  • Nominal input voltage: 100-240 VAC, 50/60 Hz
  • Rated Power consumption: 500 VA

Operating system

  • Windows 7

Touch Screen

  • 12-inch ultra-high-resolution, widescreen format, color, multi-touch LCD screen
  • Interactive user-configurable dynamic software menu
  • Backlight adjustment – automatic by light sensor or manual
  • Touch-panel control of TGC sliders
  • Touch-panel control content can be set to routine or extended usage

LCD Monitor

  • 19″ widescreen High-Definition (HD) flicker-free LCD
  • 256 shades of gray and 16.7 million simultaneous colors available
  • Articulated monitor arm
  • LCD translation (independent of console) – 160 mm horizontal bidirectional – 100 mm vertical height adjustment – Swivel to any viewing direction
  • Fold down and rotation lock mechanism for transportation
  • The horizontal viewing angle of more than 170°
  • Resolution: 1680 x 1050 pixels
  • Automatic or manual digital brightness and contrast adjustment for excellent viewing in different ambient light conditions (light sensor)
  • Tint and backlight adjustments
  • Separate adjustment for external monitor brightness/contrast
