Mindray TE5
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

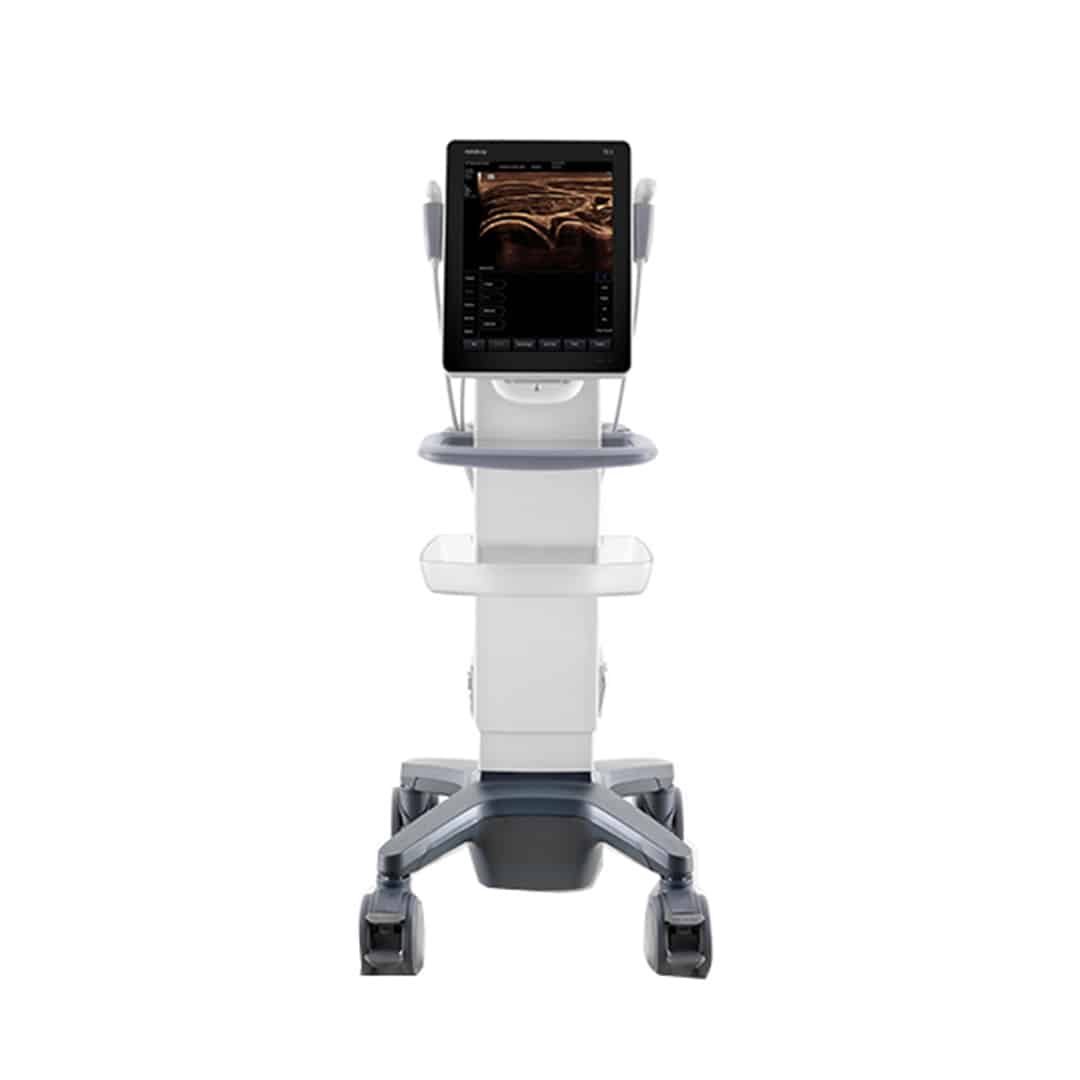

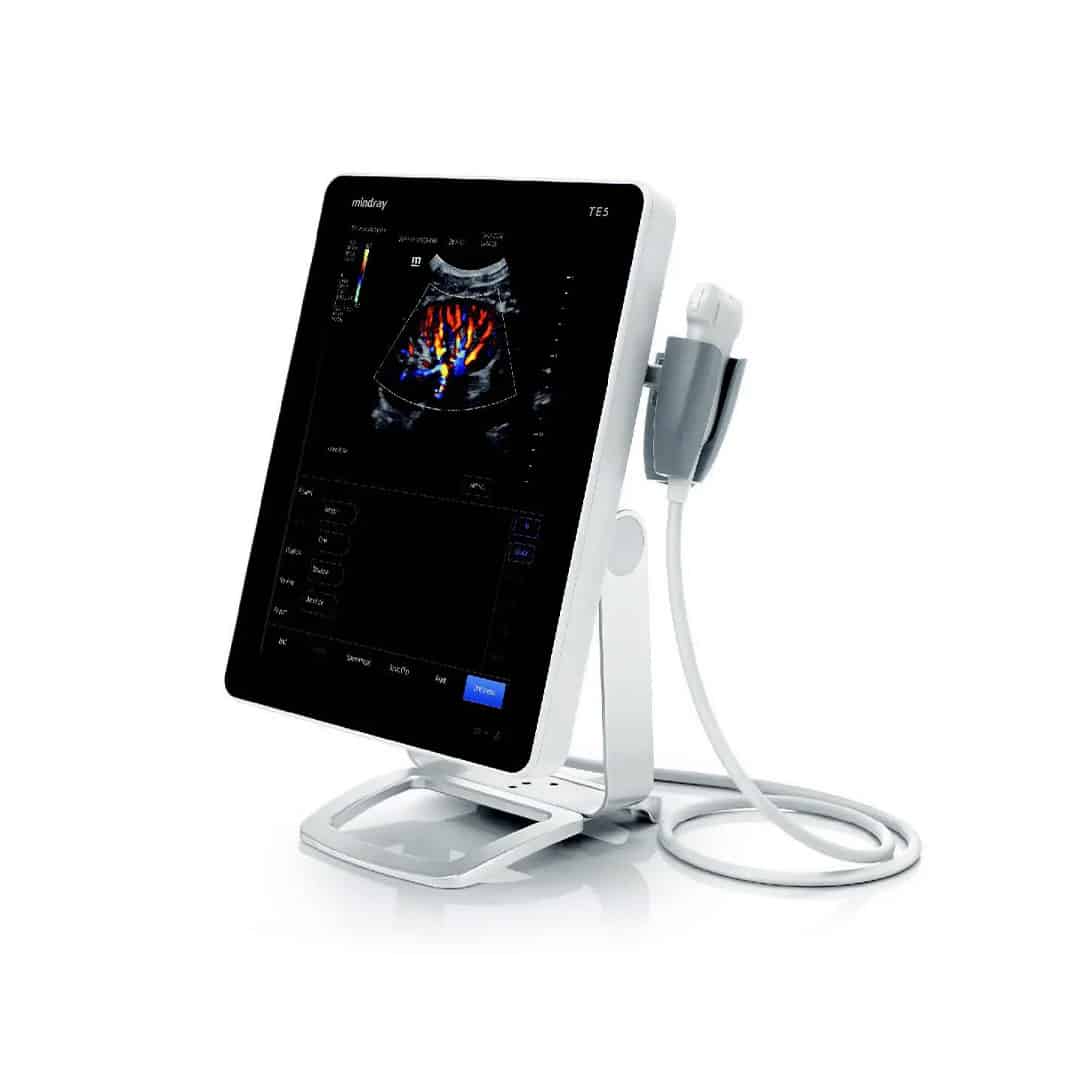

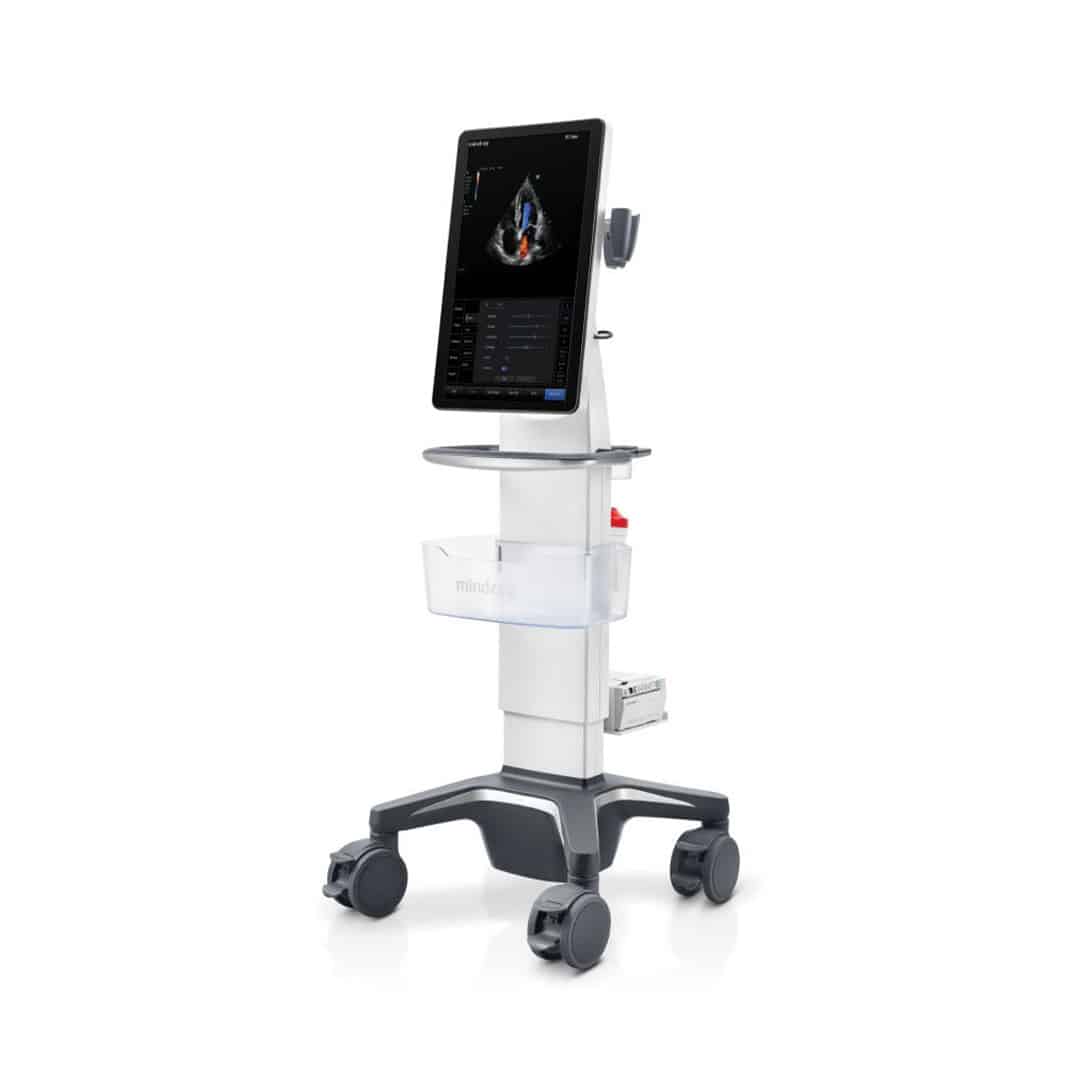

Mindray TE5 Ultrasound System Features
The Mindray TE5 ultrasound is a compact yet versatile color Doppler unit designed for a range of clinical applications, including emergency medicine, musculoskeletal exams, obstetrics/gynecology, and vascular imaging. It features an easy-to-use 15-inch touchscreen display with advanced imaging modes to give medical providers the information they need to make accurate diagnostics and informed decisions. With a lightweight design and multiple connectivity options, the TE5 is suited for both stationary and point-of-care use.
- Advanced imaging modes include B-Mode, tissue harmonic imaging, color/power Doppler, and pulsed wave Doppler for detailed and versatile scanning.
- 15-inch touchscreen interface offers a high-resolution LED display with multi-gesture controls for easy image adjustment.
- Lightweight, portable design measures just 11.6 x 15 x 3.8 inches and weighs under 18.1 pounds for easy mobility between care areas.
- Multiple transducer compatibility supports curved, linear, and phased array probes with three active ports.
- Battery-powered operation provides over two hours of scanning time, making it practical for bedside and mobile use.
Mindray TE5 Ultrasound System Specifications
Dimensions
- Width: 11.6 in (29.5 cm)
- Height: 15 in (38 cm)
- Depth: 3.8 in (9.7 cm)
- Weight: 18.1 lb (8.2 kg) with battery and one probe
Display
- Type: 15″ LED
- Resolution: 768 x 1024
- Viewing Angle: 85° horizontal/vertical
- Frame Rate: 60Hz
Power
- Input: 100-240V AC, 50/60 Hz
- Battery Runtime: >2 hours continuous scanning
- Charge Time: <4 hours (full charge)
Environmental
- Operating Temp: 32°F to 104°F (0°C to 40°C)
- Storage Temp: -4°F to 131°F (-20°C to 55°C)
- Humidity: 30-85% RH (operating), 20-95% RH (storage)
- Ingress Protection: IP56 (dust/water resistant)
Imaging Performance
- Processing Channels: Up to 55,296
- Frame Rate: Up to 1000 fps (B-mode)
- Harmonic Imaging: PSH™ technology
- Cine Memory: 32,346 frames max
- Storage: 128GB SSD (~354,313 images)
Refurbished Mindray TE5 Ultrasound System
Soma Tech Intl offers the Mindray TE5 Ultrasound System up to 50% below OEM prices with the same service and warranty as new. The refurbished TE5 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the TE5, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on ultrasound systems. If necessary, parts are replaced to ensure that all aspects of the TE5 meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer.
Once the TE5 is functioning like new, it undergoes a specialized cosmetic restoration. The system is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the TE5 is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished ultrasound system, contact Soma at soma@somatechnology.com or call us at 1-800-438-7662.
Soma Tech Intl actively seeks to purchase ultrasound systems. If you or your facility are looking to sell your Mindray TE5, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
