Siemens ACUSON Freestyle
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Siemens ACUSON Freestyle Features

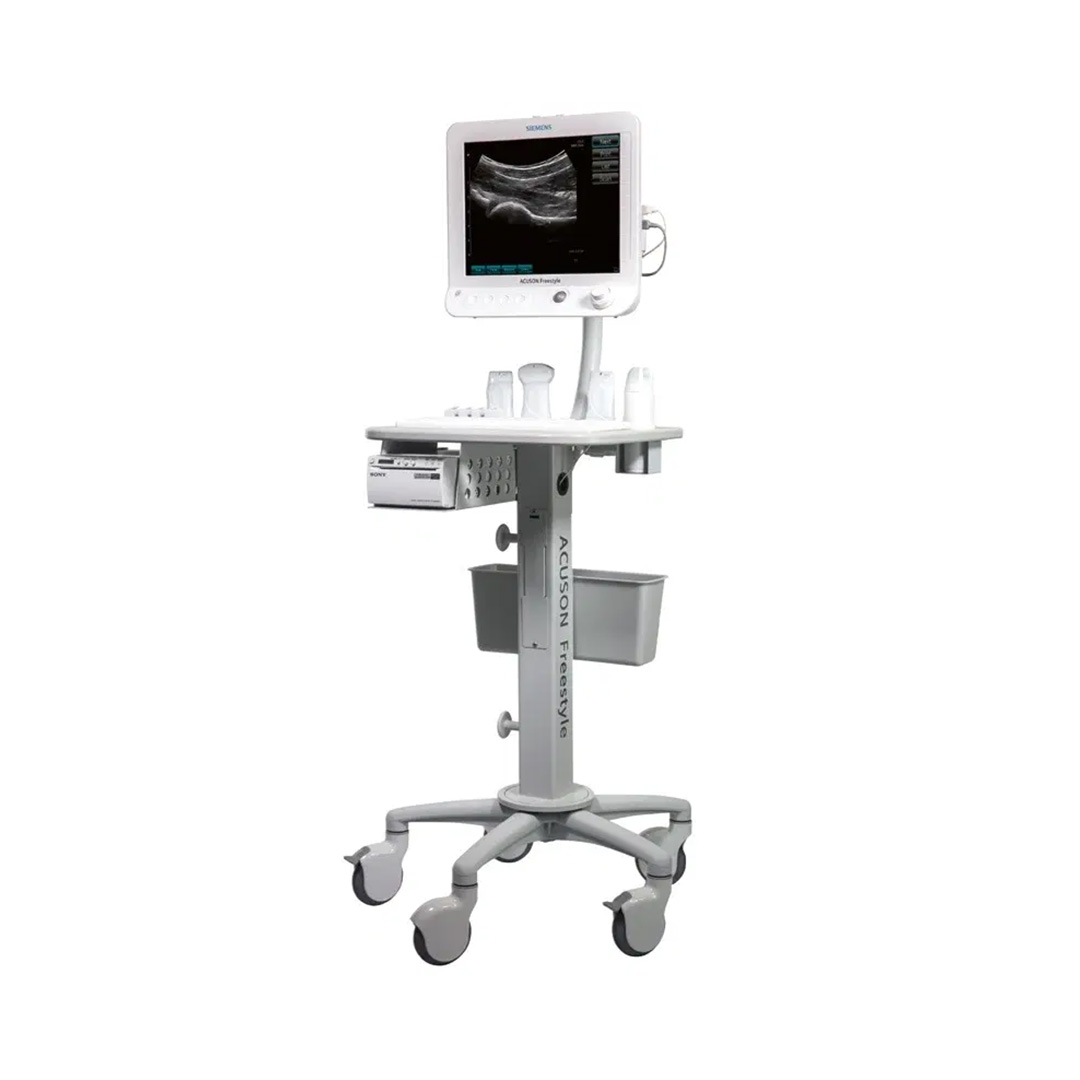

The Siemens ACUSON Freestyle is a point-of-care ultrasound system with wireless transducers operating over a proprietary 7.8 GHz ultra-wideband radio. The system consists of a 15-inch display console and detachable, battery-powered transducers that communicate wirelessly up to 3 meters from the console. It supports B-mode, Color Flow Doppler Velocity Mode, and Color Flow Doppler Power Mode. The system stores up to 100,000 image frames on 16 GB solid-state memory and supports DICOM 3.0 connectivity for PACS integration.
- Wireless Transducer Operation: Proprietary ultra-wideband radio enables cable-free scanning up to 3 meters from the console.
- Battery: Provides up to 90 minutes of continuous scanning per charge with dual integrated chargers.
- Integrated Transducer Controls: Capacitive softkeys and slider on the transducer allow direct system control during scanning.

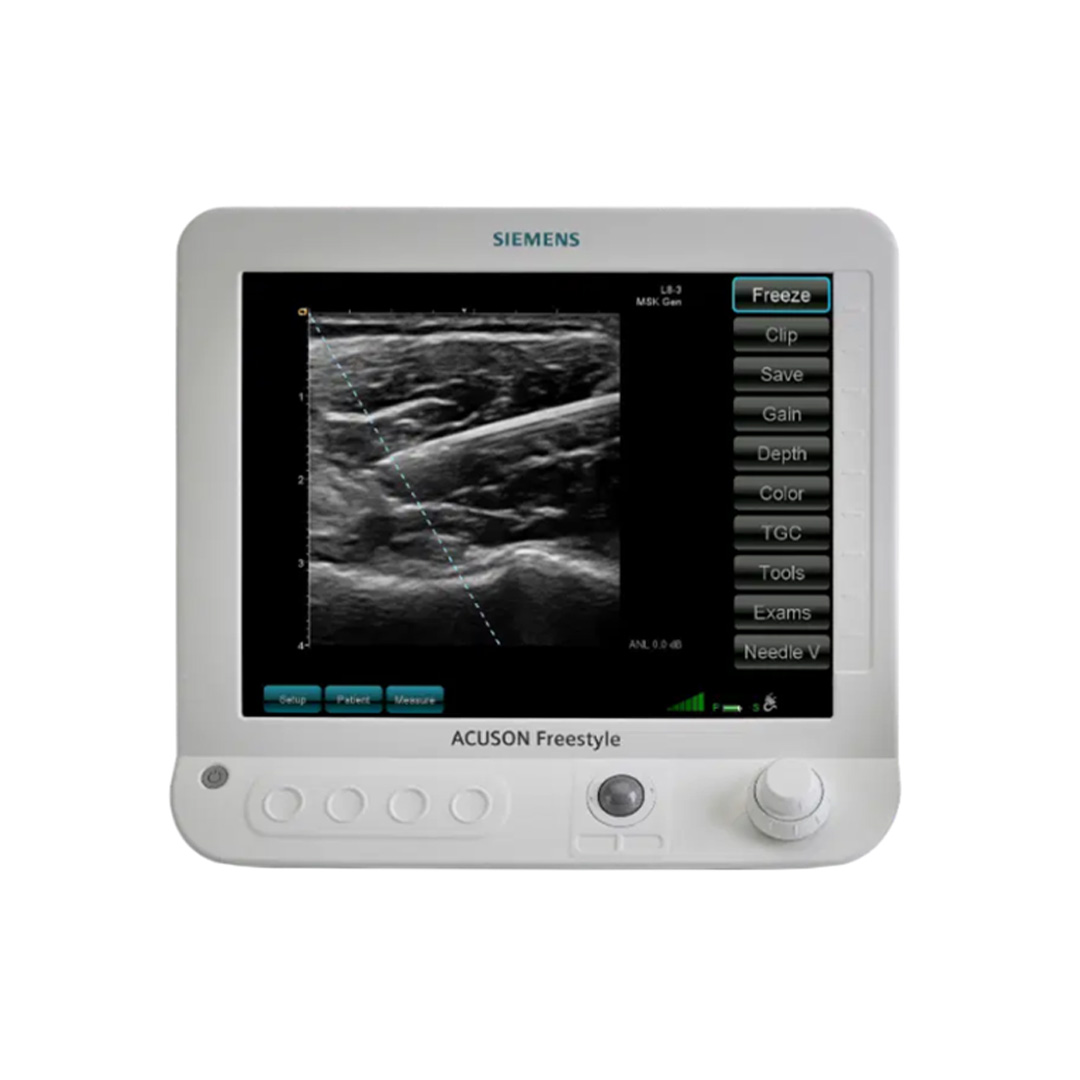

- 15-Inch Display Console: High-bright LED LCD with 1024 x 768 resolution in a compact, lightweight form factor.
- Pixelformer Image Processing: Beam-free synthetic aperture architecture focuses at each individual pixel.

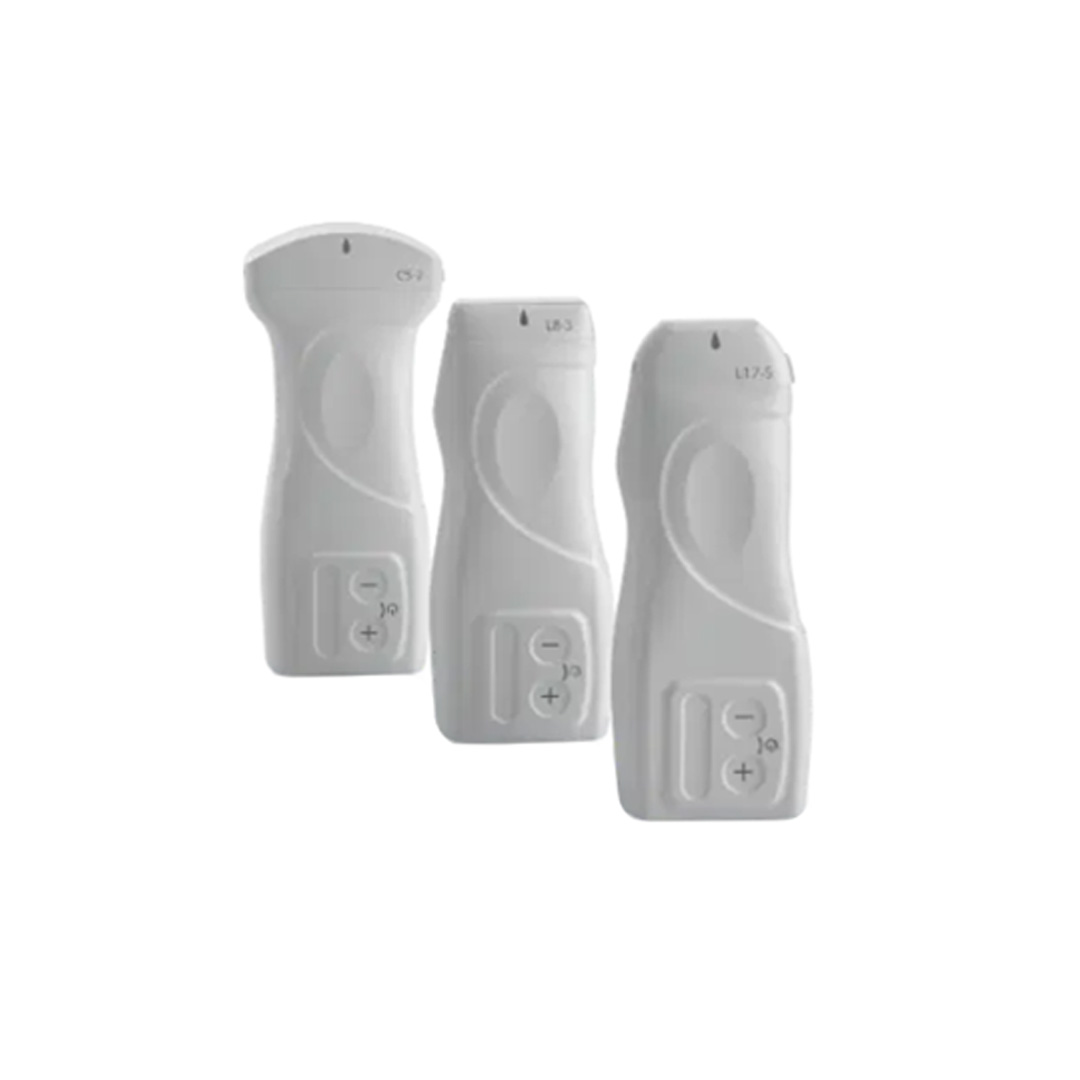

- Three Transducer Options: Interchangeable L8-3 linear, L13-5 linear, and C5-2 curvilinear transducers.
- Data Storage and Connectivity: 16 GB solid-state storage with DICOM 3.0, wired Ethernet, and 802.11 b/g wireless networking.
- Flexible Mounting: Console supports roll stand, tabletop, or wall-mountable configurations.
Siemens ACUSON Freestyle Specifications
Dimensions
- System Console Height: 335 mm (13.2 in)
- System Console Width: 373 mm (14.7 in)
- System Console Depth: 121 mm (4.8 in)
- System Console Weight: 4.8 kg (10.5 lbs)
Display
- Screen Size: 15 inches (38.1 cm) diagonal
- Display Type: High-bright LED LCD
- Resolution: 1024 x 768 pixels
- Features: Energy-saving display power management; high contrast ratio; wide viewing angles
Power
- Line Voltage: 100 – 240 V (50/60 Hz)
- Power Consumption: Maximum 0.08 kVA (may vary with configuration)
- Maximum Heat Output: 273 BTU/hr
Environmental Conditions
- Operating Temperature: +10° to +40°C (50° to 104°F)
- Operating Humidity: 10 to 75% (non-condensing)
- Atmospheric Pressure Range: 700 to 1060 hPa (525 to 795 mm Hg) or up to 3050 m (10,000 ft)
Transducer Specifications
- L8-3:
- Array Type: Linear
- Number of Elements: 128
- Depth Range: 2.5 – 9.0 cm
- Frequency Bandwidth: 3.0 – 8.0 MHz
- Footprint: 38.4 mm x 5.0 mm
- Modes: B-Mode, Color Doppler, Amplitude Doppler
- Needle Guide Kit available
- L13-5:
- Array Type: Linear
- Number of Elements: 128
- Depth Range: 2.0 – 6.0 cm
- Frequency Bandwidth: 5.0 – 13.0 MHz
- Footprint: 25.6 mm x 4.0 mm
- Modes: B-Mode, Color Doppler, Amplitude Doppler
- Needle Guide Kit available
- C5-2:<
- Array Type: Curvilinear
- Number of Elements: 128
- Depth Range: 8.0 – 24.0 cm
- Frequency Bandwidth: 2.0 – 5.0 MHz
- Footprint: 13.0 x 67.2 mm (60.0 mm radius of curvature)
- Field of View: 64°
- Modes: B-Mode, Color Doppler, Amplitude Doppler
Wireless Specifications
- Frequency Band: Proprietary 7.8 GHz ultra-wideband radio
- Minimum Bandwidth: 500 MHz
- Maximum Scanning Distance: Up to 3 meters from transducer to system console
- Wireless Networking: IEEE 802.11 b/g (Wi-Fi)
- Bluetooth: Bluetooth 2.0 Class 2 for bidirectional control data communication
Data Storage
- Memory Type: 16 GB solid-state flash memory
- Storage Capacity: Approximately 100,000 image frames
- Scroll Memory: Up to 512 frames
- Cine Capture Length: Up to 18 seconds
Imaging Controls
- Depth Range: 2 – 24 cm (transducer dependent)
- Gain Settings: 16 settings (B-mode)
- Near Gain: 10 settings
- Post Processing: 5 settings
- Dynamic Range: 3 settings
- Spatial Compounding: 4 settings
- Speckle Filter: 9 settings
- Color Gain: 16 settings
- Processing Channels: Up to 2,048 channels
System Input/Output
- Ethernet: RJ45 (10BaseT/100BaseT)
- USB: 2 x USB-A
- Video Output: VGA (15-pin D-sub miniature) 1024 x 768, 60 Hz/p>
- Transducer Cable Adapter: 1
Refurbished Siemens ACUSON Freestyle Ultrasound
Soma Tech Intl offers the Siemens ACUSON Freestyle Ultrasound System up to 50% below OEM prices with the same service and warranty as new. The Siemens ACUSON Freestyle is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the ACUSON Freestyle, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on ultrasound systems. If necessary, parts are replaced to ensure that all aspects of the ACUSON Freestyle meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer. Once the ultrasound system is functioning like new, it undergoes a specialized cosmetic restoration. The ACUSON Freestyle is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the ACUSON Freestyle is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished ultrasound system, contact Soma at soma@somatechnology.com or call us at 1-800-438-7662.
Soma Tech Intl actively seeks to purchase ultrasound systems. If you or your facility are looking to sell your ACUSON Freestyle, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
