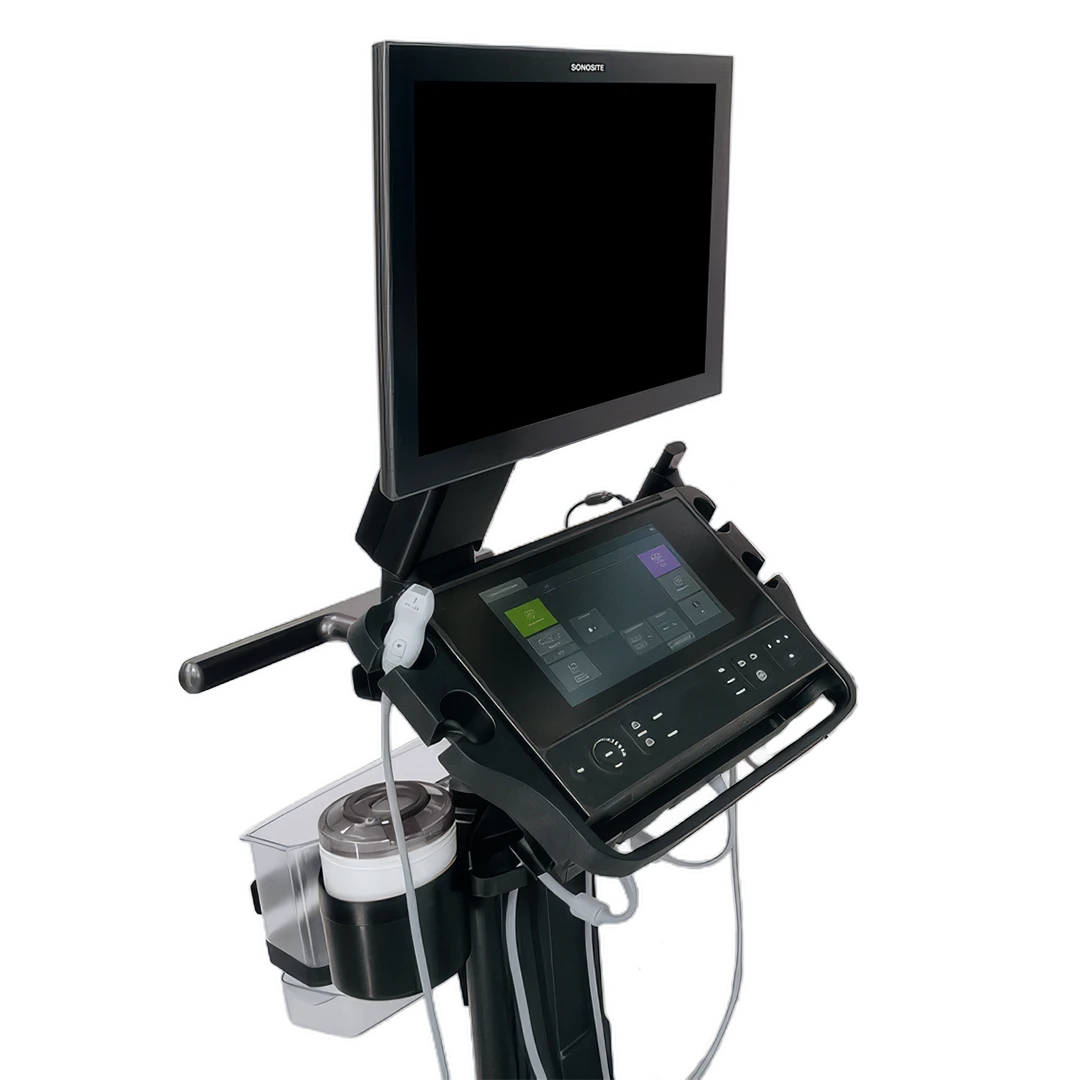

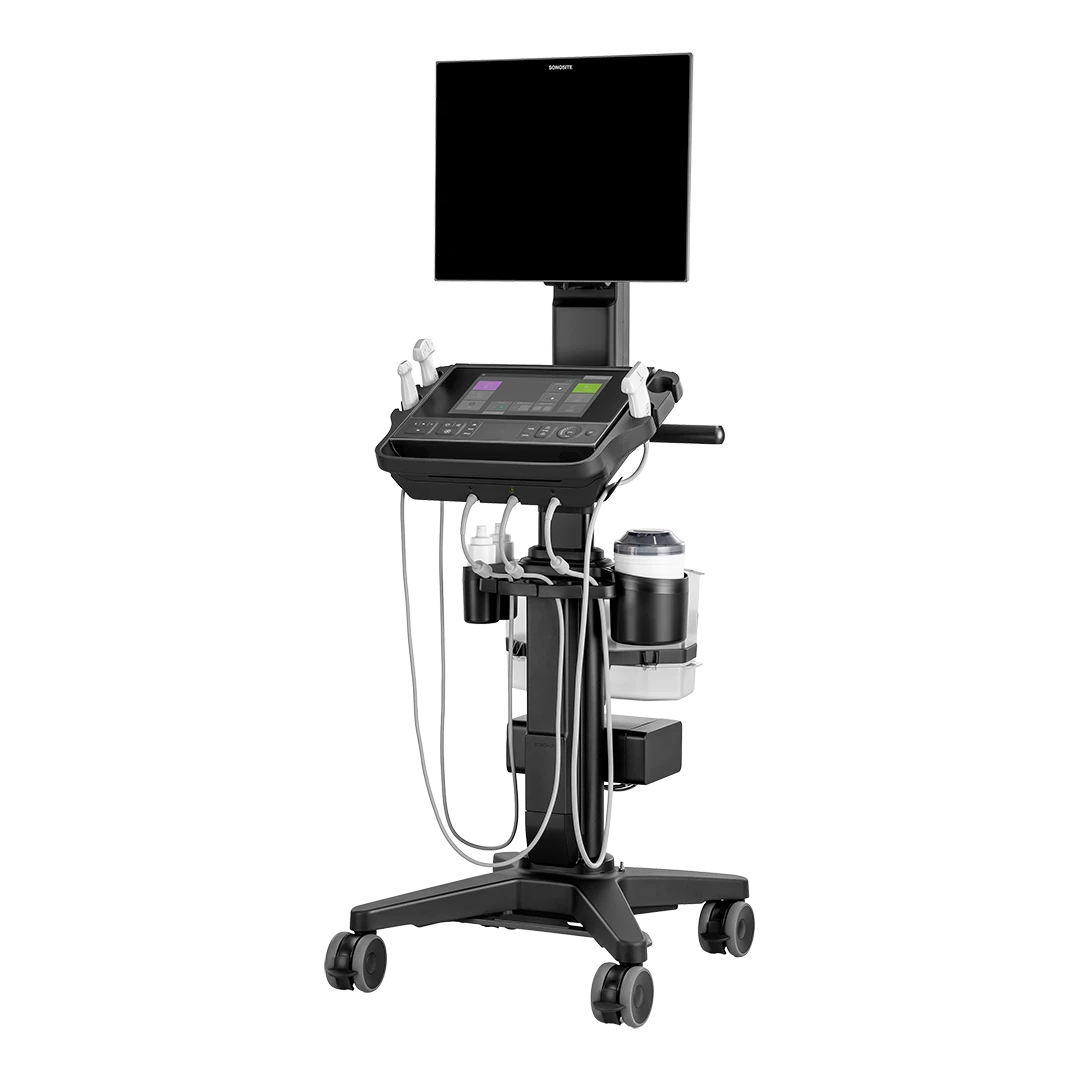

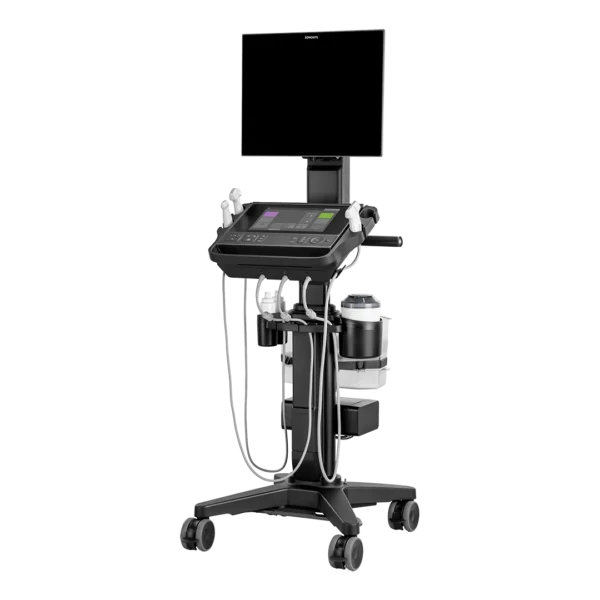

Fujifilm Sonosite LX
Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Fujifilm Sonosite LX Ultrasound Features
The Fujifilm Sonosite LX is a point-of-care ultrasound system designed to provide detailed imaging across a wide range of clinical applications. Its large clinical display, responsive touchscreen, and three-probe connector. This ultrasound supports applications including cardiac and lung imaging, anesthesia, pain management, and musculoskeletal assessments, with optional transducers and specialized exam tools available for more advanced studies. Voice Assist allows users to perform everyday functions hands-free, while features such as VExUS analysis and transesophageal ultrasound expand its capabilities for cardiac and vascular assessment.
- Three-Probe Connectivity: Built-in triple transducer connector.
- Large Clinical Display: High-resolution clinical monitor and touchscreen.
- Advanced Imaging Options: Supports an optional 46 MHz ultra-high-frequency transducer.
- Voice Assist and Specialized Exam Tools: Hands-free voice commands.
- Flexible Clinical Use: Designed for a range of point-of-care applications, including cardiac, lung, vascular, anesthesia, pain management, and musculoskeletal imaging.
Sonosite LX Specifications
Dimensions
- Height: 49 in to 68 in (124.5 cm to 172.7 cm), monitor down to monitor up
- Width: 23.0 in (58.4 cm)
- Depth: 25.4 in (64.5 cm)
- Weight: 151.68 lb (68.8 kg) maximum, including accessories and safe working load
Display
- Screen Size: 21.3 in (54.1 cm) diagonal
- Monitor Size: 19.45 in wide x 15.31 in high (49.4 cm x 38.9 cm)
- Resolution: 1600 x 1200 pixels
- Touch Screen: Yes, plus a separate touch panel for system controls
- Monitor Arm: Adjustable
Imaging Modes
- 2D Imaging: 256 gray shades
- Color Doppler: 256 colors
- Color Power Doppler (CPD): 256 colors
- M Mode
- Pulsed Wave (PW) Doppler
- Continuous Wave (CW) Doppler: Available with cardiac transducers (P5-1, P11-3, T8-3)
- Tissue Doppler Imaging (TDI)
- Tissue Harmonic Imaging (THI)
Compatible Transducers
- C5-1: 5-1 MHz curved
- C10-3: 10-3 MHz curved
- P5-1: 5-1 MHz phased
- P11-3: 11-3 MHz phased
- L12-3: 12-3 MHz linear
- L13-6: 13-6 MHz linear
- L15-4: 15-4 MHz linear
- L19-5: 19-5 MHz linear
- IC10-3: 10-3 MHz endocavity
- T8-3: 8-3 MHz transesophageal (TEE)
- UHF46-20: 46-20 MHz ultra-high frequency
- Transducer Ports: Built-in triple transducer connector
Batteries
- Battery Type: Lithium-ion
- System Batteries: Two battery packs, 21.6 VDC, 64.8 Wh each
- Battery Runtime: Up to 1 hour on the two system batteries
- Extended Runtime: Up to 3 hours with the system and stand batteries
- Stand Battery: 21.6 VDC, 12,000 mAh (259.2 Wh)
- Battery Charge Time: 2.5 hours
- Battery Life: 500 charge cycles
- Actual runtime depends on imaging mode and display brightness.
Power Requirements
- Voltage: 100 – 240 VAC
- Frequency: 50 – 60 Hz
- Current: 6.0 – 2.5 A
Cart Features
- Height Adjustment: Foot pedal
- Wheels: 4 locking wheels
- Storage: Storage bin (11 lb / 5 kg capacity), lockable drawer, and holders for gel and wipes
- Cable Management: Built-in cable management system
Connectivity
- Network: Ethernet and Wi-Fi
- DICOM: DICOM 3 compatible
- Ports: USB, video out, and Ethernet on the stand; USB on the system
- ECG: ECG port (ECG module and leads sold separately)
Environmental Specifications
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Operating Humidity: 15% to 95%
Refurbished Fujifilm Sonosite LX
Soma Tech Intl offers the Fujifilm Sonosite LX Ultrasound up to 50% below OEM prices, with the same service and warranty as new equipment. This system goes through both technical and cosmetic refurbishment so it performs and looks like new. During the refurbishment of the Sonosite LX, our in-house biomedical engineers, who are trained and certified to work on ultrasound systems, carefully inspect and test the unit and replace components as needed so every aspect of the machine meets the original manufacturer’s engineering specifications. Once it’s fully operational, the Sonosite LX moves into a detailed cosmetic restoration process: thorough cleaning, correction of minor scratches and dents, surface refinishing where needed, and decal replacement if required. After all of that, it functions and presents like new.
Soma Tech Intl is ISO 13485:2016 certified, so strict quality control standards apply to every piece of capital medical equipment we sell. Before the Fujifilm Sonosite LX is labeled patient-ready and prepared for shipment, it goes through a final quality assurance inspection to confirm proper operation and performance.
Soma Tech Intl’s procurement team is also always looking to purchase Fujifilm Sonosite LX ultrasound systems and other used Fujifilm ultrasound equipment. If your facility has a Sonosite LX or similar model to sell, get in touch and our purchasing department will walk you through the process from start to finish. Selling directly to Soma cuts out the middleman, so your facility gets the best possible value for its used or pre-owned equipment. We’re 100% HIPAA compliant as well, meaning your equipment arrives at our facility in the same condition it left yours. Soma also offers trade-in credit, so if you have a Sonosite LX or any other used medical equipment to sell, just send us a message.
