AccuVein AV500 Features

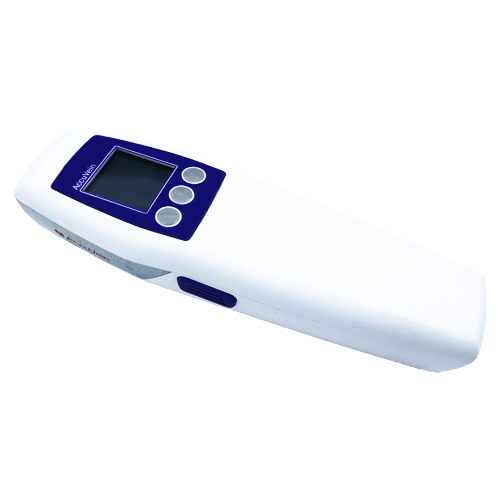

The AccuVein AV500 vein finder redefines the art of vein visualization. Harnessing the prowess of a low-power, Class 1 laser, this cutting-edge device projects live vein imagery onto the skin’s canvas through a vibrant green image projection.
maintains permanent alignment, rendering the need for calibration obsolete. With this feature at their disposal, medical professionals gain unparalleled precision in observing the vein’s central axis. AccuVein has three distinct brightness levels and an inverse color mode display, the AV500 empowers both users and clinicians to seamlessly adapt the imagery to match their unique surroundings

  • Supports PIV Best Practice.
  • Inverse Mode – Dark or light Anatomy, based on user preference.
  • Long battery life up to 2 hours of scan time on a single charge.
  • There are no fans or other vented openings, which supports contamination management.
  • Clear, uniform vein image for all skin tones and has variable brightness settings
  • High speed near-infrared (NIR) laser technology.

AccuVein AV500 Specifications


  • Height: 2 in (5 cm)
  • Width: 2.4in (6 cm)
  • Depth: 7.9 in (20 cm)
  • Weight: 0.6 lb (0.37 kg)


  • Product contains: integrated Li-Ion battery.3.6V, 3,100 mAh
  • Run time on full charge: 120 minutes


  • Temperature: 4°C to 33°C (39°F to 90°F)
  • Humidity: 5% to 85% RH noncondensing
  • Pressure: 75kPa to 106kPa


  • Temperature: -20°C to 50°C (-4°F to122°F)
  • Humidity: 5% to 85% RH noncondensing

Product Sealing

  • Dust / liquid IPx0

Refurbished AccuVein AV500 Vein Finder

Soma Tech Intl offers the AccuVein AV500 Vein Finder up to 50% below OEM prices with the same service and warranty as new. Soma Tech technically and cosmetically refurbishes these view finders back to the original engineering manufacturer specifications. Using highly skilled, trained, and certified in-house biomedical engineers these units are fully tested, disassembled, and if necessary, parts are replaced. Once all the parts of the AccuVein AV500 are in working order, the vein finder is calibrated back to OEM specifications, to make sure it works exactly the way it did when it originally left the manufacturer. Soma Technology not only refurbishes the product, but each unit also goes through a Special cosmetic restoration process. The AccuVein AV500 vein finder is cleaned and minor scratches and dents are repaired, and decals are replaced if necessary.

Soma Tech Intl also purchases used and pre-owned Vein Finders. If you or your facility wants to sell your AccuVein AV500 vein finder, Soma has an experienced purchasing department that makes the process headache and hassle-free. When selling your AccuVein AV500 to Soma, there is no need for a middleman, it is a direct transaction to Soma which ensures that you get top dollar for your medical equipment. Soma not only buys vein finders but also buys a wide variety of different medical equipment if your medical facility is looking to free up space. If you have medical equipment you would like to sell to Soma, send us a message here!
