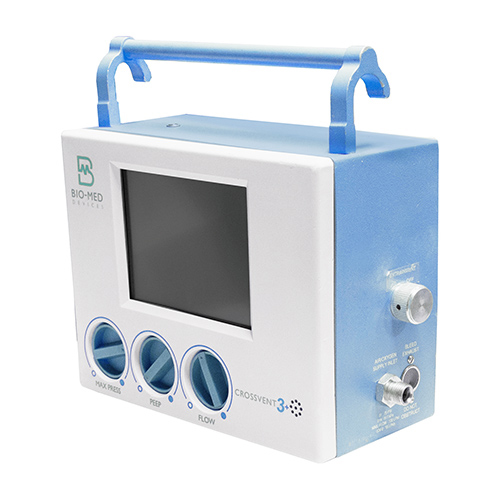

BIO-MED Devices Crossvent 3+

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

BIO-MED Devices Crossvent 3+ Features

The BioMed Crossvent 3+ ventilator comes with three different configuration settings; A standard setting, a setting with an air/oxygen blender attached, and one with an Air Entrainment. The setting for the Crossvent 3+ that uses an Air Entrainment setting can deliver 100 % more oxygen than most normal settings that can only deliver up to 50% without an air supply source. The BioMed Ventilator is built with a mechanism that can increase flow there for increasing the Oxygen tank life by mixing ambient air with the Oxygen. The Crossvent 3 Plus can be used on patients ranging from pediatrics to adults and offers an internal battery should the AC power fail. When fully charged the battery will last for approximately 6 hours.

  • comes with an alarm system for tidal volume, PIP, PEEP, Mean pressure, low supply pressure, rate and oxygen concentration
  • color Display that is easy to read
  • Ultra-compact and lightweight design
  • Unmatched gas efficiency
  • Long battery life
  • Multiple Ventilation modes
  • LED power indicator
  • Foolproof circuit connections

BIO-MED Devices Crossvent 3+ Specifications

Dimensions

  • Height: 10 in (25.4 cm)
  • Width: 11 in (28 cm) or 13.5 in (34.3 cm) with optional mounted blender
  • Depth: 5.5 in (14 cm)
  • Weight:10.5 lbs (4.8 kg) or 13.5 lbs (6.1 kg) with optional mounted blender

Specifications

  • Parameter Range Rate 5-150 bpm
  • Tidal Volume 5-2500 ml
  • Inspiratory Time 0.10 – 3.0 seconds
  • I/E Ratio 3:1 to 1:99
  • Flow Rate 1-120 lpm
  • Peak Pressure 0-120 cmH2O
  • PEEP Pressure 0-35 cmH2O
  • Pressure Trigger -.2 to –10 cmH2O
  • Pressure Support 0-50 cmH2O
  • SIMV Rate 0.6-50 bpm
  • O2 Sensor 21-100%
  • Sigh 0-2500 ml

Ventilation Modes

  • Assist Control
  • SIMV
  • CPAP
  • Pressure Support
  • Sigh

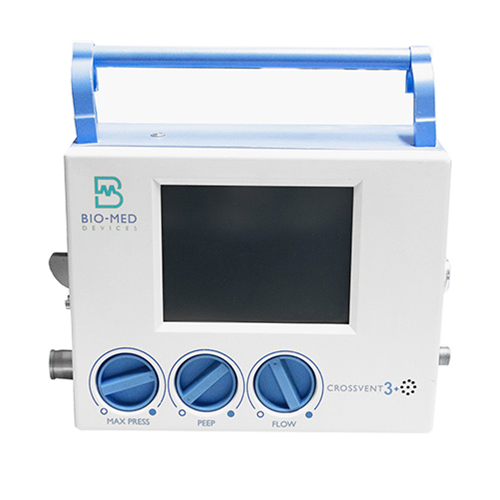

Refurbished BioMed Device CrossVent 3 + Ventilator

Soma Tech Intl offers the BioMed Crossvent 3 Plus Ventilator up to 50% below OEM prices with the same service and warranty as new. The Crossvent 3+ is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the ventilator, it is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on Ventilators. If necessary, parts are replaced to make sure that all aspects of the BiomMed ventilator machine are to the original engineering manufacturer specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Crossvent Ventilator is working like new it undergoes a special cosmetic restoration process. The Crossvent 3 Plus is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Ventilator is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished surgical tables contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase Biomed device Corrssnet 3+ ventilators, If you or your facility is looking to sell your ventilator system, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Crossvent 3+ ventilator takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
