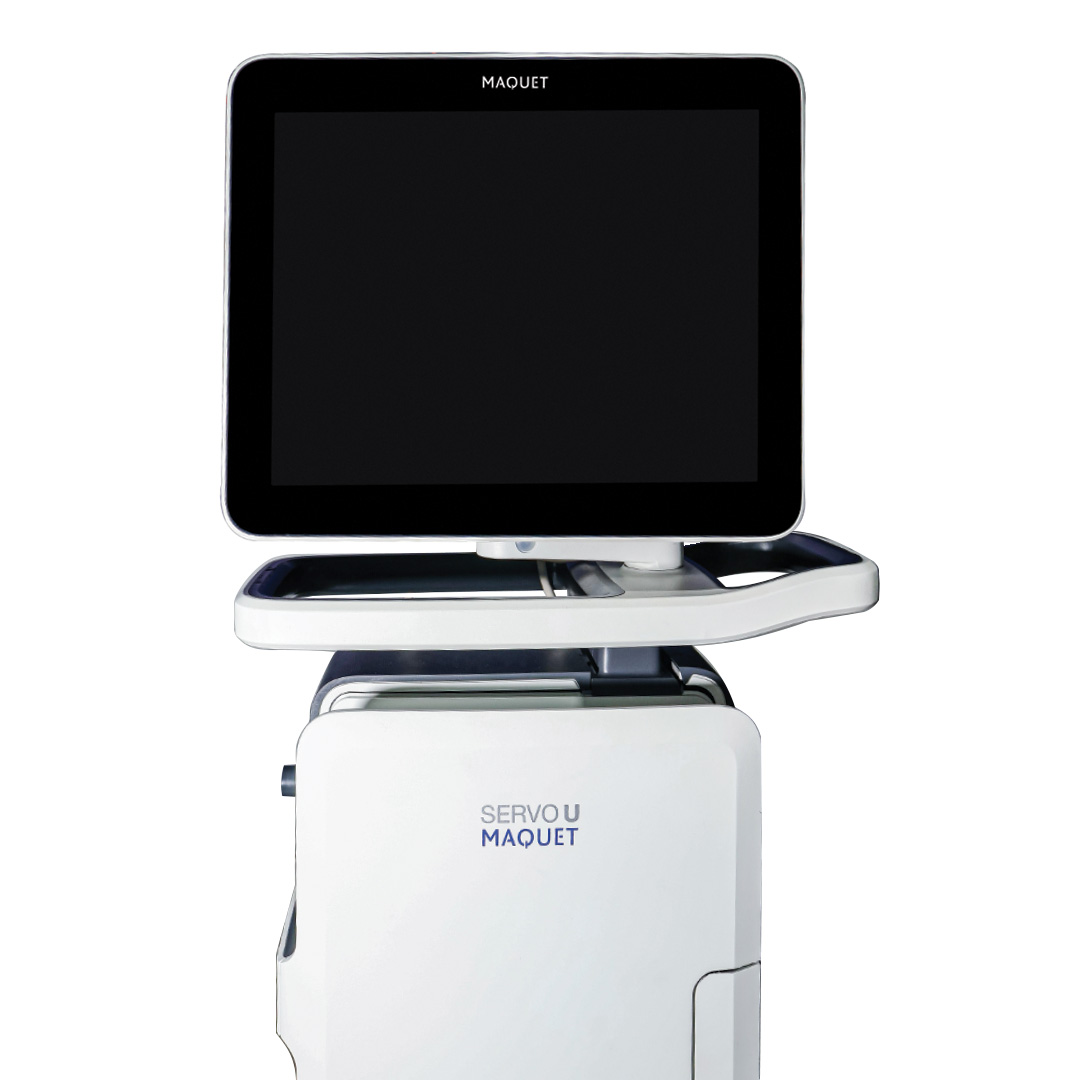

Getinge Maquet Servo-U Features
The Getinge Maquet Servo-U is a ventilator that is intended for intensive care. The Servo-U gives the medical professional more ways to tailor each ventilation treatment to each patient while still protecting the integrity of their lungs. these phases of ventilation include controlled, supported, non-invasive, and spontaneous breathing. With a larger touchscreen display, it is easy to view and adjust the patient’s parameters. The Display screen can be rotated 360 degrees so it can be read no matter what side of the patient’s bed it is put on.
- Tools to support protective ventilation strategies.
- Context-based guidance, therapeutic workflows, and intuitive user interaction for all functions.
- Upgradeable platform to meet future needs.
- Automatic Calculation of VT/PBW.
- On-Screen Tutorials.
- Ergonomic Design.
- Interchangeable Product Modules.
Maquet Servo-U Specifications
Dimensions (Without Cart)
- Height (Includes user interface): 32.5 in (82.6 cm)
- Width: 14.5 In (36.8 cm)
- Depth: 8.1 In (20.5 cm)
Weight (Without Cart)
- Approx. 50 lb 11 oz (23 kg)
- Patient unit 33 lb 1 oz (15 kg)
- User interface 8 lb 13 oz (4 kg)
- Handle 7 lb (3 kg)
- Cable holder and cable 2 lb 3 oz (1 kg)
Dimensions (With Cart)
- Height (Includes user interface): 53.9 in (136.8 cm
- Width (Includes Wheels): 25.5 In (64.7 cm)
- Depth (Includes Wheels): 21.5 In (54.7 cm)
Weight (With Cart)
- Approximately 77 lb 3 oz (35 kg)
- Base system approx. 50 lb 11 oz (23 kg)
- Mobile cart 27 lb 9 oz (12.5 kg)
General
- Patient range:
- Neonatal: 11 oz to 17 lb 10 oz (0.3 to 8 kg)
- Standard Configuration: 7 lb to 551 lb 2 oz (3 to 250 kg)
- Bias Flow
- Adult: 2 l/min
- Pediatric and Neonatal: 0.5 l/min
- Internal Compressible Factor: Max. 0.2 ml/cmH2O
- Gas Delivery System: Microprocessor controlled valves
- Maximum Airway Pressure: 125 cmH2O
- Method of Triggering: Flow, pressure, and Edi (with Edi module and Edi catheter)
- Inspiratory Flow Range:
- Adult: 0 to 200 l/min
- Pediatric and Neonatal: 0 to 33 l/min
- Pressure drop:
- Max. 6 cmH2O at a flow of 60 l/s (insp. channel)
- Max. 3 cmH2O at a flow of 60 l/s (exp. channel)
- PEEP Regulation: Microprocessor controlled valve
- Rise Time, Expiratory Flow Measurement: <12 ms for 10% to 90% response at flow of 3 to 192 l/min
- Expiratory Flow Range: 0 to 192 l/min
User Interface
- Type TFT-LCD touchscreen
- Size 14.4 x 11.8 in (366 x 300 mm)
- Viewing area 15 in XGA, 1024 x 768 pixels with a 24-bit color palette
- Weight Approximately 8 lb 13 oz (4 kg)
- Power supply, automatic range selection:
- 100V to 120V AC, 2.5 A, 50 to 60 Hz
- 220V to 240V AC, 1.5 A, 50 to 60 Hz
- External 12V DC: 12.0V to 15.0V DC, 10 A
- Typical min. power consumption (no optional modules, no ongoing battery charging, normal panel backlight) 110 VA, 40 W <?li>
- Typical max. power consumption (with CO2, Edi and Y sensor modules, ongoing battery charging, max. panel backlight) 210 VA, 85 W
- Plug-in battery module:<?li>
- Battery backup (nickel-metal hydride, NiMH) Six battery module slots — two batteries are delivered with the ventilator
- Battery capacity Rechargeable, 12V, 3.5 Ah each
- Battery backup time Ranging from 50 minutes (2 batteries) to 150 minutes (6 batteries)
- Recharge time Approximately 3 hr/battery
Operating Conditions
- Temperature 50° to 104ºF (10° to 40ºC)
- Relative humidity 15% to 95% non-condensing
- Atmospheric pressure 660 to 1060 hPa
- Lowest pressure in patient circuit -400 cmH2O
Non-Operating Conditions
- Temperature -13° to 140º F (-25° to 60ºC)
- Relative humidity <95% condensing
- Atmospheric pressure 470 to 1060 hPa
- Lowest pressure in patient circuit N/A
Refurbished Maquet Servo-U Ventillator System
Soma Technology, Inc. offers Refurbished Maquet Servo-U Ventilators up to 50% below OEM prices with the same service and warranty as new. The Maquet Ventilator is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Maquet Servo the Ventilator system is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on the Maquet Servo-U Ventilator. If necessary, parts are replaced to make sure that all aspects of the pump are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Maquet Servo U Ventilator system is working like new it undergoes a special cosmetic restoration process. The Ventilator is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the infant warmer functions and looks like new. Soma Technology is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Ventilator is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Maquet Servo-U Ventilator
contact soma at [email protected] or call us at 1-800-GET-SOMA.
Soma Technology, Inc. is also actively looking to purchase a Servo-U Ventilator. If you or your facility is looking to sell your Maquet, be sure to contact Soma Technology, Inc. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Maquet Ventilator to Soma Technology takes out the middleman in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma Technology is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Technology also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain floor space for new equipment, or looking to upgrade current equipment, contact Soma Technology’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
