Getinge Servo-air Features

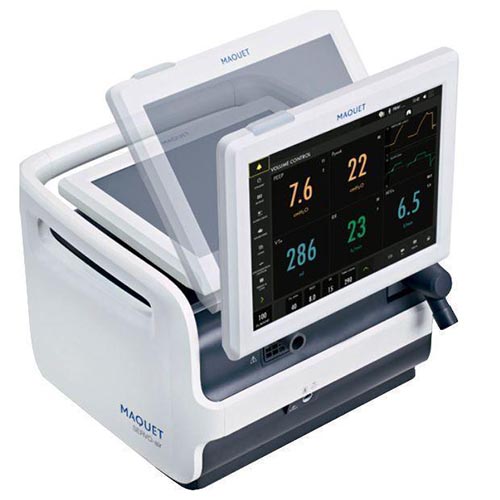

The Getinge Servo-air NIV Ventilator is the equivalent to an ICU-quality ventilation system. Wall gas Independent Servo-air makes owning quality ventilation even more accessible throughout your hospital. With its versatility from the ICU to intermediate care and non-invasive and invasive ventilation the Servo-air provides for the entire team. The ventilator is easy-to-use and independent from compressed air and external power supplies. With it’s battery powered turbine there is no need for the heavy gas cylinders – making it easier to move through the hospital. The Servo- air can work alongside other ventilators with advance tools for lung protection, such as the Servo-U.

  • Context-based help- onscreen from pre-use check throughout the entire treatment
  • Uninterrupted ventilation- enabled by its high-mobility design and wall gas independence
  • SERVO performance- turbine-driven ventilation with fast response times and high flow and high pressure capacity
  • On-screen instructions help you choose between modes. Dynamic images show how each adjustment affects the ventilation. Intuitive user interface and on-screen instructions.
  • Uninterrupted quiet Non Invasive ventilation with high pressure and high flow capacity, yet gentle and responsive for pediatric and adult patients. No need to switch to separate High Flow therapy system.
  • The alarm management system includes short descriptions to help you respond to alarms. And highlights let you know what values are affected while shortcuts take you directly to what needs to be changed.

Maquet Servo-air Specification


  • Height: 19.3in (489 mm)
  • Width: 14.8 in (375 mm)
  • Depth: 13.8in (350 mm)
  • Weight: 33 lbs (15 kg)

Dimensions on cart

  • Height: 52.6 in (1335 mm)
  • Width: 25.5 in ( 647 mm)
  • Depth: 21.5 in (547 mm)
  • Weight: 33 lbs (15 kg)

General Ventilation

  • Patient Range: Tidal Volume:
    • Pediatric: 20 – 350 ml
    • Adult: 100 – 2000 ml
  • Bias flow: 2 l/min ±5 %
  • Internal compressible factor Max. 0.1 ml/cmH2 O
  • Gas delivery system Air turbine and O2 valve
  • Maximum airway pressure 100 cmH2 O
  • Method of triggering Flow and pressure
  • Inspiratory flow range
    • Adult: 0 – 240 l/min
    • Pediatric: 0 – 80 l/min
  • Pressure drop: Max. 3 cmH2 O at a flow of 60 l/s (exp. channel)
  • Rise time, expiratory flow measurement <12 ms for 10 – 90 % response at flow of 3 – 192 l/min
  • Expiratory flow range 0 – 192 l/min

User Interface

  • Type TFT-LCD touchscreen
  • Size 300 x 248 mm (11.8″ x 9.8″)
  • Viewing area 12″ XGA, 1024×768 pixels with a 24- bit color palette

Gas Supply

  • Connection standards available AGA, DISS, NIST, or French standard
  • Unavailable gas/loss of gas pressure The flow from an unavailable gas (O2 ) is automatically compensated for so that the patient gets the preset volume and pressure.
  • Patient system gas connectors Male 22 mm / female 15 mm. In accordance with ISO 5356-1.
  • Gas exhaust port Male 30 mm cone

Power Supply

  • Power supply, automatic range selection 100 –240 V AC ±10%, 50 – 60 Hz
  • Battery backup (li-ion): Two battery module slots. One battery is delivered with the ventilator.
  • Battery capacity: Rechargeable, 14.4 V, 6.6 Ah each
  • Battery backup time: Approximately 2 h (factory new battery)
  • Recharge time: Approximately 3h/battery
  • External 12 V DC: 12.0 V- 15.0 V DC, 15A

Operating Conditions

  • Operating temperature +5 to +40ºC (+41 to +104ºF)
  • Relative humidity 5 to 95% non-condensing
  • Atmospheric pressure 660 to 1060 hPa
  • Lowest pressure in patient circuit -400 cmH2 O

Non-operating Conditions

  • Storage temperature -25 to +60ºC (-13 to +140ºF)
  • Storage relative humidity <95% condensing
  • Storage atmospheric pressure 470 to 1060 hPa

Refurbished Getinge Servo-Air NIV Ventilator

Soma Tech Intl offers the Getinge Servo-Air NIV ventilator up to 50% below OEM prices with the same service and warranty as new. The Getinge Servo-Air NIV is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Getinge Servo-Air NIV , it is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on ventilator systems. If necessary, parts are replaced to make sure that all aspects of the Getinge Servo-Air NIV to the original engineering manufacturer specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Getinge Servo-Air NIV is working like new it undergoes a special cosmetic restoration process. The Getinge Servo-Air NIV is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Getinge Servo-Air NIV is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Getinge Servo-Air NIV ventilator systems contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase a Getinge Servo-Air NIV . If you or your facility is looking to sell your Getinge Servo-Air NIV ventilator system, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Getinge Servo-Air NIV to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
