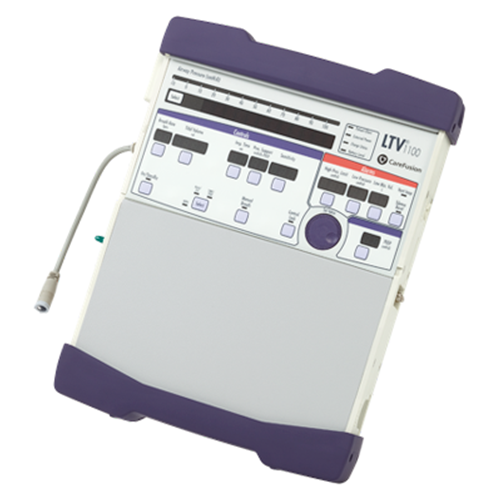

Vyaire LTV 1100

Quotes in less than 24 hours Download Specifications

Vyaire LTV 1100 Ventilator Features

The Vyaire LTV 1100 is a versatile portable ventilator that can be customized for individual patients. The ventilator can be adjusted to fit the respiratory needs of infants to adults. The Vyaire LVT 1100 runs off of Turbine technology which means there is no need for compressed air, making transporting the ventilator much easier. The Vyaire offers both non-invasive and invasive means of ventilation, with pressure support, volume control, and spontaneous breath types. The Vyaire LTV1100 has SprintPack that carries a lithium battery power system for the ventilator and can provide up to 5 hours of battery power when fully charged.

  • A wide range of ventilation therapies for patients—The LTV 1100 ventilator offers both invasive and noninvasive modes of ventilation in Pressure Support, Volume Control, and Spontaneous breath types, delivered with flow triggering. An O2 source can be used to bleed in oxygen. The addition of SIMV/CPAP and apnea backup combine to create powerful portable ventilation technology.
  • Simple user operation—The easy-to-read LED display panel and front panel buttons combine to provide quick and convenient user operation
  • Multiple power sources—A wide variety of power sources are available for the LTV 1000 ventilator. The internal battery offers an extra layer of power protection to ensure security and confidence for your patient and the caregiver. The LTV 1100 ventilator can be connected directly to a wall outlet using the LTV AC adapter, to an automobile power adapter or to external battery options, including our SprintPack Battery Lithium-Ion Power System.

Vyaire LTV 1100 Ventilator Specifications


  • W 10.5” (2 cm) x H 3.25” (8.4 cm) x D 13.5” (38 cm)
  • Weight: 14.5lbs (6.5 kg)


  • Power On/Standby
  • Ventilation modes Control, Assist/Control, SIMV/CPAP and NPPV
  • Breath types VC, PS and Spontaneous
  • Breath rate 0–80 BPM
  • Tidal volume 50–2,000 mL
  • Inspiratory time 0.3–9.9 sec
  • PS/spontaneous flow 160 LPM
  • Pressure support 1–60 cmH2
  • O (PEEP compensated)
  • Flow sensitivity Off, 1–9 LPM
  • PEEP/CPAP 0–20 cmH2O
  • Manual breath 1 x current settings
  • Control lock Easy or hard unlock

Enviromental Specifications

  • Operating temperature 5–40°C (40–104°F)
  • Storage temperature -20 to 60°C (-4 to 140°F)
  • Operating humidity 15–95% relative
  • Storage humidity 10–95% relative
  • Shock compliance IEC 68-2-27, MIL-STD-810E
  • Vibration compliance IEC 68-2-34 and 68-2-6, MIL-STD-810E

Monitors and indicators

  • Peak inspiratory pressure 0–120 cmH2O
  • Mean airway pressure 0–99 cmH2O
  • PEEP 0–99 cmH2O
  • Breath rate 0–250 BPM
  • Airway pressure display -10 to 108 cmH2O
  • Exhaled tidal volume 0–4,000 mL
  • Exhaled minute volume 0–99.9 liters
  • I:E ratio 99:1 to 1:99
  • Calculated peak flow 10–100 LPM

Extended Features

  • Spontaneous breathing trial (SBT)
  • Bias flow off (pressure trigger)
  • Pressure support variable rise time
  • Pressure support variable flow termination
  • Pressure support variable time termination
  • Flow termination 10–40% peak flow
  • Leak compensation
  • Sigh
  • Apnea backup ventilation delivers 150% every 99 breaths or 7 minutes

Pneumatic specifications

  • Low pressure O2 source < 80 LPM, < 10 PSIG
  • External power Green and amber LEDs
  • Battery charge status Green, amber and red LEDs
  • Battery level Green, amber and red LEDs

Power specifications

  • Ventilator input 11–15 VDC
  • AC adapter 100–250 VAC, 50–60 Hz

Refurbished of The Vyaire LTV 1100 Ventilator

Soma Tech Intl offers the Vyaire LTV 11000 Ventilator machine up to 50% below OEM prices with the same service and warranty as new. The Avea is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the ventilator, it is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on Ventilators. If necessary, parts are replaced to make sure that all aspects of the Vyaire ventilator machine are to the original engineering manufacturer specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the ventilator is working like new it undergoes a special cosmetic restoration process. The Ventilator is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Vyaire Ventilator is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Ventilator contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase Vyaire 1100 ventilators, If you or your facility is looking to sell your ventilator system, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Vyaire ventilator takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
