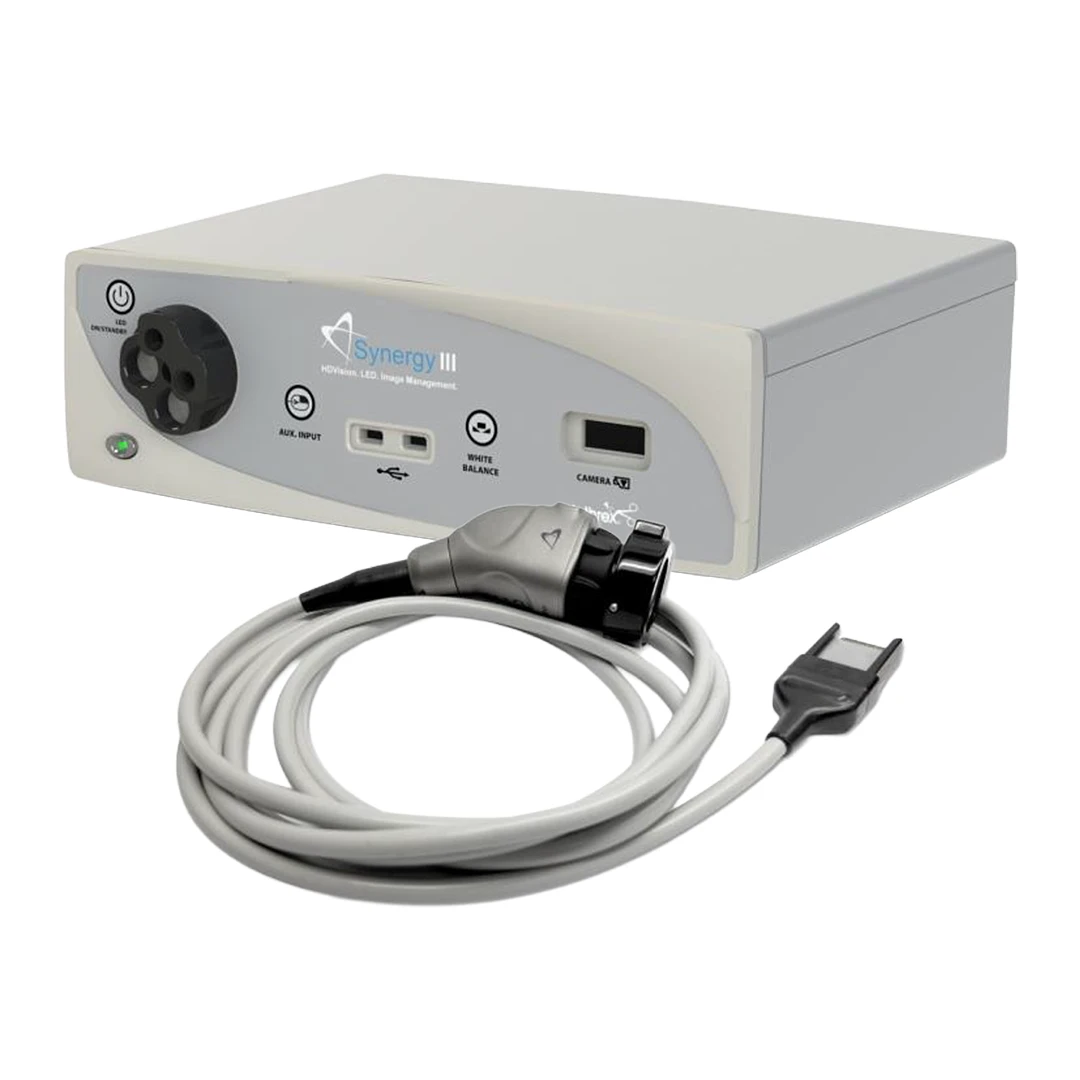

Arthrex Synergy HD3 Camera System
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Arthrex Synergy HD3 Camera System Features
The Arthrex Synergy HD3 camera system is a high-definition endoscopic imaging platform designed to provide clear visualization across a wide range of minimally invasive surgical procedures. Intended for use in orthopedic, laparoscopic, urologic, sinus, plastic, and microscopic surgeries, the system delivers detailed surgical images that help support precision and efficiency in the operating room. The HD3 camera controller works with compatible camera heads and endoscopes to produce sharp, accurate images while maintaining a straightforward, user-friendly workflow. Its compact console integrates easily with existing surgical video systems, making it a versatile addition to a variety of operating room configurations.
- High-Definition Imaging: Produces clear, detailed surgical images to enhance visualization during minimally invasive procedures.
- Multi-Specialty Compatibility: Designed for orthopedic, laparoscopic, urologic, sinus, plastic, and microscopic surgical applications.
- Flexible Camera Head Options: Compatible with a range of Arthrex camera heads and optical configurations to meet different procedural requirements.
- Compact System Design: Integrates easily into existing surgical towers and operating room video systems without occupying excessive space.
- Intuitive Operation: User-friendly controls and streamlined system design help simplify setup and support efficient workflow during procedures.
Arthrex Synergy HD3 Specifications
Dimensions
- Width: 16 in (40.6 cm)
- Height: 5 in (12.7 cm)
- Depth: 13.5 in (34.3 cm)
- Weight: 18 lb (8.2 kg)
Video & Imaging
- 3G-SDI Output: 1080p, 59.94 Hz (SMPTE 425 Standard)
- DVI Output: 1920 × 1080, Progressive Scan (1080p)
- Vertical Scan Frequency: 59.94 Hz
- Signal-to-Noise Ratio: >50 dB
- White Balance (Integrated Optics Camera): 2,000–10,000 K
- White Balance (C-Mount Camera): 3,053–10,000 K
Camera Head Specifications
AR-3210-0001
- Length: 4.75 in (12 cm)
- Width: 2 in (5 cm)
- Height: 2 in (5 cm)
- Weight: 18.7 oz (530 g)
AR-3210-0003 / AR-3210-0004 / AR-3210-0007
- Length: 3.125 in (8 cm)
- Width: 1.5 in (4 cm)
- Height: 2 in (5 cm)
- Weight (C-Mount Heads): 16 oz (454 g)
LED Light Source
- Light Output: ≥1,350 lumens
- Color Temperature: 7,000 K (Nominal)
- LED Life: >30,000 hours
- Light Guide Port: Wolf Standard
- Light Guide Port Turret: ACMI, Storz, Wolf, and Olympus compatible
DICOM Compatibility
- Compatible with DICOM when equipped with the optional AR-3200-1020 DICOM Key.
Electrical Requirements
- Input Voltage: 100–240 VAC
- Frequency: 50/60 Hz
- Power Consumption: 140 VA
- Fuses: No user-serviceable fuses
Operating Environment
- Ambient Temperature: 50°F to 95°F (10°C to 35°C)
- Relative Humidity: 30% to 75%, non-condensing
- Atmospheric Pressure: Up to 3,000 m (9,843 ft) altitude
Transport & Storage
- Ambient Temperature: -40°F to 122°F (-40°C to 50°C)
- Relative Humidity: 10% to 90%, non-condensing
- Atmospheric Pressure: 500–1060 hPa
Refurbished Arthrex Synergy HD3
Soma Tech Intl offers the Arthrex Synergy HD3 camera system up to 50% below OEM prices, providing the same service and warranty as a new. This surgical camera system undergoes both technical and cosmetic refurbishment to ensure reliable imaging performance and a clean, professional appearance. During the refurbishment of the Arthrex Synergy HD3, our in-house biomedical engineers, who are highly trained and certified to work on camera systems, carefully inspect and test the unit. If required, components are replaced to ensure the Synergy HD3 camera system meets the original manufacturer’s engineering specifications.
Once the Arthrex Synergy HD3 camera system is fully operational, it proceeds through a detailed cosmetic restoration process. The system is thoroughly cleaned, minor cosmetic imperfections are addressed, exterior surfaces are refinished when necessary, and labels or decals are replaced if needed. After completing this refurbishment process, the Synergy HD3 both functions and presents like new. Soma Tech Intl is ISO 13485:2016 Certified, ensuring strict quality control standards are maintained for all capital medical equipment sold. Before the Arthrex Synergy HD3 is labeled patient-ready and prepared for shipment, it undergoes a final quality assurance inspection to confirm proper operation and consistent performance.
Soma Tech Intl is actively seeking to purchase Arthrex Synergy HD3 camera systems. If your facility is interested in selling a Synergy HD3 camera system or other Arthrex surgical camera systems, contact Soma Tech Intl. Our experienced purchasing department will guide you through the entire process. Selling your used or pre-owned Arthrex equipment directly to Soma eliminates the middleman and helps ensure your medical facility receives the highest value for its equipment. Soma is 100% HIPAA compliant, ensuring your equipment arrives at our facility in the same condition it left yours. Soma Tech Intl also offers trade-in credit for your medical equipment. If you have an Arthrex Synergy HD3 camera system or other used medical equipment you would like to sell, send us a message.
