Storz Image 1 Hub SCD
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

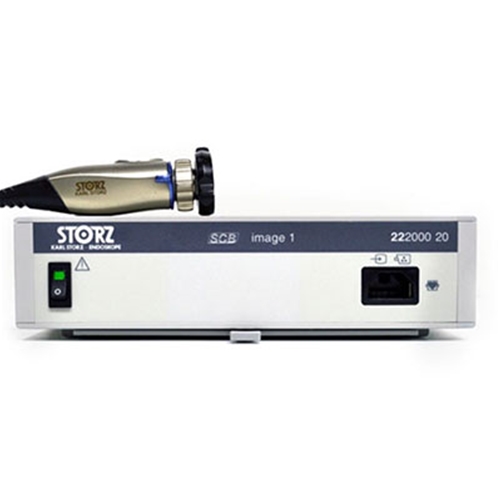

Storz Image 1 Hub HD SCD Camera System Features
The standard FULL HD camera control unit with both HD and SD head receptacle. Augmented with an ICM module, the unit allows printing as well as still images, movie capture, and out-of-the-box image printing with a simple push of a camera head button to suitable USB devices. The CCU is ready for OR integration through its SCB interface. Optionally the unit can be equipped with an SD-SDI interface for long-range video signal transmission.
- 1080p Full HD resolution for razor-sharp pictures without any latency
- Natural color reproduction for excellent image rendition
- Small and compact camera head concept
- Programmable head buttons for image capture, white balance, etc.
- 3-chip Full-HD CCD technology built-in
- Resolution:-1920*1080 pixels 16:9
- Progressive scan display:-50/60 full frames per second
- Colour system:-pal/NTSC
Storz Image 1 Hub HD SCD Camera System Specifications
Dimensions
- Height: 3.5 in (8.9 cm)
- Width: 12 in ( 30.5 cm)
- Depth: 12.5 in31.5 cm)
- weight: 6.8 lbs (3.1 kg)
Power
- Fue: 2 x T1.6A 250V
- Power Supply Requirements: 100 – 240 V
- Power Frequency: 50/60 Hz
Operating and Storage Conditions
- Operating Temperature: 41° – 95 °F (5° – 35°C)
- Storage ambient Temperature: 14° to 140° F (-10° to 60°C),/li>
- Storage Humidity: 20 to 80% (non-condensing)
- Storage Atmospheric Pressure: 50 kPa to 106 kPa
