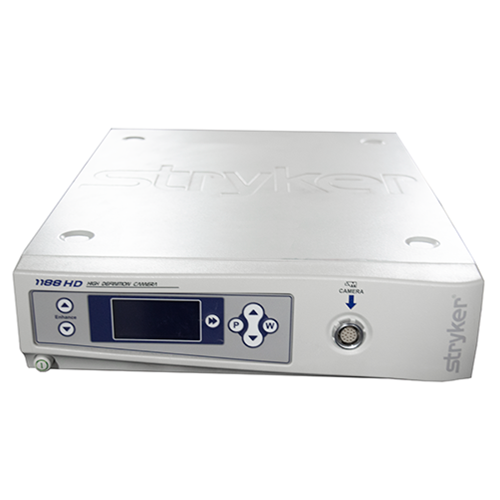

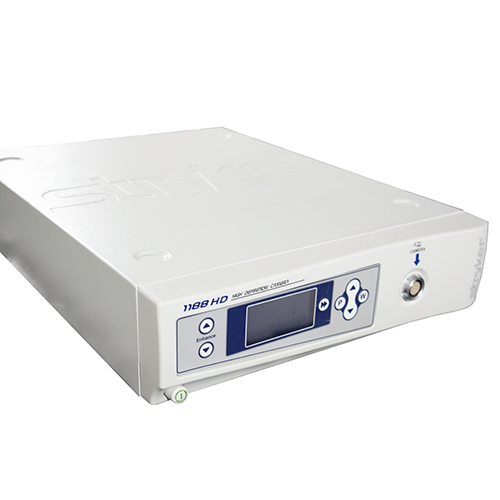

Stryker 1188 Camera System

Quotes in less than 24 hours Download Specifications

Stryker 1188 Camera System Features

The Stryker 1188 Camera System is a high-definition autoclavable 3-chip endoscopic camera system. The Camera can be used to produce still images and video images during an endoscopic procedure. The images are transferred from the surgical site to the camera head through a variety of different rigid or flexible endoscopic scopes that attach to the camera head and the camera system. The Images/ videos have an output of 1280 x 1024 with outstanding image quality and user control.

  • High Definition with 1280 x 1024 output
  • Progressive Scan Technology
  • 10-bit digital processing for optical clarity
  • Direct fiber optical outputs
  • Increased intra-operative brightness offers improved resolution
  • 9 customizable settings that enable surgical standardization
  • Seamless Integration with existing video equipment

Stryker 1188 Camera System Specifications

Dimensions of Camera Console

  • Height: 3.3 in (8.382 cm)
  • Width: 12.5 in (31.75 cm)
  • Depth:15.25 in (38.7 cm)
  • Weight: 13 lbs (6.0 kg)

Dimensions of the Camera Head Cable

  • 10.3 ft (3.15 m) Sealed cable
  • 20.7 ft (6.30 m) cable extension available
  • Camera Head weight: 1.5 lbs (0.680 kg)

Imaging System

  • 1/3″ progressive Scan CCDs
  • High Definition,?li>

Scanning System

  • Horizontal: 64.00 kHz (60.00 kHz)
  • Vertical: 60.02 Hz (50.00 Hz)

Video Output

  • Digital/analog: Two Digital Video Interface (DVI)/RGBHV 1280 × 1024 (HD), 720p (HDTV) format
  • Connector: 29-pin DVI-I
  • Composite: one NTSC standard (PAL standard)
  • Connector: BNC coaxial
  • Y/C: Two S-VHS
  • Connector: 4-pin mini-DIN
  • Digital Fiber: HD, HDTV (R, G, B, Clk)
  • Connector: Four Lucent fiber connectors with 1.25 mm ferrules

Operating Conditions

  • Temperature: 10 – 30°C
  • Relative Humidity: 30 – 75%

Transport and Storage Conditions

  • Temperature: -20 – 60°C
  • Relative Humidity: 10 – 75%
  • Atmospheric Pressure: 700 – 1060 hPa
