GE Dinamap Carescape V100

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

GE Dinamap Carescape V100 Features

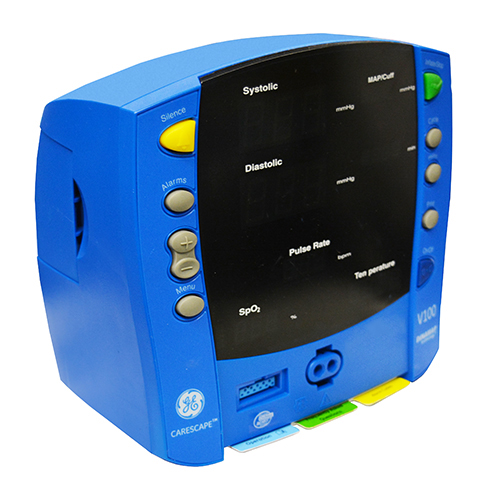

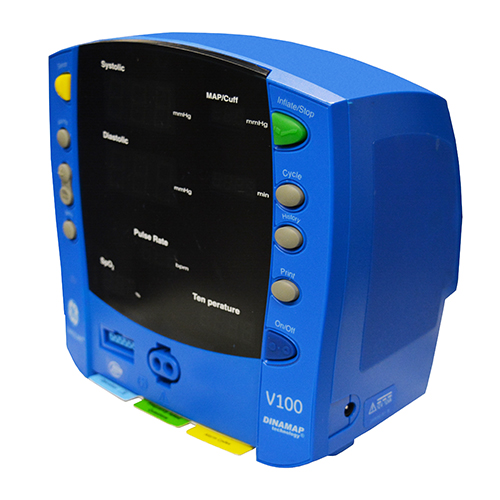

The GE Carescape V100 is a Patient Monitor that measures vital signs. The Carescape V100 vital signs patient monitor can be used for adult, pediatric, and neonatal patients. The Carescape V100 monitor can measure spO2, NIBP, and the patient’s temperature. The durable design of the Carescape V100 along with eight hours of battery life in the monitor make the monitor ideal for transport, mobile, and can be used as a continuous
bedside monitor. The GE Carescape V100 offers a 14-second accurate read on non-invasive blood pressure.

  • This Carescape is a two-in-one monitor, it can be used for both spot checks and continuous monitoring.
  • Non-invasive blood pressure determination times as fast as 14 seconds.
  • Exergen TemporalScanner thermometer provides non-invasive, fast, easy, and accurate temperatures.
  • The battery has a long run time, typically 8 to 11 hours before requiring a recharge.
  • Dinamap SuperSTAT blood pressure algorithms support speed, comfort, and artifact rejection for virtually all types of patients.

Configurations:

  • NIBP/Rec (standard)
  • NIBP/SpO2
  • NIBP/SpO2/Temp

Options:

  • Nellcor Pulse Oximeter
  • Massimo Pulse Oximeter

GE Dinamap Carescape V100 Specifications

Dimensions

  • Height: 7.7” (19.5 cm)
  • Width (Without Temperature): 8.6” (21.9 cm)
  • Width (With Temperature): 10” (25.4 cm)
  • Depth: 5.3” (13.5 cm)
  • Weight (Including battery): 5.4 lbs (2.4 kg)

Power

  • Protection Against Electrical Shock: Class II
  • AC Input: 100 to 250VAC, 12VA
  • DC Output voltage: 12VDC at 1A; The AC mains power adapter contains a nonresettable and nonreplaceable fuse.

Monitor

  • Protection Against Electrical Shock: Internally powered or Class II when powered from the specified external power supply.
  • DC input voltage: 12 VDC, supplied from a source conforming to IEC 60601-1.
  • Fuses: The monitor contains three fuses. The fuses are mounted within the monitor. The fuses protect the low-voltage DC input, the battery, and the remote alarm output. The +5 V output on the host port connector is regulated by internal supply.

Environmental

  • Operating Temperature: + 41°F to + 104°F (+ 5°C to + 40°C)
  • Operating Atmospheric Pressure: 700 hPa to 1060 h

Storage / Transportation

  • Storage Temperature: – 4°F to + 122°F (– 20°C to + 50°C)
  • Atmospheric Pressure: 500 hPa to 1060 hPa
  • Humidity Range: 5% to 95% non-condensing
  • Radio Frequency: Complies with IEC Publication 60601-1-2 (2001) Medical Electrical Equipment, Electromagnetic Compatibility Requirements and Tests, and CISPR 11 (Group 1, Class B) for radiated and conducted emissions.

Printer

  • Printer Type: Thermal dot array
  • Resolution: 384 dots/inch horizontal
  • Paper Type: The paper roll used by the printer must be compatible with GE PN 770137.
  • Languages Printed: English, German, French, Italian, Spanish, Portuguese (Brazil and Portugal), Hungarian, Polish, Czech, Finnish, Swedish, Danish, Dutch, Norwegian, and Slovak.
  • Languages Not Printed: (text printed in English only) Russian, Greek, Korean, and Japanese.

NIBP

  • Cuff Pressure Range (Normal operating range):
    • 0 to 290 mmHg (adult/ped
    • 0 to 145 mmHg (neonate)
  • Blood Pressure Accuracy (Classic and Auscultatory): Meets ANSI/AAMI standard SP-10:1992 (mean error = 5 mmHg, standard deviation = 8 mmHg).
  • Blood Pressure Accuracy: Meets ANSI/AAMI standard SP-10:2002 (mean error = 5 mmHg, standard deviation = 8 mmHg).
  • Maximum Determination: 120 s (adult/ped) 85 s (neonate)
  • Overpressure Cutoff: 300 to 330 mmHg (adult/ped) and 150 to 165 mmHg (neonate).

BP Range (Classic and Auscultatory)

  • Systolic
    • 30 to 245 mmHg (adult/ped)
    • 40 to 140 mmHg (neonate)
  • MAP
    • 15 to 215 mmHg (adult/ped)
    • 30 to 115 mmHg (neonate)
  • Diastolic
    • 10 to 195 mmHg (adult/ped)
    • 20 to 100 mmHg (neonate)

BP range

  • Systolic
    • 30 to 290 mmHg (adult/ped)
    • 30 to 140 mmHg (neonate)
  • MAP
    • 20 to 260 mmHg (adult/ped)
    • 20 to 125 mmHg (neonate)
  • Diastolic
    • 10 to 220 mmHg (adult/ped)
    • 10 to 110 mmHg (neonate)
  • Pulse rate range (Classic and Auscultatory)
    • 30 to 200 beats/min (adult/ped)
    • 30 to 220 beats/min (neonate)
  • Pulse rate range (SuperSTAT)
    • 30 to 240 beats/min (adult/ped)
    • 30 to 240 beats/min (neonate)
  • Pulse rate accuracy ± 3.5% or 3 bpm

Ohmeda TruSignal SpO2 Measurement Range

  • SpO2: 1 to 100%
  • Pulse Rate: 30 to 250 bpm
  • Perfusion Range: 0.03 to 20%

Ohmeda TruSignal SpO2 Accuracy

  • Saturation
    • Adult: 70 to 100% ±2 digits whichever is greater, (without motion)
    • Neonate: 70 to 100% ±3 digits (without motion)
    • Adult/Neonate: 70 to 100% ±3 digits (during clinical motion)
    • Low perfusion: 70 to 100% ±2 digits (during clinical low perfusion)
  • Pulse rate
    • Adult /Neonate: 30 to 250 bpm: ± 2 digits or ± 2%, whichever is greater, (without motion) 30 to 250 bpm: ± 5 digits (during motion)
    • Low perfusion: 30 to 250 bpm: ± 3 digits

Nellcor Oximax SpO2 Measurement Range

  • SpO2: 1 to 100%
  • Pulse Rate: 20 to 250 bpm
  • Perfusion Range: 0.03 to 20%

Nellcor Oximax SpO2 Accuracy

  • Saturation
    • Adult: 70 to 100% ±2 digits whichever is greater, (without motion)
    • Neonate: 70 to 100% ±3 digits (without motion)
    • Low perfusion: 70 to 100% ±2 digits (during clinical low perfusion)
  • Pulse rate
    • Adult /Neonate: 40 to 250 bpm: ± 3 digits
    • Low perfusion: 40 to 250 bpm: ± 3 digits

Masimo SET SpO2 Measurement Range

  • SpO2: 1 to 100%
  • Pulse Rate: 25 to 250 bpm
  • Perfusion Range: 0.2 to 20%

Masimo SET SpO2 Accuracy

  • Saturation
    • Without Motion – adult/pediatric: 70 to 100% ± 2 digits
    • Without Motion – neonate: 70 to 100% ± 3 digits
    • With Motion – adult/pediatric/neo: 70 to 100% ± 3 digits
    • Low perfusion:
      • 70 to 100% ± 2 digits
      • 0 to 69% unspecified
  • Pulse rate
    • Without Motion: 25 to 240 bpm ±3 digits
    • With Motion: normal physiologic range 25 to 240 bpm ±5 digits

Alaris Turbo Thermometer Temperature

  • Scale: °Fahrenheit (F)°; °Celsius (C)
  • Range
    • Predictive mode Max: 41.1°C; 106.0°F; Min: 35.6°C; 96.0°F
    • Monitor mode: Max: 41.1°C; 106.0°F; Min: 26.7°C; 80.0°F
  • Monitor Mode Accuracy: ±0.1°C; ±0.2°F (when tested in a calibrated liquid bath; meets ASTM E1112, Table 1, in range specified)
  • Determination Time (approx.): 10 seconds, typical

Battery

  • Capacity: 6V; 3.3 Ahr sealed lead acid battery
  • Battery Life
    • 8.1 hours (standard deviation of 0.46) with a usage scenario of NIBP determinations every 15 minutes with SpO2 and temperature active.
    • 11.5 hours (standard deviation of 0.53) non-SpO2 versions with a usage scenario of NIBP determinations every 15 minutes with temperature active.
  • Charge Time (Approx.): 5 hours from full discharge when the monitor is off Approx. 8 hours when the monitor is on.

Refurbished GE Dinamap Carescape V100 Patient Monitors

Soma Tech Intl offers GE Carescape V100 vital signs monitor up to 50% below OEM prices with the same service and warranty as new. The V100 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the vital signs monitor, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on patient monitors. If necessary, parts are replaced to make sure that all aspects of the Carescape V100 are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the Carescape V100 is working the same way that it originally left the manufacturer. After the Carescape V100 monitor is working like new it undergoes a special cosmetic restoration process. The patient monitor is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Dinamap Carescape V100 is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Carescape V100 contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a Dinamap V100. If you or your facility is looking to sell your Carescape V100, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Dinamap Carescape V100 to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Tech Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
