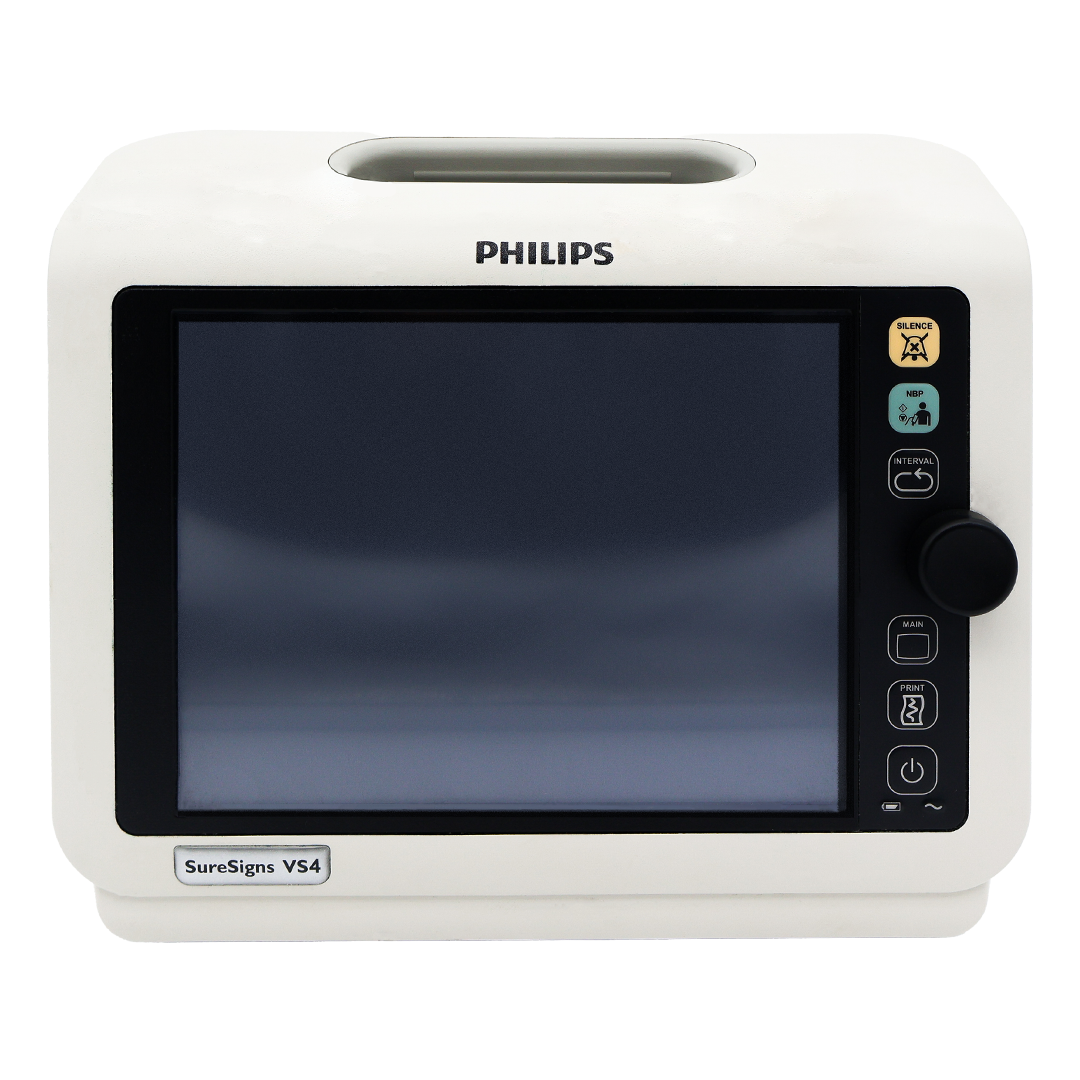

Philips SureSigns VS4 Monitor

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Philips SureSigns VS4 Features

Get more from vital signs monitoring with the Philips SureSigns VS4. Respond to changing patient conditions by having the versatility to choose between NBP interval mode and spot check mode in the same device. Simplify clinician workflow with an intuitive touch-screen interface and tools like QuickCapture and QuickCheck. Wireless capability and the proactive monitoring tool QuickAlert support your hospital’s Rapid Response team. The VS4 is simple to use and works easily with your existing network. It provides you with peace of mind and flexibility — all in a package that’s as easy to love as it is to use.

  • Touch screen – color LED backlit screen.
  • Internal WiFi / 802.11 a/b/g option.
  • Additional ease-of-use enhancements for your IT and network informatics teams and your caregivers.
  • The 2D bar-code scanner is programmable for multiple ID fields.
  • Time-sync with the hospital or network clock.
  • Improved battery management, including a clearly visible icon to show the unit is plugged in and charging.
  • Confirmation of exported records is easily seen in green.
  • Clearly identifiable one-touch NBP on/off button.
  • Stores up to 800 patient records.

Philips SureSigns VS4 NIBP Monitor Specifications

Dimensions

  • Size: W: 26 cm (10.2”), H: 22 cm (8.6”), D: 14.5 cm (5.7”)
  • Weight: 3.1 kg (6.9 lb) – excluding optional recorder

Screen

  • 8.4” SVGA TFT-AM LCD display, 800 active pixels/line.
  • Resolution: 600 active lines per frame. Viewing angle ±60 degrees

NBP

    • Oscillometric using stepwise deflation pressure – NBP interval choices
    • Adult Measurement Range: – Systolic: 30–270 mmHg (4.0–36.0 kPa) – Diastolic: 10 –245 mmHg (1.3–32.7 kPa) – MAP: 20–225 mmHg (2.7–34.0 kPa)
    • Pediatric Measurement Range: – Systolic: 30–180 mmHg (4.0–24.0 kPa) – Diastolic: 10–150 mmHg (1.3–20.0 kPa) – MAP: 20–160 mmHg (2.7–21.3 kPa)
    • Neonatal Measurement Range: – Systolic: 30–130 mmHg (4.0–17.0 kPa) – Diastolic: 10–100 mmHg (1.3–13.3 kPa) – MAP: 20–120 mmHg (2.7–16.0 kPa)
    • The NBP measurement has an accuracy over the ranges

listed for the values: – Maximum Standard Deviation: 8 mmHg – Maximum Mean Error: ±5 mmHg

  • Subsequent Cuff Inflation (in NBP Interval mode only): – The subsequent inflation pressure is determined automatically, depending on the previous measurement and patient type



Sp02

  • Meets EN ISO 9919 standard
  • Measurement Range: 0–100%
  • Pulse Rate Measurement range: 30–300 pbm
  • Accuracy: Depends on Sensor

Temperature Welch Allyn Predictive

  • Modes: Predictive and Monitored
  • Probe sites: Oral, Rectal, or Axillary
  • Range: 26.7–43.3°C (80–110°F)
  • Accuracy: ±0.1°C (±0.2°F) in monitoring mode

Temperature Covidien Tympanic

  • Tympanic Thermometer – an ear canal thermometer for neonates, newborns, children, and adults
  • Probe sites: Oral, Rectal, or Axillary
  • Equivalency modes: Ear (no adjustment), Oral (adjusted from ear), Core (adjusted from ear), and Rectal (adjusted from ear)
  • Range: 33°C–42.0°C (91.4°F–107.6°F)
  • Accuracy (overall range) : ±0.2°C (36.7–38.9); Display resolution: 0.1°C or 0.1°F
  • Measurement response time: =2 seconds

Battery

  • Lithium-ion: 10.8–11.1V (with a “202” form factor)
  • Operating time: 4 hours with NBP every 15 minutes.

Data Output

  • HL7 format, via Ethernet port
  • Serial data

Patient Type

  • Adult, Pediatric, Neonata

Refurbished Philips SureSigns VS4 Monitor

Soma Tech Intl offers Philips SureSigns VS4 Monitors
up to 50% below OEM prices with the same service and warranty as new. The Philips VS4 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Philips VS4, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on NIBP Monitors. If necessary, parts are replaced to make sure that all aspects of the Philips SureSigns VS4 are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Philips SureSigns VS4 is working like new it undergoes a special cosmetic restoration process. The Philips SureSigns VS4 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Philips SureSigns VS4 is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Philips SureSigns VS4 Monitor contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a Philips SureSigns VS4
If you or your facility is looking to sell your Philips SureSigns VS4, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Philips SureSigns VS4 to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
