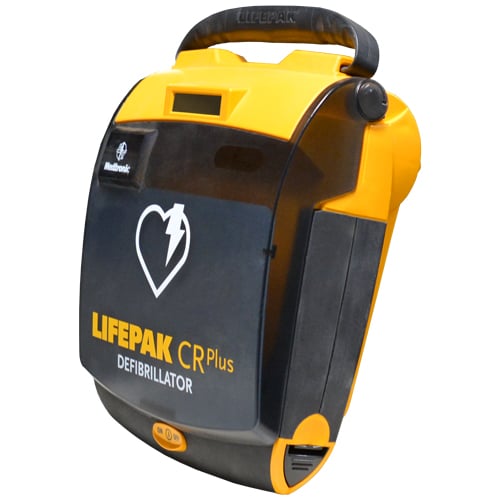

Stryker Physio-Control Lifepak CR Plus

Quotes in less than 24 hours Download Specifications

Physio-Control Lifepak CR Plus Features

The Stryker Physio-Control Lifepak CR Plus is an AED that can be used on patients as small as 55 lbs or 8 years old with the Child Reduced Energy Electrodes. The CR Plus is an automatic external defibrillator that is used to treat sudden cardiac arrest. This Lifepak device delivers a biphasic truncated exponential defibrillation waveform using ADAPTIV Biphasic technology. Energy levels range from 150 to 360 joules. It can handle up to 30 full discharges on a fully charged battery.

  • 9-second charge time to 200 joules
  • 15-second charge time to 360 joules
  • Wireless data transfer to a computer
  • .5-pounds

Stryker Lifepak CR Plus Specifications


  • Height: 4.2” (10.7 cm)
  • Width: 8” (20.3 cm)
  • Depth: 9.5” (24.1 cm)
  • Weight: 4.5 lbs (2 kg)


  • Waveform: Biphasic Truncated Exponential
  • Output Energy: 150 joules to 360 joules
  • Shock Advisory System: An ECG analysis system that advises whether a shock is appropriate
  • Device Capacity: 30 full discharges or 210 minutes of “ON time”
  • Shock Charge Time: 200 joules in less than 9 seconds; 360 joules in less than 15 seconds.

CHARGE-PAK Battery Charger

  • Type: Li/SO2Cl2 Lithium Sulfuryl Chloride, 11.7V, 1.4 amp-hours.
  • Replacement: Replace after each use or when the CHARGE-PAK indicator is visible (typically after 2 years)
  • Weight: 80.5 grams (0.18 lb)

Device Capacity

  • Typical: Thirty (30) full discharges or 210 minutes of “on time” with a fully charged device.
  • Minimum: Twenty (20) full discharges or 140 minutes of “on time” with a fully charged device.
  • Shock Charge Time: Charge times with a fully charged device: 200 joules in less than 9 seconds, 360 joules in less than 15 seconds.
  • System Recharge Times: Recharge times with a fully discharged device: Able to deliver 6 shocks or provide 42 minutes of operating time after 24 hours of recharge time and 20 shocks or 140 minutes of operating time after 72 hours of recharge time with a new CHARGEPAK at temperatures above 15° C (59° F).


  • Lid Release/ON-OFF—Controls device power.
  • SHOCK button (semi-automatic version)—delivers defibrillation energy. After electrodes are attached to a patient, the fully automatic version of the device delivers a shock, if appropriate, not requiring operator intervention.

User Interface

  • User Interface: The user interface includes voice prompts, audible tones and graphic prompts.
  • Readiness Display: The readiness display shows the device status.
  • OK Indicator: Shows “OK” when the last self-test was completed successfully. When the “OK” indicator is visible, all other indicators are not visible. The “OK” indicator is not displayed during device operation.
  • CHARGE-PAK Indicator: When displayed, replace the CHARGE-PAK battery charger.
  • Attention Indicator: When first displayed, at least six (6) discharges or 42 minutes of operating time remain.
  • Service Indicator: Service required when displayed.

Default Settings

  • Energy Sequence: The energy sequence is set to 200J, 300J, 360J.
  • Motion Detection: The motion detection system is set to on during analysis.
  • Energy Protocol: The energy protocol is set to increase energy only after a lower energy shock was unsuccessful.
  • Stack Shocks: Stack shocks option is set to off. Turn-On Prompt: The turn-on prompt is set to provide voice prompts upon power on.
  • CPR Time: The CPR Time is set to 120 seconds.
  • Voice Prompt Volume: The voice prompt volume is set to high.

Data Storage

  • Memory Type: Internal digital memory.
  • ECG Storage: Dual patient data storage. Minimum 20 minutes of ECG stored for the current patient, summarized data stored for the previous patient.
  • Report Types
    • Continuous ECG – A continuous patient ECG report.
    • Continuous Summary Report – A summary of critical resuscitation events and ECG waveform segments associated with these events.
    • Event Log report – A report of time-stamped markers, which reflect operator and device activity.
    • Test Log report – A device self-test activity report.
  • Capacity: Minimum 200 time-stamped event log markers.
  • Communications: Wireless transfer to a personal computer.
  • Data Review: Physio-Control provides an array of tools to meet customer needs for data viewing and analysis.


  • Operating Temperature: 0° to +50°C (+32° to +122°F).
  • Long-term storage temperature: +15° to +35°C (59° to 95°F)
  • Short-term storage temperature: -40° to +70°C (-40° to 158°F) for a maximum of one week.
  • Atmospheric Pressure: 760 mmHg to 429 mmHg, 0 to 15,000 feet above sea level.
  • Relative Humidity: 5 to 95% (non-condensing).
  • Water Resistance: IEC60529/EN60529 IPX4 “Splash proof” with electrodes connected, CHARGE-PAK installed.

Refurbished Stryker Physio-Control Lifepak CR Plus AED

Soma Tech Intl offers Refurbished Stryker Physio-Control Lifepak CR Plus up to 50% below OEM prices with the same service and warranty as new. The Stryker Lifepak CR Plus is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Stryker AED, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on Lifepak CR Plus. If necessary, parts are replaced to make sure that all aspects of the device are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the AED System is working like new it undergoes a special cosmetic restoration process. The Physio-Control Lifepak AED is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Stryker AED is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Stryker CR Plus contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a Stryker Physio-Control Lifepak CR Plus. If you or your facility is looking to sell your CR Plus, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Stryker Physio-Control Lifepak CR Plus to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
