Drager Fabius MRI

Quotes in less than 24 hours Download Specifications

Drager Fabius MRI Features

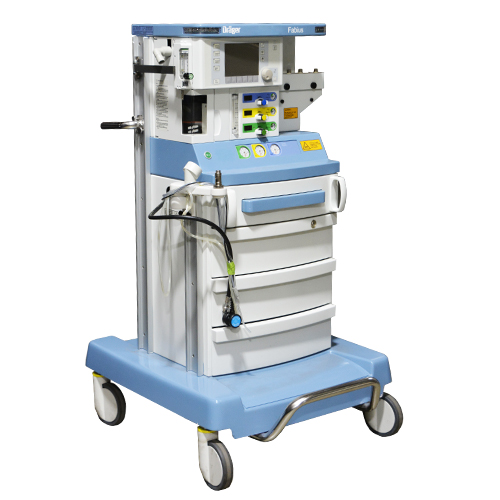

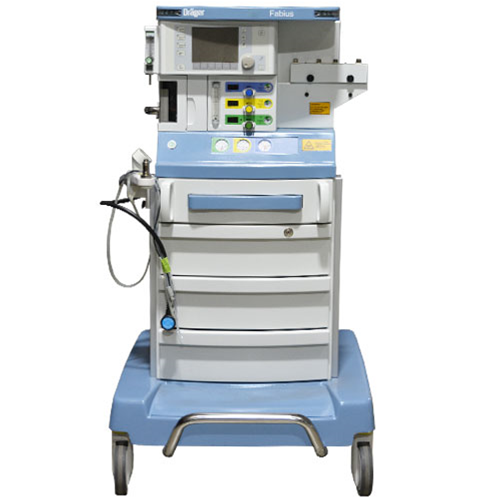

The Drager Fabius MRI is an anesthesia machine that is compatible with MRI Machines. It can be used with MRI Systems of 1.5 and 3 Tesla. The Fabius MRI offers a variety of ventilation modes including volume and pressure. The Drager MRI Anesthesia Machine comes with an E-vent piston-controlled ventilator – this can deliver a maximum peak flow of ventilation and does not require a drive gas. The anesthesia Machine has a large, high-visibility color screen along with an integrated warning and alarm LED system.

  • High visibility color screen.
  • Integrated Warning and alarm LEDs.
  • 2 vaporizer mount.
  • Pressure gauges for pin index gas cylinders.
  • Dräger Sob CLIC absorber.
  • Anesthetic Gas Scavenging System.
  • 3 Large drawers, 1 with lock.
  • Central brake.
  • Compact Breathing System.
  • E-vent piston Ventilator.


Dräger Fabius MRI Specifications

Base Unit

  • Trolley Version (Cart) with COSY: Dimensions (W × H × D): approximately 39 × 55 × 35.5 in. (99 × 140 × 90 cm)
  • Fabius MRI Trolley (with COSY) Weight and load without supplementary cylinders and vaporizers: 365 lbs. (165.8 kg)

Power and Battery Backup

  • Power Input: 100 to 240 VAC, 50 / 60 Hz, 70 VA, including additional power outlets.
  • Operation time with fully charged batteries: > 45 min.

Anesthesia Gas Supply Module

  • Range of fresh gas flow indicators: 0.0 to 12.0 L/min Total fresh gas flowmeter 0 to 10 L/min.
  • O2 flush: at 87 psi (6 bar): max 75 L/min; at 41 psi (2.8 bar): min. 25 L/min.
  • Vaporizer: 2 positions Dräger mount (Interlock 2 – System): Dräger Isoflurane Vapor 2000, Dräger Sevoflurane Vapor 2000, Dräger Halothane Vapor 2000, Dräger Enflurane Vapor 2000.

Ventilator Operating Specifications

  • Ventilator E-vent: Electronically controlled, electrically driven.
  • Operating modes: Volume Controlled Ventilation, Pressure Controlled Ventilation, Pressure Support, SIMV/PS, Manual Ventilation, Spontaneous Breathing.

Control Input Ranges

  • Breathing Frequency (rate): 4 to 60 bpm.
  • Positive End Expiratory Pressure (PEEP): 0 to 20 cmH2O (hPa).
  • Inspiration/expiration ratio (Ti: Te): 4:1 to 1:4.
  • Pressure limiting (Pmax): 15 to 70 cmH2O (hPa).
  • Tidal Volume (Vt): 20 to 1400 mL in Volume Control, 20 to 1100 mL in SIMV/PS.
  • Inspiration pause (Tip: Ti): 0 to 50 %.
  • SIMV Inspiratory time: 0.3 – 4.0 sec.
  • Inspiratory pressure (Pinsp): PEEP + 5 to 65 cmH2O (hPa).
  • Inspiratory Flow (InspFlow): 10 to 75 L/min in Volume and Pressure Control modes, 10 to 85 L/min in Pressure Support and SIMV/PS modes.
  • Pressure Support Level (PPS): PEEP + 3 to 20 cmH2O (hPa) Min. frequency for apnoe-ventilation (Freq. Min.) 3 to 20 bpm and “OFF”.

Refurbished Drager Fabius MRI Anesthesia Machine

Soma Tech Intl offers Drager Fabius MRI Anesthesia Machines up to 50% below OEM prices with the same service and warranty as new. The Drager Fabius is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the anesthesia machine, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on anesthesia machines. If necessary, parts are replaced to make sure that all aspects of the anesthesia machine are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Drager anesthesia machine is working like new it undergoes a special cosmetic restoration process. The Drager Fabius MRI is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Fabius MRI is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Drager Fabius MRI contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a Drager Fabius MRI anesthesia machine. If you or your facility is looking to sell your anesthesia machine, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Drager Fabius MRI to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
