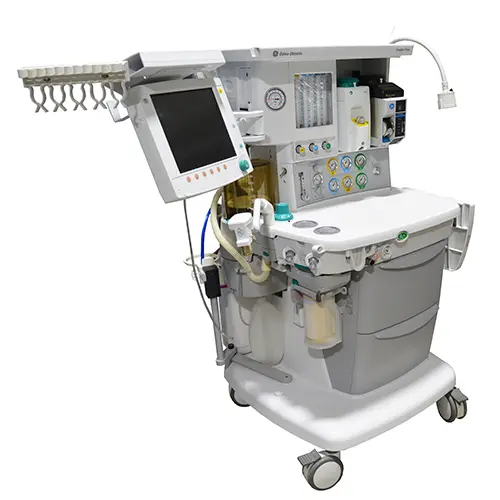

GE Datex-Ohmeda Aespire View

Quotes in less than 24 hours Download Specifications

GE Datex-Ohmeda Aespire View Features

The GE Datex Ohmeda Aespire View is compact, and durable, with easy-to-clean surfaces. It comes with a 12-inch ventilation display that showcases waveforms and alarm indicators. The Aespire offers both anesthesia gases and ventilation at the same time. The Aespire View

uses the GE SmartVent 7900 as the ventilator system for the anesthesia machine. The ventilation system makes it easy to minimize the space in the ICU or operating room by combining the Ventilator and the anesthesia machine in one. The Aespire View also comes standard with GE’s advanced Breathing System (ABS). This allows the anesthesia machine to work with low circuit volumes as well as low-flow anesthesia.

  • Small breathing system volume rapidly responds to fresh gas changes with the ABS (Advanced Breathing System).
  • Fewer parts to help prevent unwanted disconnects and leaks.
  • Bag-to-vent switch works without electronics in case of power failure.
  • Autoclavable and latex-free surfaces.
  • Optional EXChange and condenser.
  • Extra large work surface area.
  • Two storage drawers.


GE Datex-Ohmeda Aespire View Specifications


  • Height: 53.5 in (136 cm)
  • Width: 29.5 in (75 cm)
  • Depth: 29.1 in (74 cm)
  • Weight: approximately 300 lbs (136 kg)

Ventilation Operating Modes

  • VCV
  • PCV
  • PSVPro with Apnea backup
  • PCV-VG

Ventilator (VT) Parameter Ranges

  • Tidal volume range: 20 to 1500 mL (Volume Control SIMV/PSV and PCV-VG modes); 5 to 1500 mL (Pressure Control Mode)
  • Incremental settings: 20 to 50 mL (increments of 1 mL); 50 to 100 mL(increments of 5 mL); 100 to 300 mL (increments of 10 mL); 300 to 1000 mL (increments of 25 mL); 1000 to 1500 mL (increments of 50 mL)
  • Minute volume range: 0 to 99.9 L/min
  • Pressure (PInspired) range: 5 to 60 cm H2O (increments of 1 cm H2O)
  • Pressure (Plimit) range: 12 to 100 cm H2O (increments of 1 cm H2O)
  • Pressure (Psupport) range: Off, 2 to 40 cm H2O (increments of 1 cm H2O)
  • Rate: 4 to 100 breaths per minute for PCV-VG, Volume Control, and Pressure Control vent modes. 2 to 60 breaths per minute for SIMV/PSV, PSVPro, and SIMV vent modes (increments of 1 breath per minute).
  • Inspiratory/expiratory ratio: 2:1 to 1:8 (increments of 0.5)
  • Inspiratory time: 0.2 to 5.0 seconds (increments of 0.1 seconds) (SIMV and PSVPro vent modes)
  • Trigger window: 0 to 80% (increments of 5%)
  • Flow trigger: 0.2 to 1.0 L/min (increments of 0.2 L/min); 1 to 10 L/min (increments of 0.5 L/min)
  • Inspiration termination level: 5 to 75% (increments of 5%)
  • Backup mode delay: 10 to 30 seconds (increments of 5 seconds)

Positive End Expiratory Pressure (PEEP)

  • Type: Integrated, electronically controlled
  • Range: OFF, 4 to 30 cm H2O (increments of 1 cm H2O)

Ventilator performance

  • Pressure range at inlet: 240 kPa to 700 kPa; 35 psig to 100 psig
  • Peak gas flow: 120 L/min + fresh gas flow
  • Flow valve range: 1 to 120 L/min

Ventilator monitoring

  • Expiratory minute volume range: 0 to 99.9/min
  • Expiratory tidal volume range: 0 to > 1500 mL
  • O2%: < 5 to 110%
  • Peak pressure: –20 to 120 cm H2O
  • Mean pressure: –20 to 120 cm H2O
  • Plateau pressure: 0 to 120 cm H2O
  • Pressure waveform sweep speed: 4 to 25 breaths per minute (0 to 16 seconds); 26 to 75 breaths per minute (0 to 8 seconds); 75 breaths per minute (0 to 4 seconds)

Delivery and Monitoring Accuracy

  • Volume delivery: > 210 mL = better than 7%; < 210 mL = better than 15 mL; < 60 mL = better than 10 mL
  • Pressure delivery: ±10% or ±3 cm H2O
  • PEEP delivery: ±1.5 cm H2O
  • Volume monitoring: > 210 mL = better than 9%; < 210 mL = better than 18 mL; < 60 mL = better than 10 mL
  • Pressure monitoring: ±5% or ±2 cm H2O

Operating Environmental Specifications

  • Temperature: 10° to 40°C/50° to 104°F
  • Humidity: 15 to 95% relative humidity
  • Altitude: –440 to 3565 m/500 to 800 mmHg

Storage Environmental Specifications

  • Temperature: –25° to 65°C/–13° to 149°F
  • Humidity: 15 to 95% relative humidity
  • Altitude: –440 to 5860 m/375 to 800 mmHg
  • Oxygen cell storage: –15° to 50°C/5° to 122°F; 15 to 95% relative humidity; 500 to 800 mmHg

Refurbished GE Datex Ohmeda Aespire View Anesthesia Machine

Soma Tech Intl offers GE Datex Ohmeda Aespire View anesthesia machines up to 50% below OEM prices with the same service and warranty as new. The GE Datex Ohmeda Aespire View is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Aespire View, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on anesthesia machines. If necessary, parts are replaced to make sure that all aspects of the anesthesia machine functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the GE Datex Ohmeda Aespire View is working like new it undergoes a special cosmetic restoration process. The GE Datex Ohmeda Aespire View is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the GE Datex Ohmeda Aespire View Anesthesia machine is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished GE Datex Ohmeda Aespire View anesthesia machines
contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a GE Datex Ohmeda Aespire View. If you or your facility is looking to sell your GE Datex Ohmeda Aespire View Anesthesia Machine, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned GE Datex Ohmeda Aespire View to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
